Ordercode: 51TS12DN48XF

Article luminaire insert
Product name Licross® 11 Protected MO
Lamp LED
Rated luminous flux 8470lm
Luminous efficacy 151lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 56W
Service life 100000h (L80/B50) at AT = 25°C
Protection rating IP50
Impact resistance IK06
Weight 3.2kg

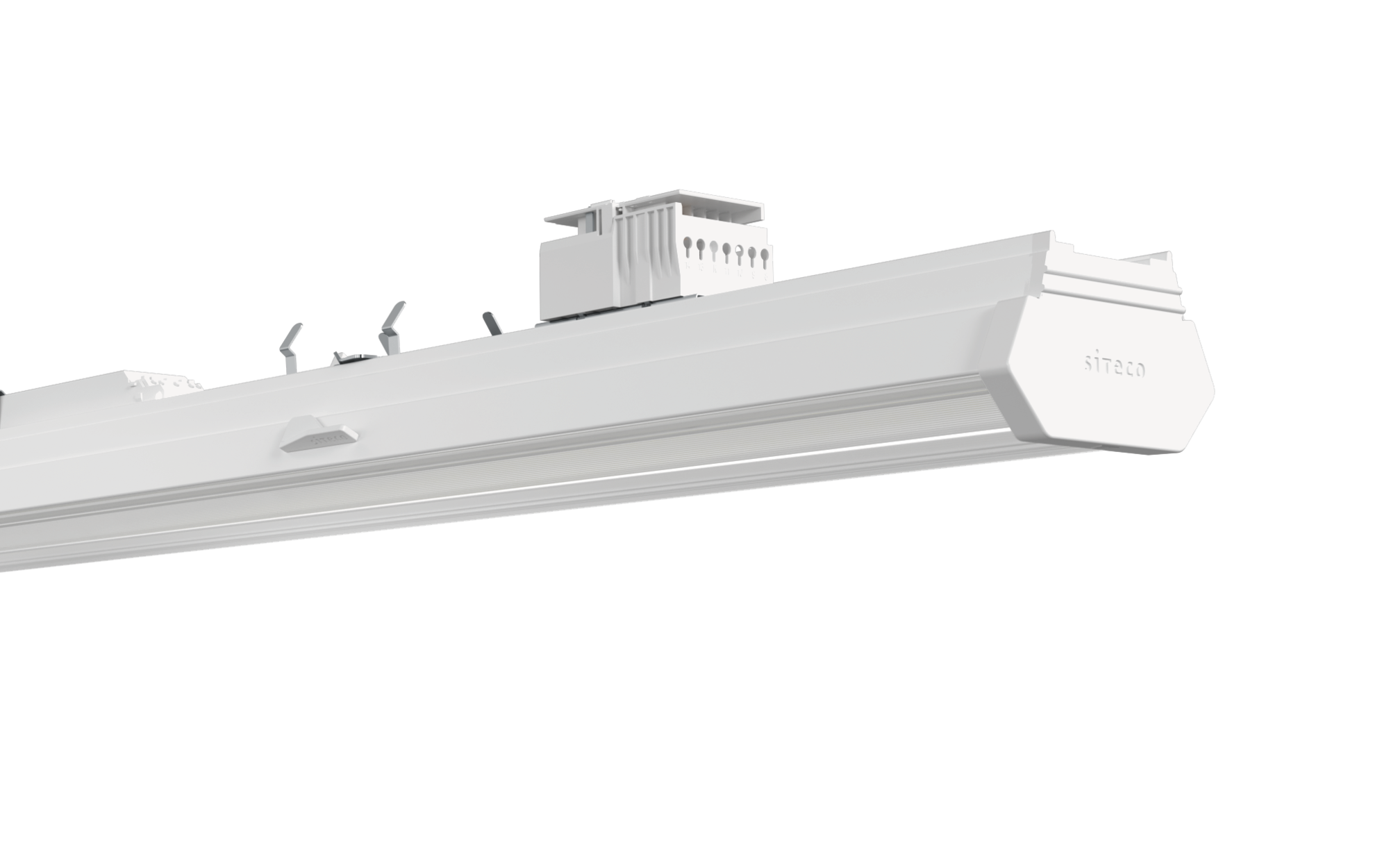

Licross® 11 Protected MO, luminaire insert, of sheet steel, galvanised, coil coated, white, length: 1.500mm, width: 90mm, height: 101mm, LED rated luminous flux: 8.470lm, light colour: 840, control gear: DALI 2, control gear: ECG DALI, with plug, 5-pole, with phase selection, mains connection: 220..240V, AC, 50/60Hz, rated input power: 56W, halogen-free wiring, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, protection symbol: D if used in an environment with non-conductive dust loads with corresponding accessories, impact resistance: IK06, permissible ambient temperature for indoor applications: -25..+40°C, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Product details


Key data

Product type luminaire insert
Product name Licross® 11 Protected MO
Order No. 51TS12DN48XF


Lighting technology

Cover cover

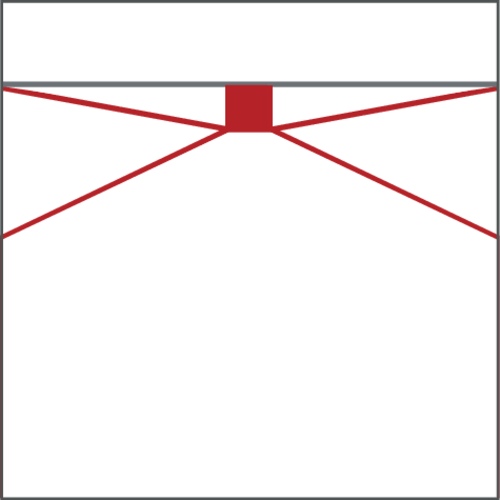

Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution


Lamps

Lamps with LED
Rated luminous flux 8470lm
Luminous efficacy 151lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 56W
Supplement halogen-free wiring


Operating device

Control gear ECG DALI
Control DALI 2


Certificates, Standards

Protection rating IP50
Insulation class insulation class I (protective earthing)
Impact resistance IK06
Protection symbol D if used in an environment with non-conductive dust loads with corresponding accessories
Temperature range (operation) -25..+40°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05
Certification, designation CE, ENEC, VDE, UKCA


Material, Colour

Licross® LED insert sheet steel, galvanised, coil coated, white
Colour specification white
Cover cover of PMMA


Mounting

Mounting method, mounting location slip-in mounting, in the Licross® trunking rail
Arrangement single/continuous arrangement
Supplement only suitable for indoor use


Electrical connection

Connection plug, 5-pole, with phase selection
Nominal voltage 220..240V, 50/60Hz, AC

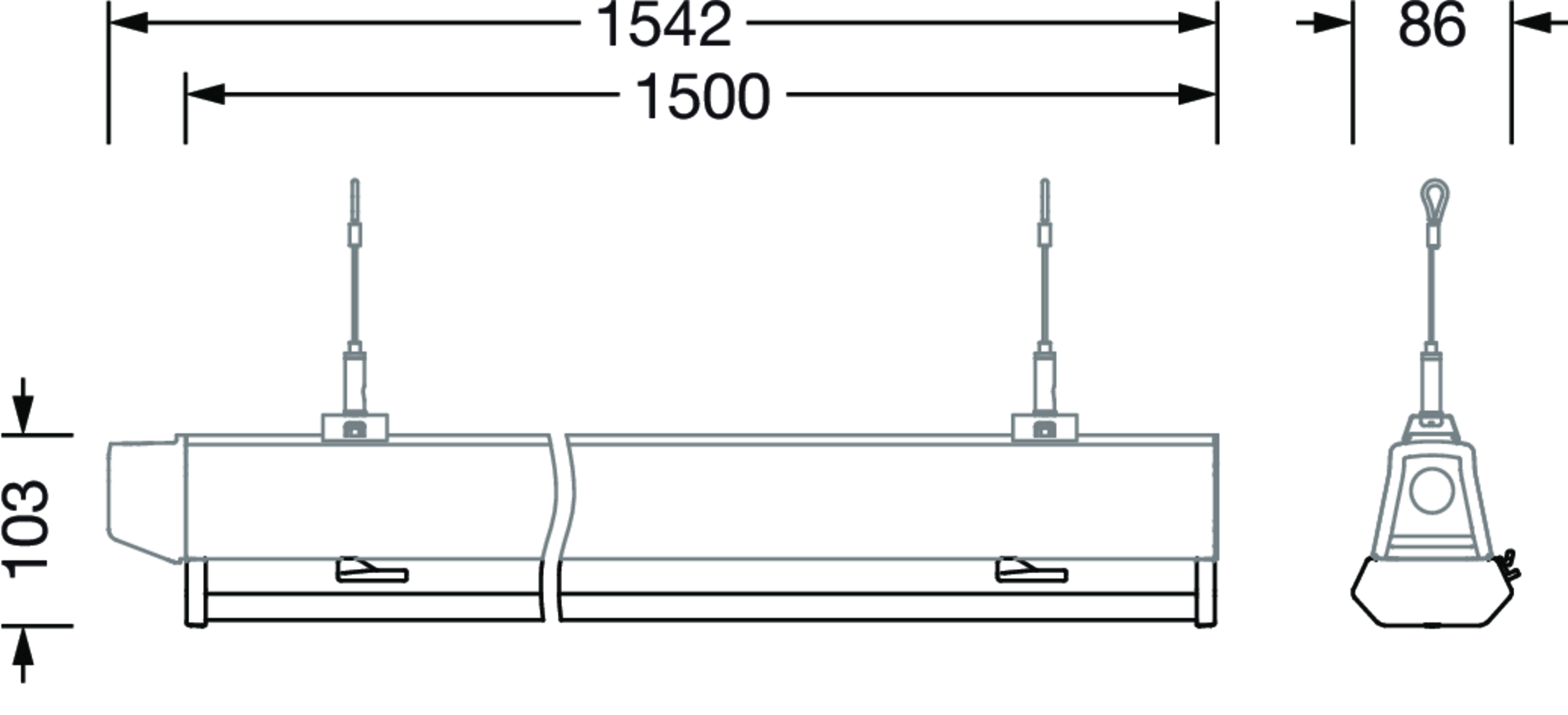

Dimensions, Weight

Length 1500mm
Width 90mm
Height 101mm
Weight 3.2kg


Service life

Rated service life 100000h (L80/B50) at AT = 25°C

Product type
luminaire insert

Product name
Licross® 11 Protected MO

Order No.
51TS12DN48XF

Cover
cover

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
8470lm

Luminous efficacy
151lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
56W

Supplement
halogen-free wiring

Control gear
ECG DALI

Control
DALI 2

Protection rating
IP50

Insulation class
insulation class I (protective earthing)

Impact resistance
IK06

Protection symbol
D if used in an environment with non-conductive dust loads with corresponding accessories

Temperature range (operation)
-25..+40°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05

Certification, designation
CE, ENEC, VDE, UKCA

Licross® LED insert
sheet steel, galvanised, coil coated, white

Colour specification
white

Cover
cover of PMMA

Mounting method, mounting location
slip-in mounting, in the Licross® trunking rail

Arrangement
single/continuous arrangement

Supplement
only suitable for indoor use

Connection
plug, 5-pole, with phase selection

Nominal voltage
220..240V, 50/60Hz, AC

Length
1500mm

Width
90mm

Height
101mm

Weight
3.2kg

Rated service life
100000h (L80/B50) at AT = 25°C

Photometric report / planning data

Photometric report / planning data

Lic11Pr
wd,8470lm840,DA2,IP50,L1500,wh
Ordercode: 51TS12DN48XF
