Ordercode: 51TS12DN48XFE

Article luminaire insert
Product name Licross® 11 Protected extreme MO
Lamp LED
Rated luminous flux 8470lm
Luminous efficacy 151lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 56W
Service life 100000h (L80/B50) at AT = ta max, 100000h (L85/B50) at AT = 25°C
Protection rating IP50
Impact resistance IK06
Weight 2.5kg

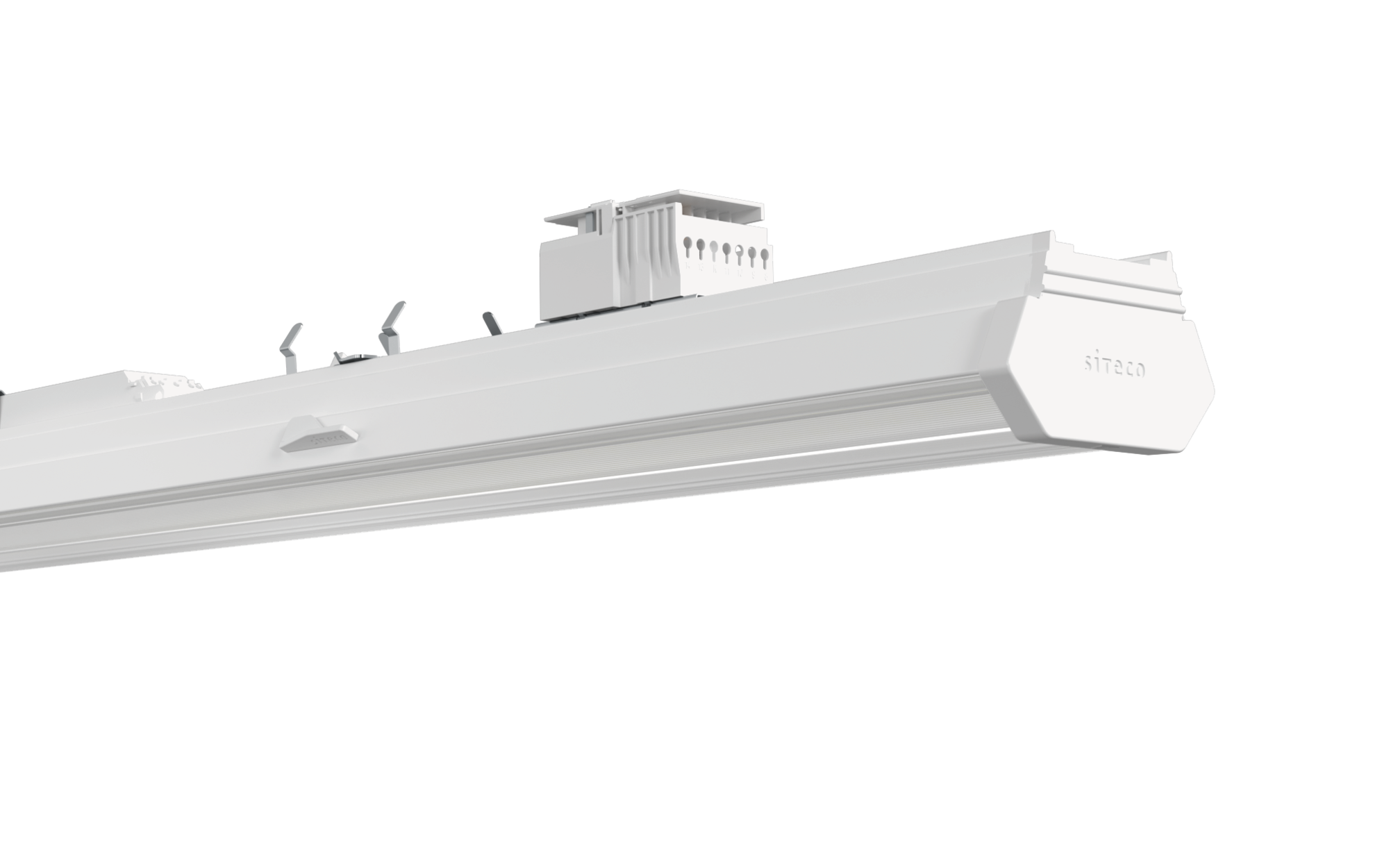

Licross® 11 Protected extreme MO, luminaire insert, of sheet steel, galvanised, coil coated, white, length: 1.500mm, width: 90mm, height: 101mm, LED rated luminous flux: 8.470lm, light colour: 840, control gear: DALI 2, control gear: ECG DALI, with plug, 5-pole, with phase selection, mains connection: 220..240V, AC, 50/60Hz, rated input power: 56W, halogen-free wiring, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, protection symbol: D if used in an environment with non-conductive dust loads with corresponding accessories, impact resistance: IK06, permissible ambient temperature for indoor applications: -25..+50°C, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Product details


Key data

Product type luminaire insert
Product name Licross® 11 Protected extreme MO
Order No. 51TS12DN48XFE


Lighting technology

Cover cover
Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution


Lamps

Lamps with LED
Rated luminous flux 8470lm
Luminous efficacy 151lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 56W
Supplement halogen-free wiring


Operating device

Control gear ECG DALI
Control DALI 2


Certificates, Standards

Protection rating IP50
Insulation class insulation class I (protective earthing)
Impact resistance IK06
Protection symbol D if used in an environment with non-conductive dust loads with corresponding accessories
Temperature range (operation) -25..+50°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05
Certification, designation CE, ENEC, VDE, UKCA


Material, Colour

Licross® LED insert sheet steel, galvanised, coil coated, white
Colour specification white
Cover cover of PMMA


Mounting

Mounting method, mounting location slip-in mounting, in the Licross® trunking rail
Arrangement single/continuous arrangement
Supplement only suitable for indoor use


Electrical connection

Connection plug, 5-pole, with phase selection
Nominal voltage 220..240V, 50/60Hz, AC

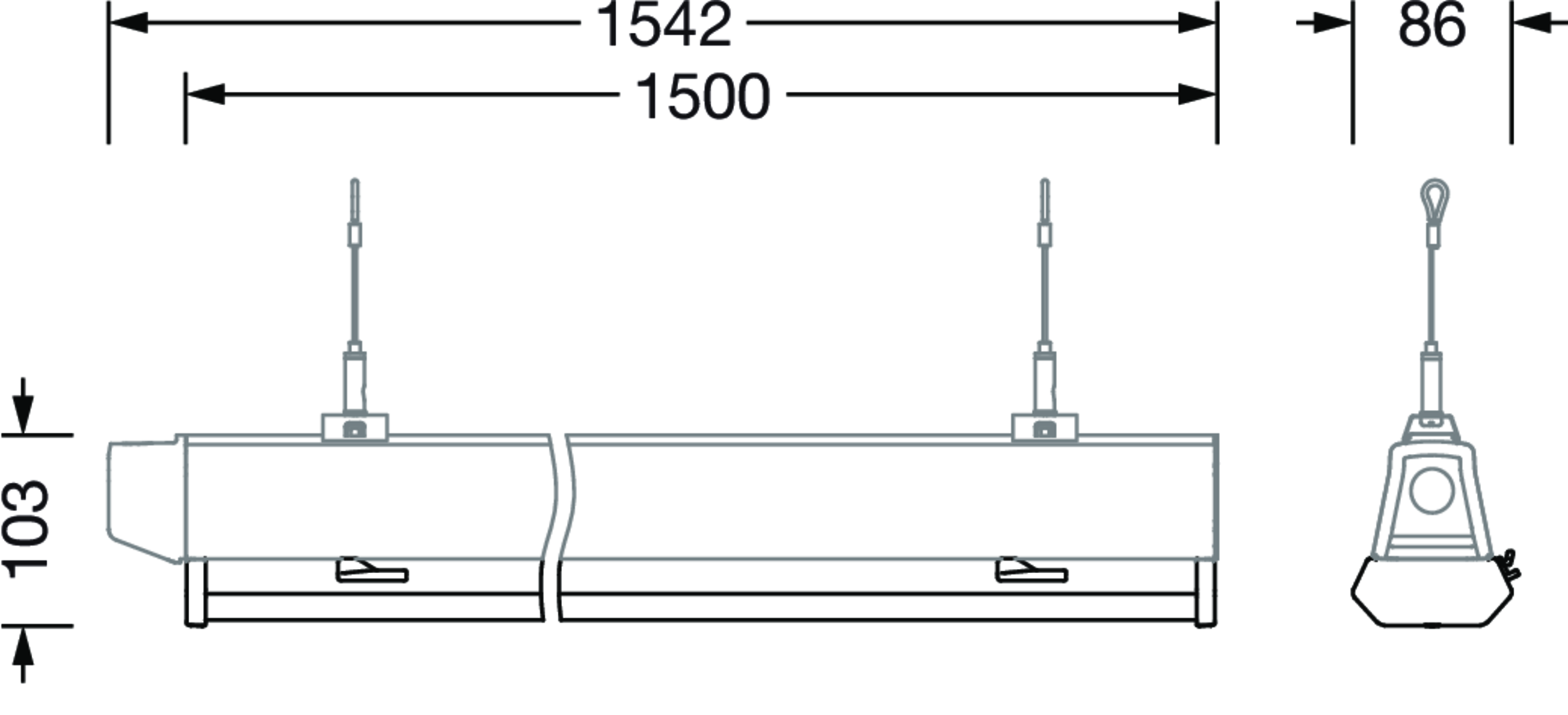

Dimensions, Weight

Length 1500mm
Width 90mm
Height 101mm
Weight 2.5kg


Service life

Rated service life 100000h (L80/B50) at AT = ta max, 100000h (L85/B50) at AT = 25°C

Product type
luminaire insert

Product name
Licross® 11 Protected extreme MO

Order No.
51TS12DN48XFE

Cover
cover

Beam angle
wide distribution

Symmetry
symmetric

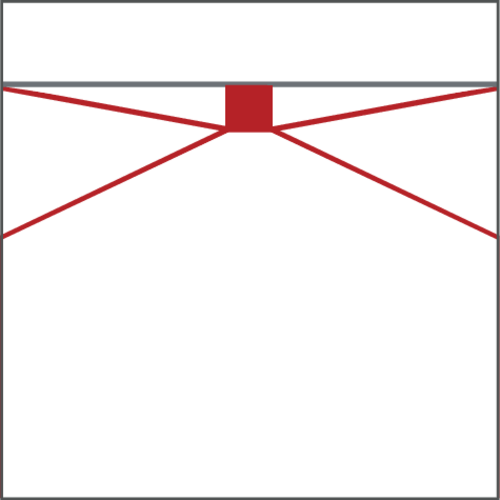

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
8470lm

Luminous efficacy
151lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
56W

Supplement
halogen-free wiring

Control gear
ECG DALI

Control
DALI 2

Protection rating
IP50

Insulation class
insulation class I (protective earthing)

Impact resistance
IK06

Protection symbol
D if used in an environment with non-conductive dust loads with corresponding accessories

Temperature range (operation)
-25..+50°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05

Certification, designation
CE, ENEC, VDE, UKCA

Licross® LED insert
sheet steel, galvanised, coil coated, white

Colour specification
white

Cover
cover of PMMA

Mounting method, mounting location
slip-in mounting, in the Licross® trunking rail

Arrangement
single/continuous arrangement

Supplement
only suitable for indoor use

Connection
plug, 5-pole, with phase selection

Nominal voltage
220..240V, 50/60Hz, AC

Length
1500mm

Width
90mm

Height
101mm

Weight
2.5kg

Rated service life
100000h (L80/B50) at AT = ta max, 100000h (L85/B50) at AT = 25°C

Photometric report / planning data

Photometric report / planning data

Lic11PrX
wd,8470lm840,DA2,IP50,L1500,wh
Ordercode: 51TS12DN48XFE
