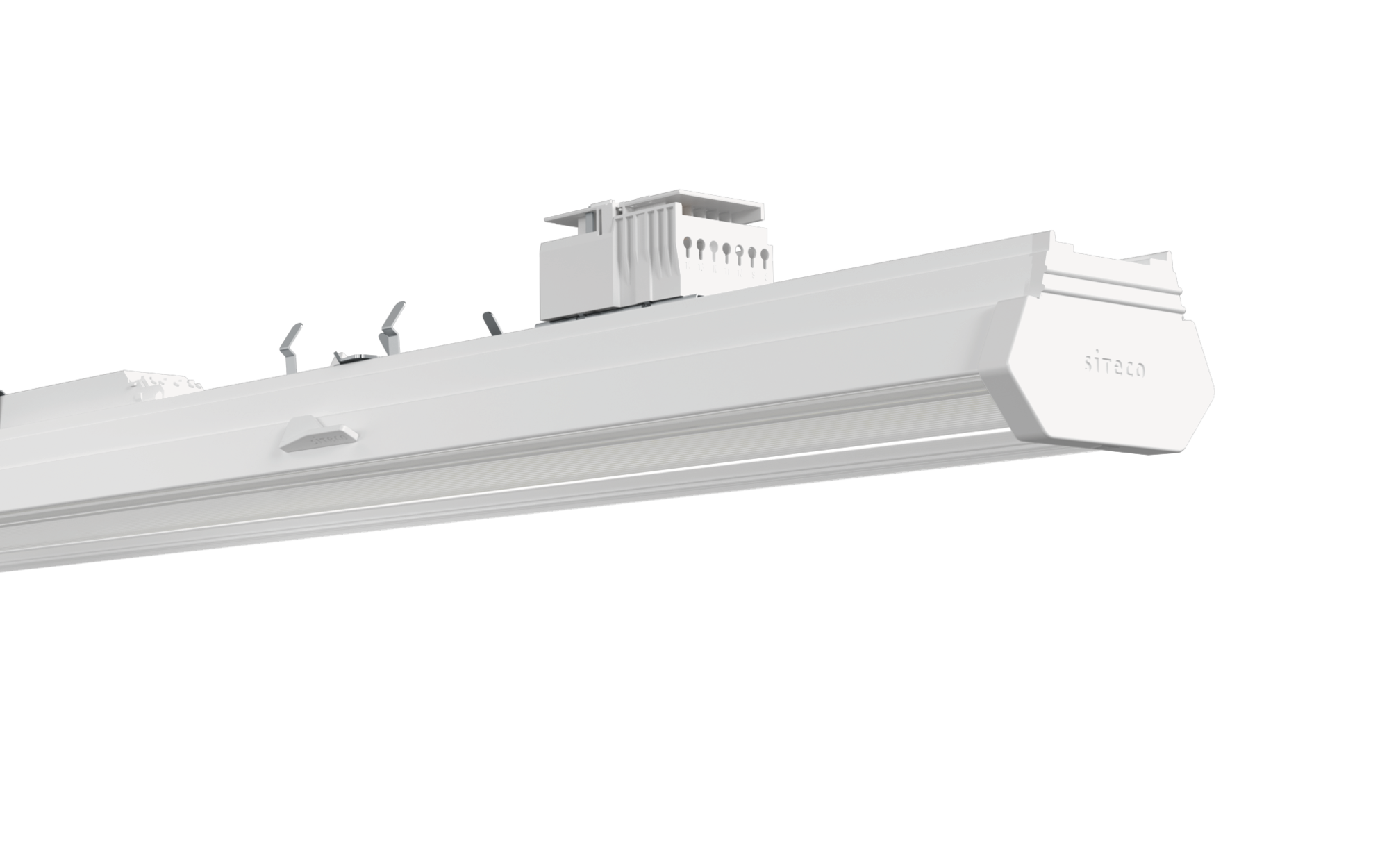

Licross® 11 Protected MO, with lever catch, symmetric wide distribution, IP50, AC/DC, operation on group/central battery

Ordercode: 51TS12VN465FD

Article luminaire insert
Product name Licross® 11 Protected MO
Lamp LED
Rated luminous flux 6530lm
Luminous efficacy 153lm/W
Colour temperature 4000K
Colour rendering CRI > 80
P_nom begin service life 43
P_nom end service life 50
Service life 100000h (L100/B50) at AT = 30°C
Protection rating IP50
Impact resistance IK06
Weight 2.8kg

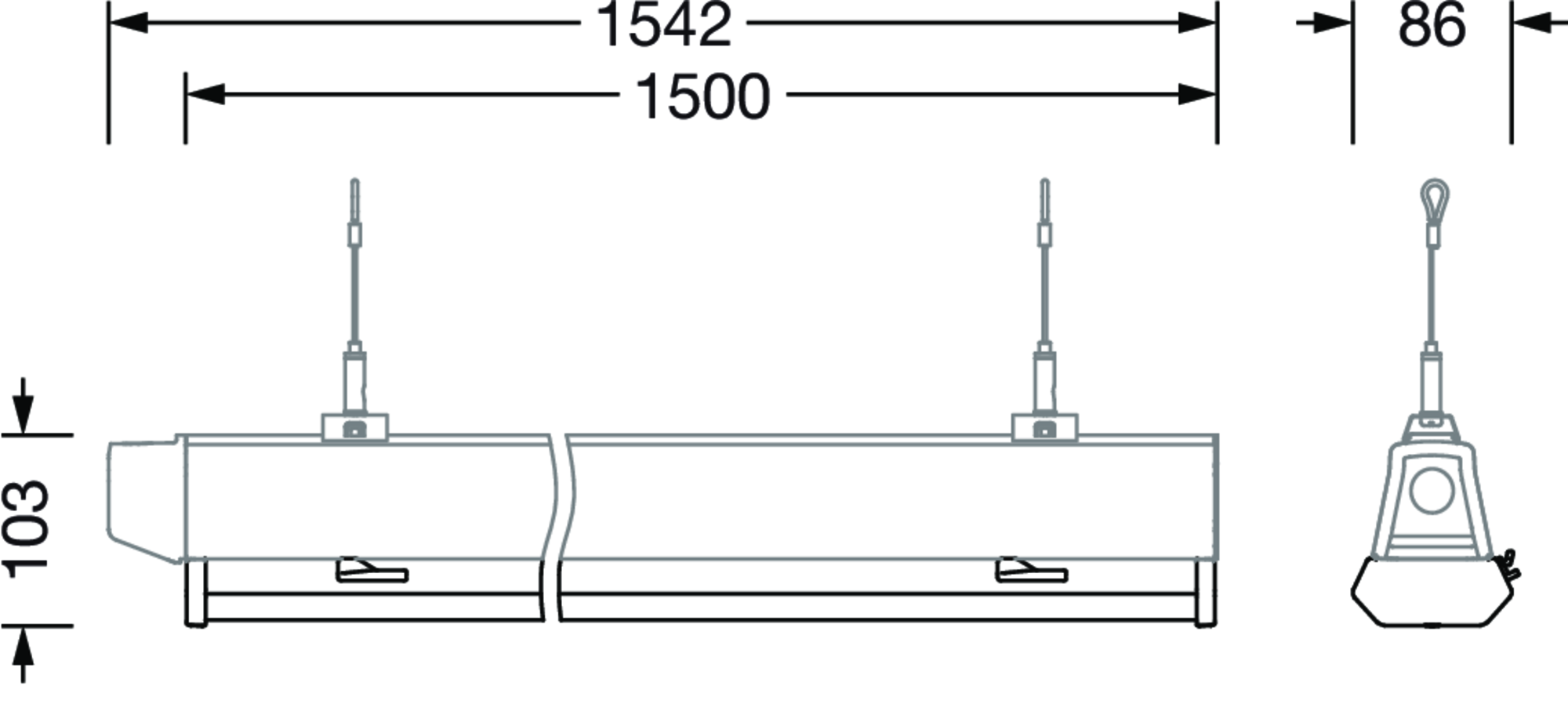

Licross® 11 Protected MO, luminaire insert, of sheet steel, galvanised, coil coated, white, length: 1.500mm, width: 90mm, height: 101mm, LED rated luminous flux: 6.530lm, light colour: 840, control gear: DALI 2, CLO, control gear: ECG DALI, with plug, 6-pole, with phase selection, mains connection: 220..240V, AC/DC, 0/50..60Hz, halogen-free wiring, for central battery installations according to DIN EN 60598-2-22, for emergency light function, without changeover relay, primary optical cover: cover, of PMMA, light emission: direct with ceiling illumination distribution, primary light characteristic: symmetric, protection rating (complete): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, protection symbol: D if used in an environment with non-conductive dust loads with corresponding accessories, impact resistance: IK06, permissible ambient temperature for indoor applications: -25..+40°C, standard: EN 60598-2-22, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece
