Key data

Product type luminaire insert

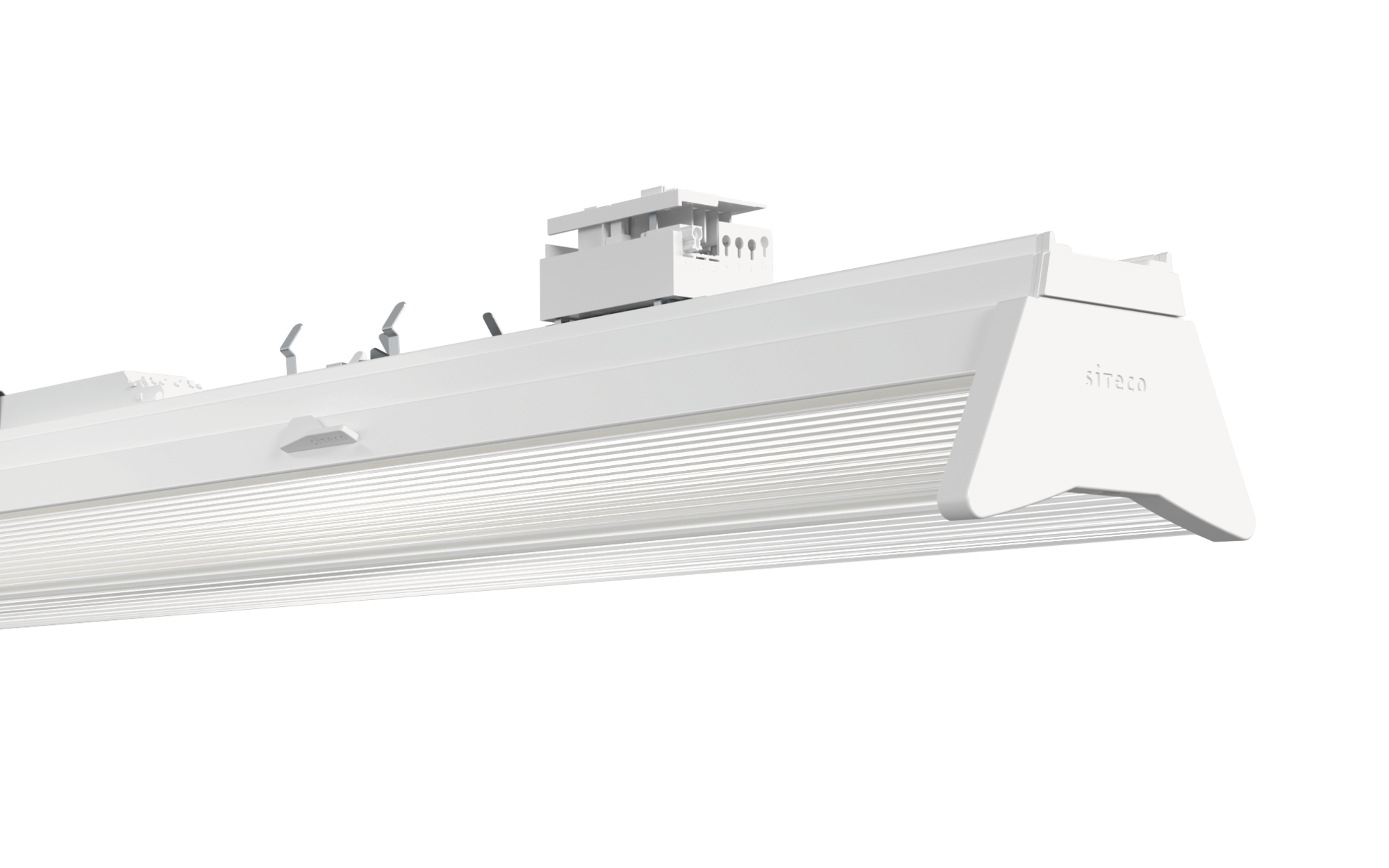

Product name Licross® 11 Performance HO
Order No. 51TD16DN6EXMD

Lighting technology

Light control lens of plastic
Cover cover

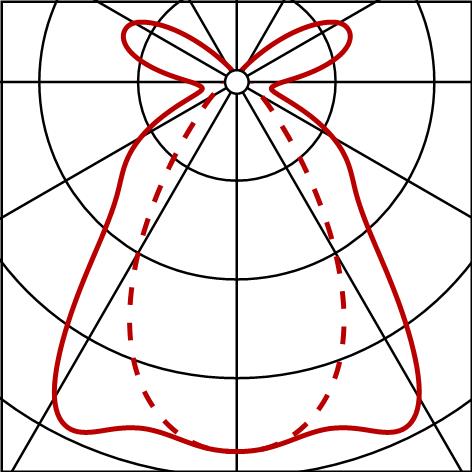

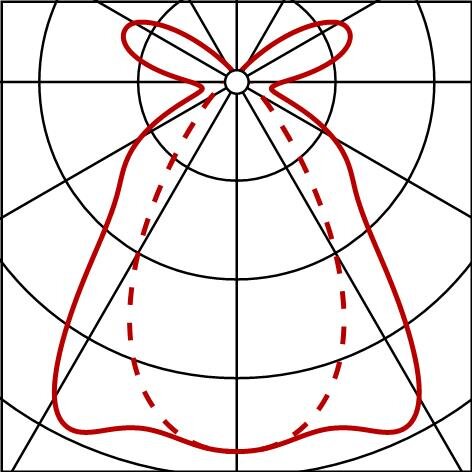

Beam angle wide distribution
Symmetry symmetric

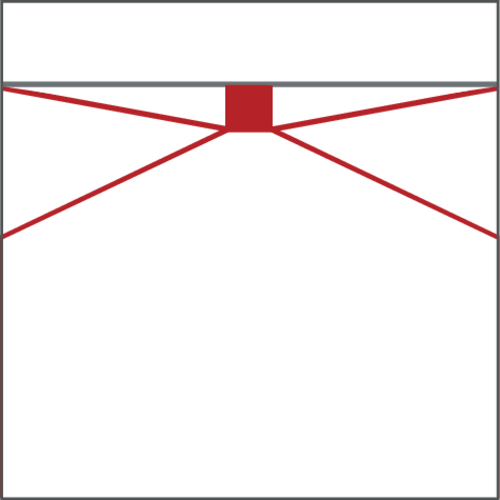

Light emission direct/indirect distribution, 80:20
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 25

Lamps

Lamps with LED
Rated luminous flux 14180lm
Luminous efficacy 174lm/W
Colour temperature 6500K
Colour rendering index CRI > 80
Light colour 865
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 2 SDCM (initial)
Rated input power 81W
Supplement without changeover relay, for emergency light function, for central battery installations according to EN 60598-2-22, internal wiring halogen-free

Operating device

Control DALI 2 (for two DALI lines)

Certificates, Standards

Protection rating IP54
Insulation class insulation class I (protective earthing)
Impact resistance IK06
Protection symbol D if used in an environment with non-conductive dust loads with corresponding accessories
Temperature range (operation) -25..+35°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05
Standard EN 60598-2-22
Certification, designation CE, ENEC, VDE, UKCA

Material, Colour

Licross® LED insert sheet steel, galvanised, coil coated, white
Colour specification white
Cover cover of PMMA

Mounting

Mounting method, mounting location slip-in mounting, in the Licross® trunking rail
Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 6-pole, with phase selection
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

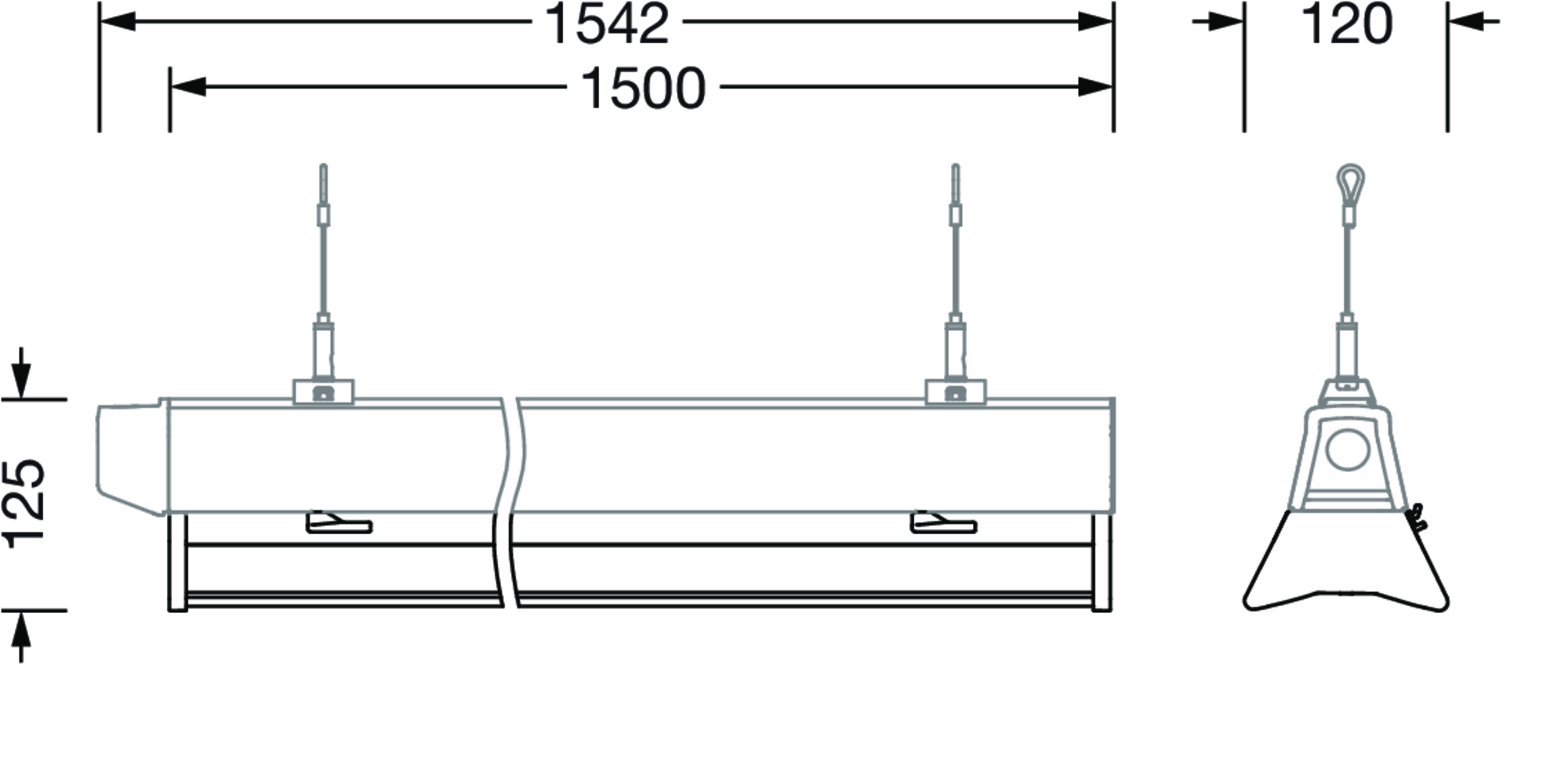

Dimensions, Weight

Length 1500mm
Width 120mm
Height 123mm
Weight 3.1kg

Service life

Rated service life 100000h (L95) at AT = 25°C, 100000h (L90) at AT = ta max
