Licross® 11 Performance HO, wide distribution, AC/DC, with self-contained supply, 3h

Close
Ordercode: 51TS16DN4EXL3C
Remember productRemember product

Article luminaire insert
Product name Licross® 11 Performance HO
Lamp LED
Rated luminous flux 14250lm
Luminous efficacy 159lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 90W
Service life 100000h (L85/B50) at AT = 25°C
Protection rating IP50
Impact resistance IK06
Weight 4.0kg

Licross® 11 Performance HO, luminaire insert, of sheet steel, galvanised, coil coated, white, length: 1.500mm, width: 120mm, height: 123mm, LED rated luminous flux: 14.250lm, light colour: 840, control gear: DALI 2, control gear: ECG DALI, with plug, 6-pole, with phase selection, for trunking rail, 14-core, mains connection: 220..240V, AC/DC, 0/50..60Hz, halogen-free wiring, for emergency light function, charging phase on R (wire number 6), converter,control gear: single battery element, battery: LiFeP04, 9Ah, primary light control with lens, of plastic, primary optical cover: cover, of PMMA, light emission: direct/indirect distribution, protection rating (complete): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D if used in an environment with non-conductive dust loads with corresponding accessories, permissible ambient temperature for indoor applications: +5..+30°C, standard: EN 60598-2-22, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type luminaire insert
Product name Licross® 11 Performance HO
Order No. 51TS16DN4EXL3C

Component 1

Lighting technology
Light control lens of plastic
Cover cover
Beam angle wide distribution

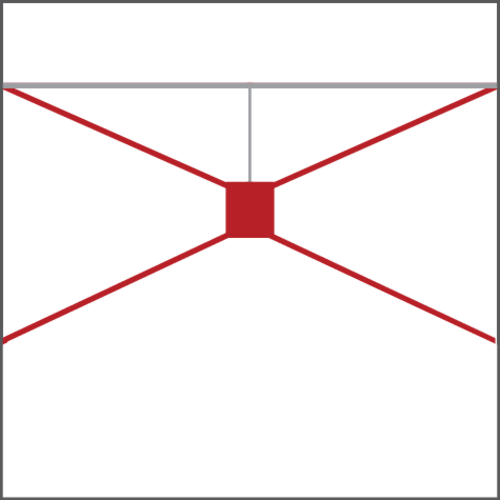

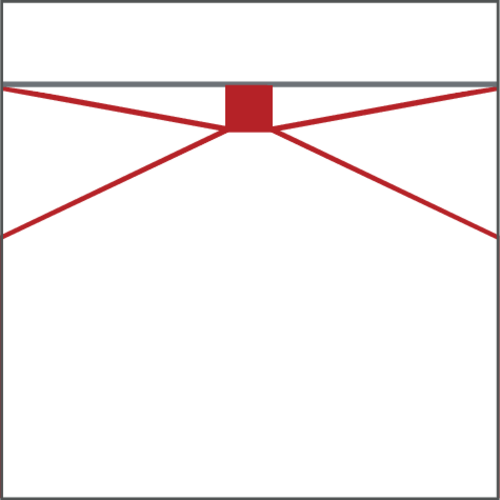

Light emission direct/indirect distribution, 80:20
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 25

Lamps
Lamps with LED
Rated luminous flux 14250lm
Luminous efficacy 159lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 90W
Supplement for emergency light function, halogen-free wiring, charging phase on R (wire number 6)

Operating device
Control gear ECG DALI
Control DALI 2

Component 2

Lamps
Supplement with central self-test function according to 60598-2-22, 2-rod battery

Operating device
Control gear single battery element
Battery LiFeP04
Nominal service life 3h

Certificates, Standards

Protection rating IP50
Insulation class insulation class I (protective earthing)
Impact resistance IK06
Protection symbol D if used in an environment with non-conductive dust loads with corresponding accessories
Temperature range (operation) +5..+30°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05
Standard EN 60598-2-22
Certification, designation CE, UKCA

Material, Colour

Licross® LED insert sheet steel, galvanised, coil coated, white
Colour specification white
Cover cover of PMMA

Mounting

Mounting method, mounting location slip-in mounting, in the Licross® trunking rail
Arrangement single/continuous arrangement

Electrical connection

Connection plug, 6-pole, with phase selection, for trunking rail, 14-core
Nominal voltage 220..240V, 0/50..60Hz, AC/DC

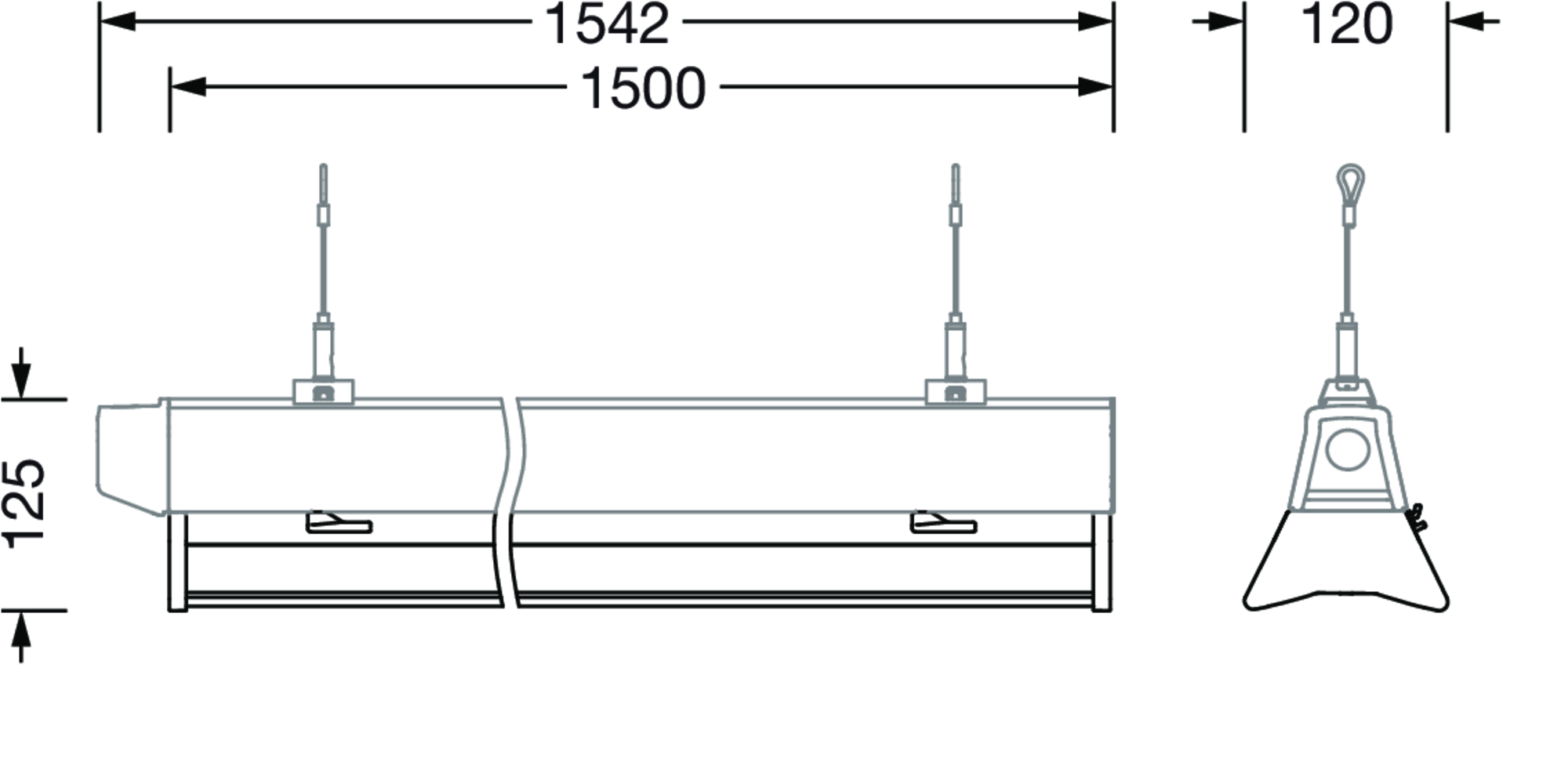

Dimensions, Weight

Length 1500mm
Width 120mm
Height 123mm
Weight 4.0kg

Service life

Rated service life 100000h (L85/B50) at AT = 25°C

Product type
luminaire insert

Product name
Licross® 11 Performance HO

Order No.
51TS16DN4EXL3C

Lighting technology

Light control
lens of plastic

Cover
cover

Beam angle
wide distribution

Light emission
direct/indirect distribution, 80:20

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 25

Lamps

Lamps
with LED

Rated luminous flux
14250lm

Luminous efficacy
159lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
90W

Supplement
for emergency light function, halogen-free wiring, charging phase on R (wire number 6)

Operating device

Control gear
ECG DALI

Control
DALI 2

Lamps

Supplement
with central self-test function according to 60598-2-22, 2-rod battery

Operating device

Control gear
single battery element

Battery
LiFeP04

Nominal service life
3h

Protection rating
IP50

Insulation class
insulation class I (protective earthing)

Impact resistance
IK06

Protection symbol
D if used in an environment with non-conductive dust loads with corresponding accessories

Temperature range (operation)
+5..+30°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05

Standard
EN 60598-2-22

Certification, designation
CE, UKCA

Licross® LED insert
sheet steel, galvanised, coil coated, white

Colour specification
white

Cover
cover of PMMA

Mounting method, mounting location
slip-in mounting, in the Licross® trunking rail

Arrangement
single/continuous arrangement

Connection
plug, 6-pole, with phase selection, for trunking rail, 14-core

Nominal voltage
220..240V, 0/50..60Hz, AC/DC

Length
1500mm

Width
120mm

Height
123mm

Weight
4.0kg

Rated service life
100000h (L85/B50) at AT = 25°C
