Licross® 11 Performance HO, wide distribution, AC/DC, operation on group/central battery

Ordercode: 51TS16DN4EXLD

Article luminaire insert
Product name Licross® 11 Performance HO
Lamp LED
Rated luminous flux 14250lm
Luminous efficacy 166lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 86W
Service life 100000h (L85/B50) at AT = 25°C
Protection rating IP50
Impact resistance IK06
Weight 3.5kg

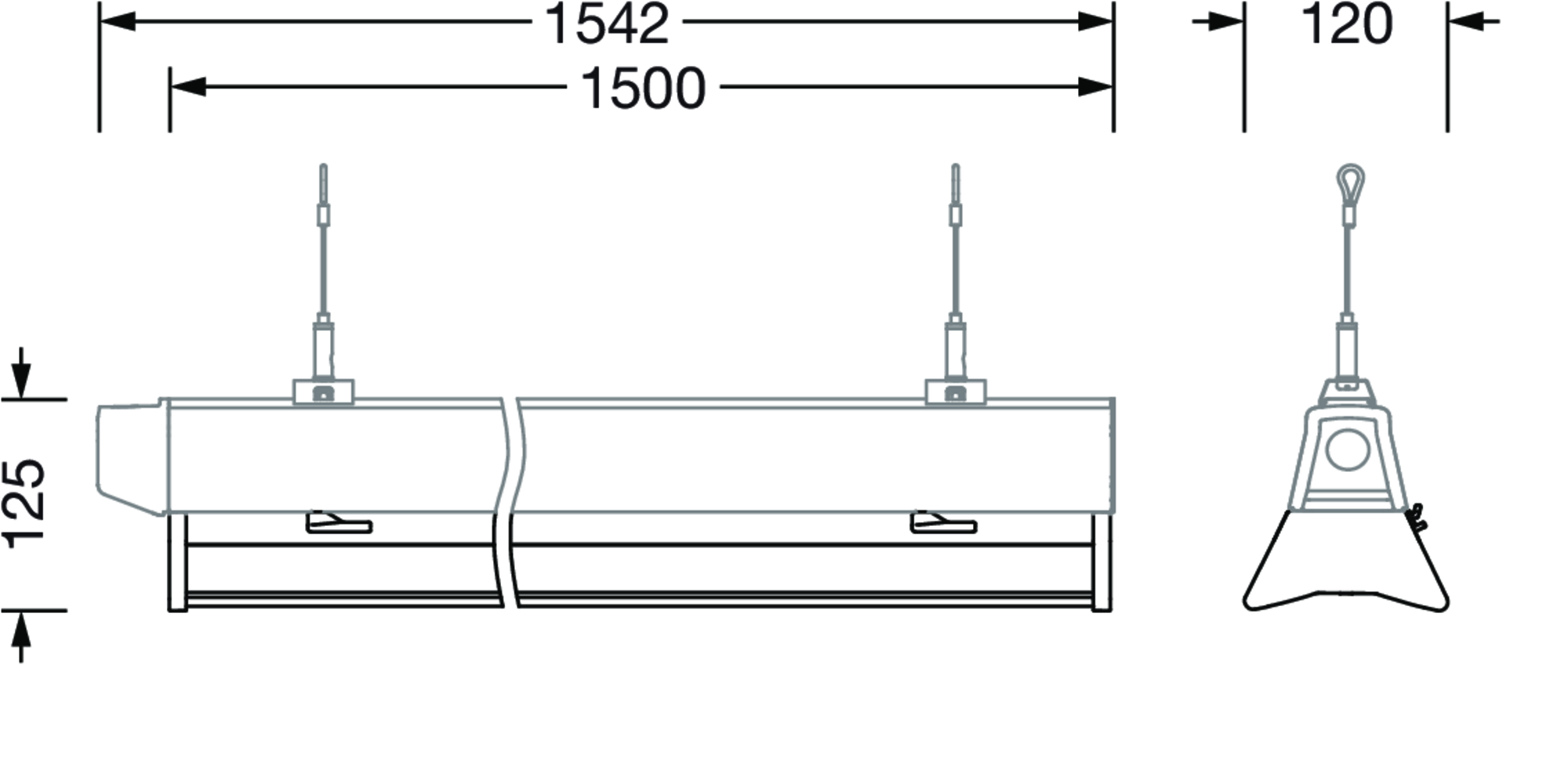

Licross® 11 Performance HO, luminaire insert, of sheet steel, galvanised, coil coated, white, length: 1.500mm, width: 120mm, height: 123mm, LED rated luminous flux: 14.250lm, light colour: 840, control gear: DALI 2, control gear: ECG DALI, with plug, 6-pole, with phase selection, mains connection: 220..240V, AC/DC, 0/50..60Hz, for central battery installations according to DIN EN 60598-2-22, for emergency light function, without changeover relay, halogen-free wiring, primary light control with lens, of plastic, primary optical cover: cover, of PMMA, light emission: direct/indirect distribution, protection rating (complete): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, protection symbol: D if used in an environment without relevant dust loads with corresponding accessories, permissible ambient temperature for indoor applications: -25..+35°C, standard: EN 60598-2-22, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece
