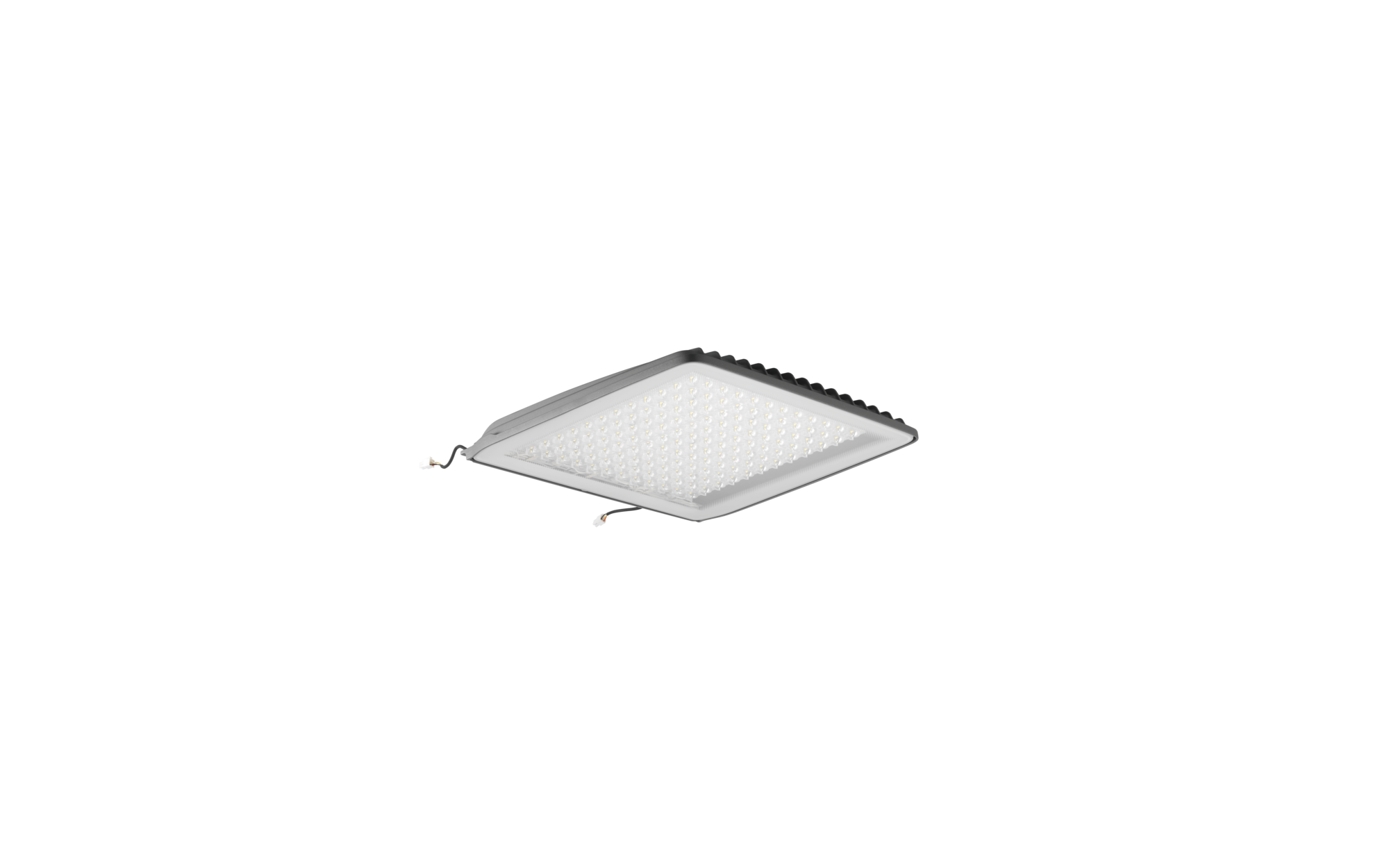

Floodlight FL 20 midi, LED unit, direct asymmetric distribution, PL52

Close
Order No.: 5XA7680D3D00C
Remember articleRemember article

Article LED unit
Product name Floodlight FL 20 midi
Lamp LED
Colour temperature 5000K
Colour rendering CRI > 70
Rated input power 142W
Protection rating IP66
Weight 5.5kg

Floodlight FL 20 midi, LED unit, primary light control with lens, of plastic, primary optical cover: cover panel, of toughened safety glass, transparent, light distribution: PL52, light emission: direct distribution, primary light characteristic: asymmetric, installation type: screw fastening, LED, High Power LED, light colour: 750, colour temperature: 5000K, with cable with plug, mains connection: 220..240V, AC, 50/60Hz, rated input power: 142W, LED unit, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), length: 402mm, width: 421mm, height: 57mm, protection rating (complete): IP66, certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type LED unit
Product name Floodlight FL 20 midi
Order No. 5XA7680D3D00C

Lighting technology

Light control lens of plastic
Cover cover panel, transparent
Light distribution PL52
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps High Power LED, LED
Colour temperature 5000K
Colour rendering index CRI > 70
Light colour 750
Rated input power 142W

Certificates, Standards

Protection rating IP66
Certification, designation CE

Material, Colour

LED unit diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)
Colour specification Siteco® metallic grey (DB 702S)
Cover cover panel of toughened safety glass

Mounting

Mounting method, mounting location screw fastening, in housing

Electrical connection

Connection cable with plug
Nominal voltage 220..240V, 50/60Hz, AC

Dimensions, Weight

Length 402mm
Width 421mm
Height 57mm
Weight 5.5kg

Product type
LED unit

Product name
Floodlight FL 20 midi

Order No.
5XA7680D3D00C

Light control
lens of plastic

Cover
cover panel, transparent

Light distribution
PL52

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
High Power LED, LED

Colour temperature
5000K

Colour rendering index
CRI > 70

Light colour
750

Rated input power
142W

Protection rating
IP66

Certification, designation
CE

LED unit
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)

Colour specification
Siteco® metallic grey (DB 702S)

Cover
cover panel of toughened safety glass

Mounting method, mounting location
screw fastening, in housing

Connection
cable with plug

Nominal voltage
220..240V, 50/60Hz, AC

Length
402mm

Width
421mm

Height
57mm

Weight
5.5kg
