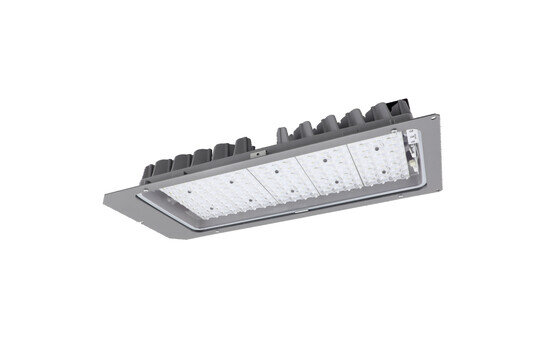

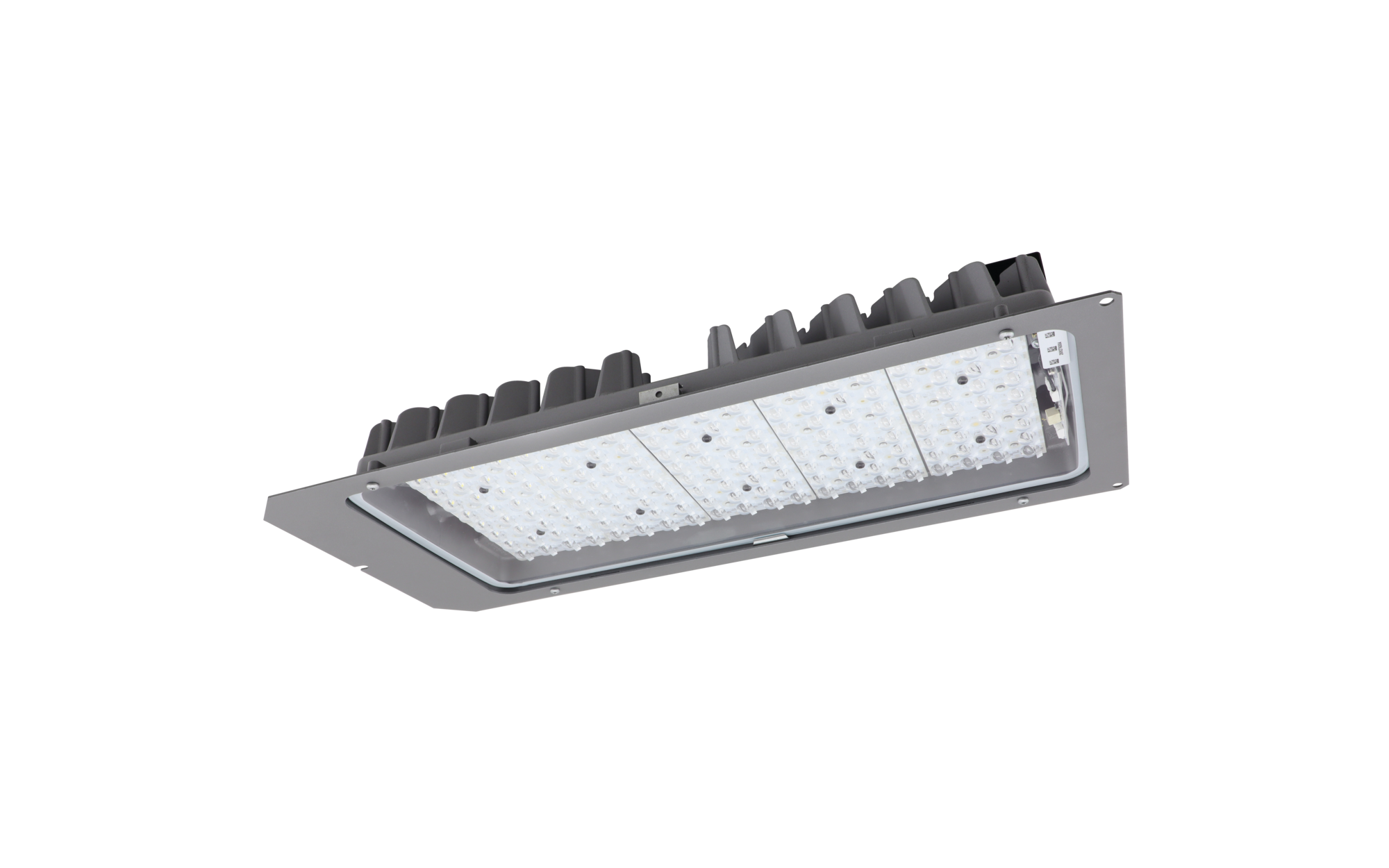

Floodlight FL 20 maxi, LED unit, direct asymmetric distribution, PL44T Backlight Control

Close
Order No.: 5XA769LEDUNITN2
Remember articleRemember article

Article LED unit
Product name Floodlight FL 20 maxi
Lamp LED
Colour temperature 4000K
Colour rendering CRI > 70
Protection rating IP66
Weight 6.4kg

Floodlight FL 20 maxi, LED unit, primary light control with lens, of PMMA, primary optical cover: cover panel, of toughened safety glass, transparent, light distribution: PL44T Backlight Control, light emission: direct distribution, primary light characteristic: asymmetric, installation type: screw fastening, LED, High Power LED, light colour: 740, colour temperature: 4000K, with cable with plug, AC, 50/60Hz, LED unit, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), length: 662mm, width: 298mm, height: 106mm, protection rating (complete): IP66, certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type LED unit
Product name Floodlight FL 20 maxi
Order No. 5XA769LEDUNITN2

Lighting technology

Light control lens of PMMA
Cover cover panel, transparent
Light distribution PL44T Backlight Control
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps High Power LED, LED
Colour temperature 4000K
Colour rendering index CRI > 70
Light colour 740

Certificates, Standards

Protection rating IP66
Certification, designation CE

Material, Colour

LED unit diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)
Colour specification Siteco® metallic grey (DB 702S)
Cover cover panel of toughened safety glass

Mounting

Mounting method, mounting location screw fastening, in housing

Electrical connection

Connection cable with plug

Dimensions, Weight

Length 662mm
Width 298mm
Height 106mm
Weight 6.4kg

Product type
LED unit

Product name
Floodlight FL 20 maxi

Order No.
5XA769LEDUNITN2

Light control
lens of PMMA

Cover
cover panel, transparent

Light distribution
PL44T Backlight Control

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
High Power LED, LED

Colour temperature
4000K

Colour rendering index
CRI > 70

Light colour
740

Protection rating
IP66

Certification, designation
CE

LED unit
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)

Colour specification
Siteco® metallic grey (DB 702S)

Cover
cover panel of toughened safety glass

Mounting method, mounting location
screw fastening, in housing

Connection
cable with plug

Length
662mm

Width
298mm

Height
106mm

Weight
6.4kg
