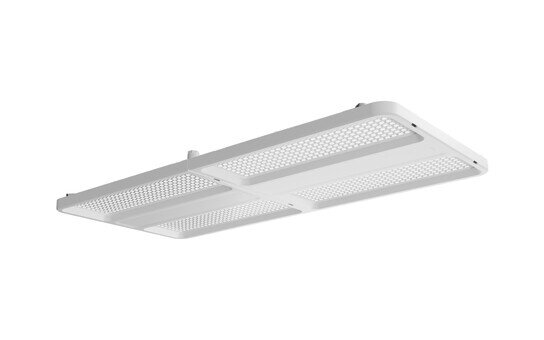

Highbay 11 maxi, narrow distribution, 840, AC/DC

Key data

Product type high bay luminaire
Product name Highbay 11 maxi
Order No. 51HN11DB4QEA

Component 1

Lighting technology
Light control lens of PMMA
Cover cover

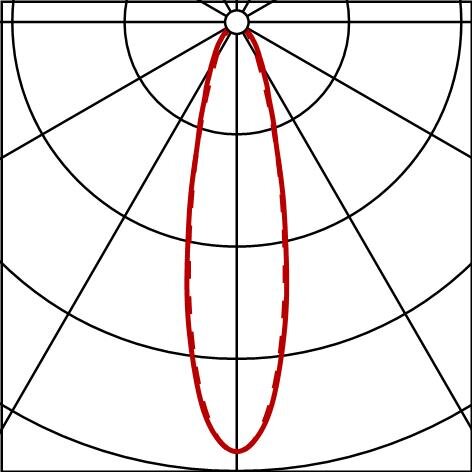

Beam angle narrow distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 22
UGR viewing direction along lateral luminaire axis ≤ 22

Lamps
Lamps with LED
Rated luminous flux 36000lm
Luminous efficacy 203lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 2 SDCM (initial)
Rated input power 177.7W
Supplement internal wiring halogen-free

Operating device
Control DALI 2

Component 2

Operating device
Switching method for central battery installations according to DIN EN 60598-2-22

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK08
Protection symbol D
Temperature range (operation) -40..+55°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, LABS conformity tested according to VDMA 24364:2018-05
Standard EN 60598-2-22
Certification, designation CE, ENEC, VDE, UKCA

Material, Colour

housing frame high-performance plastic PA6, matt traffic white (RAL 9016)
Colour specification matt traffic white (RAL 9016)
Cover cover of PMMA

Mounting

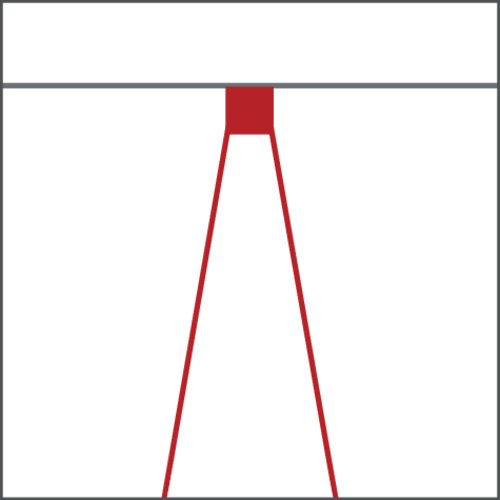

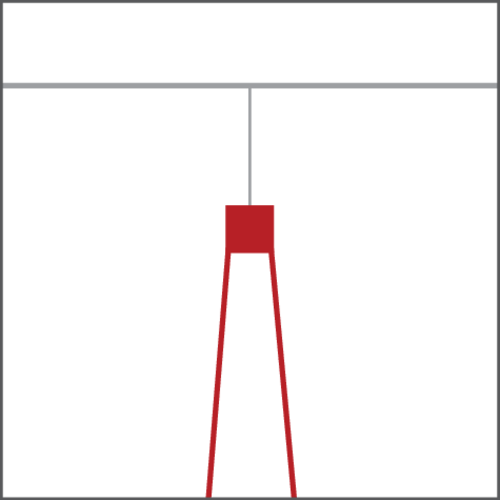

Mounting method, mounting location suspended mounting, surface-mounted, to wire, to the ceiling, to the wall, to the chain
Arrangement single arrangement

Electrical connection

Connection 2x terminal, 5-pole, max. 2.5mm²
Nominal voltage 230..240V, 0/50..60Hz, AC/DC
Through-wiring with through-wiring: 1x feed-in / 1x feed-out

Dimensions, Weight

Length 946mm
Width 442mm
Height 72mm
Weight 7.1kg

Service life

Rated service life 100000h (L95/B50) at AT = 25°C, 100000h (L90/B50) at AT = ta max
