Highbay 21 maxi, wide distribution, LED, 850, DALI 2, AC/DC

Order No.: 52HN12DB5LDA

Article high bay luminaire

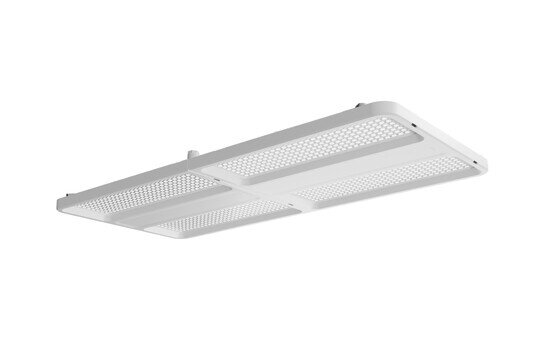

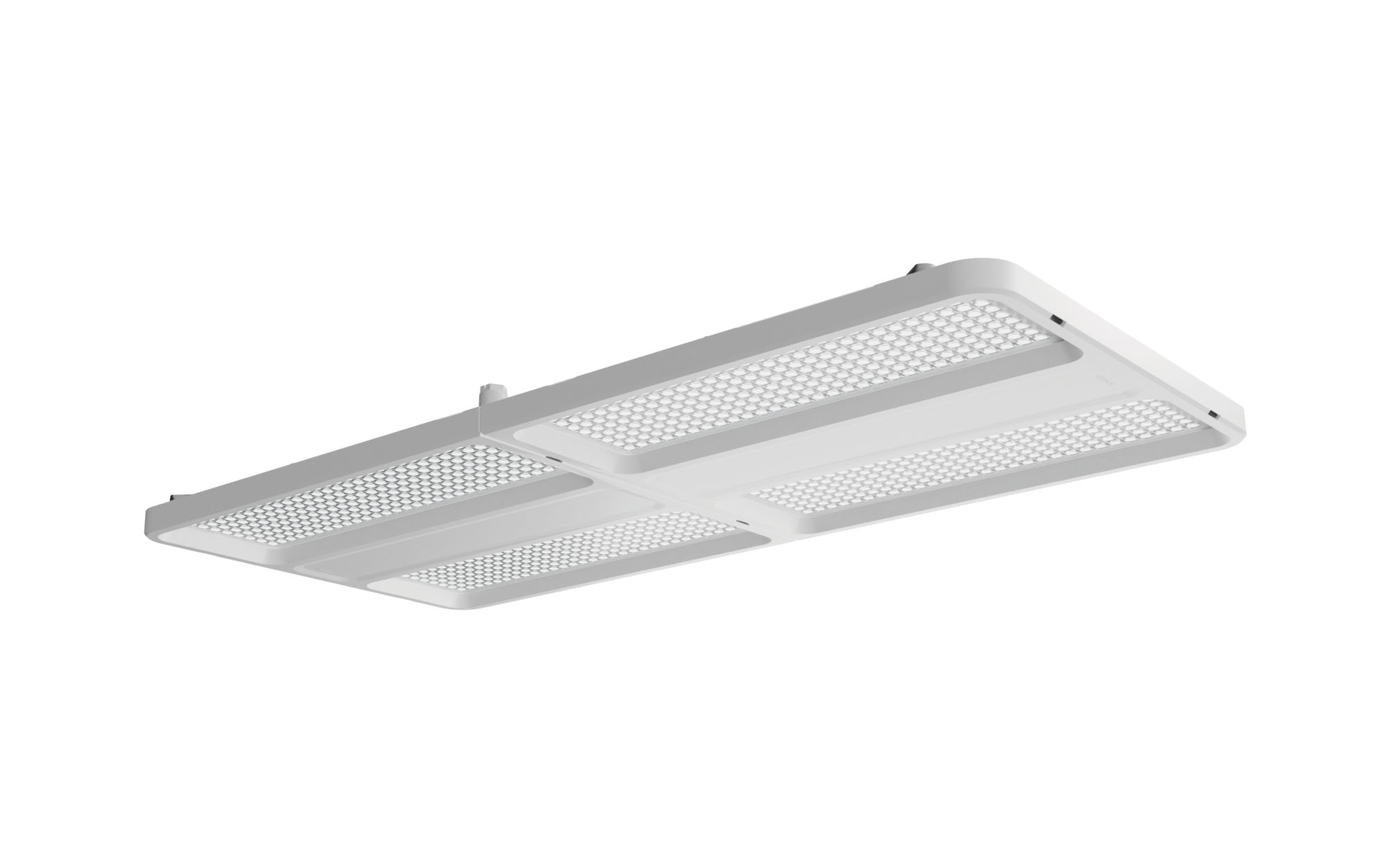

Product name Highbay 21 maxi
Lamp LED
Rated luminous flux 27240lm
Luminous efficacy 189lm/W
Colour temperature 5000K
Colour rendering CRI > 80
Rated input power 144W
Service life 75000h (L80/B50) at AT = ta max
Protection rating IP66
Impact resistance IK08
Weight 7.1kg

high bay luminaire Highbay 21 maxi; direct symmetric wide distribution, light control with lens of PMMA; UGR ≤ 22 (X = 4H | Y = 8H | S = 0.25H | reflection values 70/50/20); luminous flux: 27.240lm; light colour: 850, colour temperature: 5000K, MacAdam ≤ 3 SDCM (initial), colour rendering: CRI > 80; luminous efficacy: 189,2lm/W; rated service life: 75.000h (L80/B50) at AT= ta max; control: DALI 2; luminaire connection: terminal, 5-pole, max. 2.5mm² (cable entry for one cable, Ø 8.5..16mm); mains connection: 230..240V, AC/DC 0/50..60Hz; connected load: 144W; protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); protection symbol: D; impact resistance: IK08; certification: CE, ENEC, VDE, UKCA; luminaire for central battery installations according to DIN EN 60598-2-22, internal wiring halogen-free; luminaire corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry; LABS conformity tested according to VDMA 24364:2018-05; housing frame of high-performance plastic PA6, matt traffic white (RAL 9016); cover of PMMA; dimension (LxWxH): 946 x 442 x 72mm; permissible operating ambient temperature: -40..+65°C (reducing of maximum allowable ambient temperature of 5°C with ceiling mounting); packaging unit: 1 piece; (delivery without accessories; please order mounting accessories separately)

show moreshow less

Downloads

Technical product information

Data for applications

Product details

Key data

Product type high bay luminaire
Product name Highbay 21 maxi
Order No. 52HN12DB5LDA

Component 1

Lighting technology
Light control lens of PMMA
Cover cover

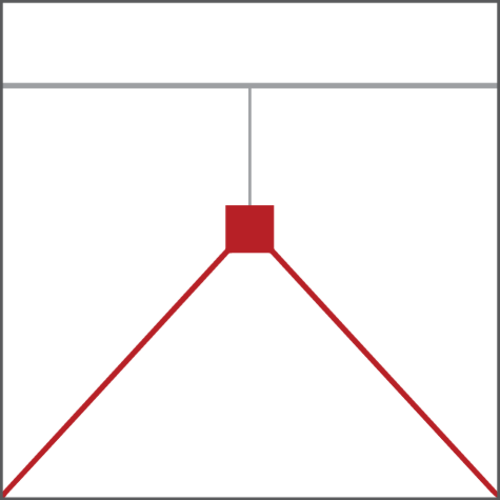

Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 22
UGR viewing direction along lateral luminaire axis ≤ 22

Lamps
Lamps with LED
Rated luminous flux 27240lm
Luminous efficacy 189lm/W
Colour temperature 5000K
Colour rendering index CRI > 80
Light colour 850
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 144W
Supplement internal wiring halogen-free

Operating device
Control DALI 2

Component 2

Operating device
Switching method for central battery installations according to DIN EN 60598-2-22

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK08
Protection symbol D
Temperature range (operation) -40..+65°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, LABS conformity tested according to VDMA 24364:2018-05
Standard EN 60598-2-22
Certification, designation CE, ENEC, VDE, UKCA

Material, Colour

housing frame high-performance plastic PA6, matt traffic white (RAL 9016)
Colour specification matt traffic white (RAL 9016)
Cover cover of PMMA

Mounting

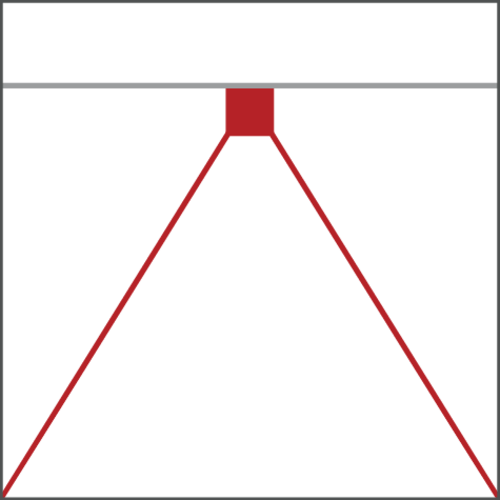

Mounting method, mounting location suspended mounting, surface-mounted, to wire, to the ceiling, to the wall, to the chain
Arrangement single arrangement

Electrical connection

Connection terminal, 5-pole, max. 2.5mm²
Nominal voltage 230..240V, 0/50..60Hz, AC/DC

Dimensions, Weight

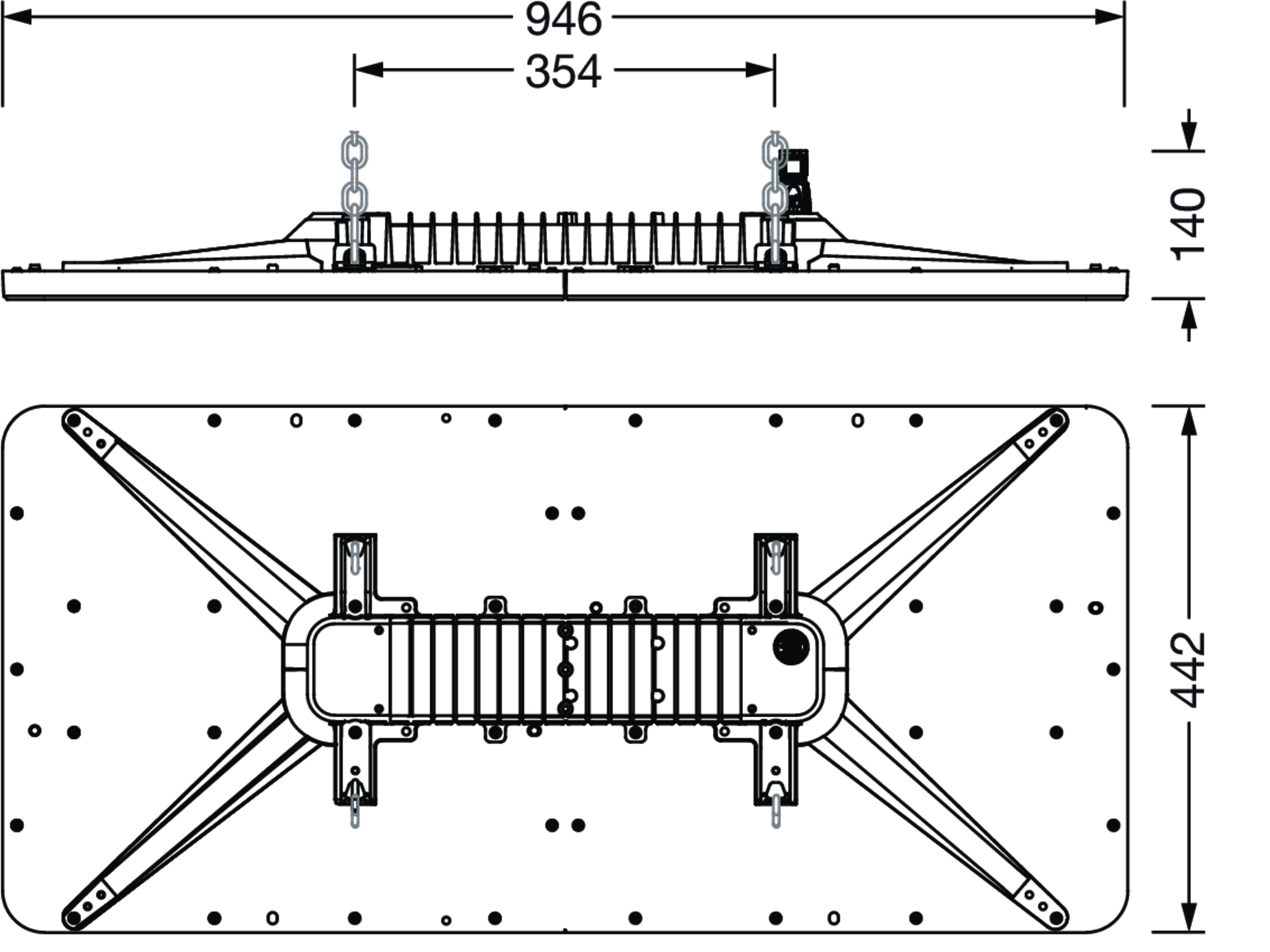

Length 946mm
Width 442mm
Height 72mm
Weight 7.1kg

Service life

Rated service life 75000h (L80/B50) at AT = ta max

Key data

Product type
high bay luminaire

Product name
Highbay 21 maxi

Order No.
52HN12DB5LDA

Component 1

Lighting technology

Light control
lens of PMMA

Cover
cover

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 22

UGR viewing direction along lateral luminaire axis
≤ 22

Lamps

Lamps
with LED

Rated luminous flux
27240lm

Luminous efficacy
189lm/W

Colour temperature
5000K

Colour rendering index
CRI > 80

Light colour
850

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
144W

Supplement
internal wiring halogen-free

Operating device

Control
DALI 2

Component 2

Operating device

Switching method
for central battery installations according to DIN EN 60598-2-22

Certificates, Standards

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK08

Protection symbol
D

Temperature range (operation)
-40..+65°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, LABS conformity tested according to VDMA 24364:2018-05

Standard
EN 60598-2-22

Certification, designation
CE, ENEC, VDE, UKCA

Material, Colour

housing frame
high-performance plastic PA6, matt traffic white (RAL 9016)

Colour specification
matt traffic white (RAL 9016)

Cover
cover of PMMA

Mounting

Mounting method, mounting location
suspended mounting, surface-mounted, to wire, to the ceiling, to the wall, to the chain

Arrangement
single arrangement

Electrical connection

Connection
terminal, 5-pole, max. 2.5mm²

Nominal voltage
230..240V, 0/50..60Hz, AC/DC

Dimensions, Weight

Length
946mm

Width
442mm

Height
72mm

Weight
7.1kg

Service life

Rated service life
75000h (L80/B50) at AT = ta max

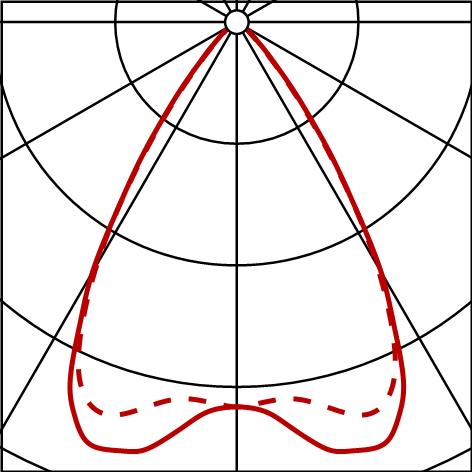

Photometric report / planning data

HB21mx
wd,27240lm850,DA2,f.c-bat
Lamps: 1x LED, factory setting AC mode: AC-mode
Order No.: 52HN12DB5LDA

Photometric report (PDF)

Product versions/accessory

HB21mx
Lamps: 1x LED, emergency light operation rated luminous flux: DC mode (central or group accumulator) initial emergency light level
Order No.: 52HN12DB5LDA

Photometric report (PDF)
