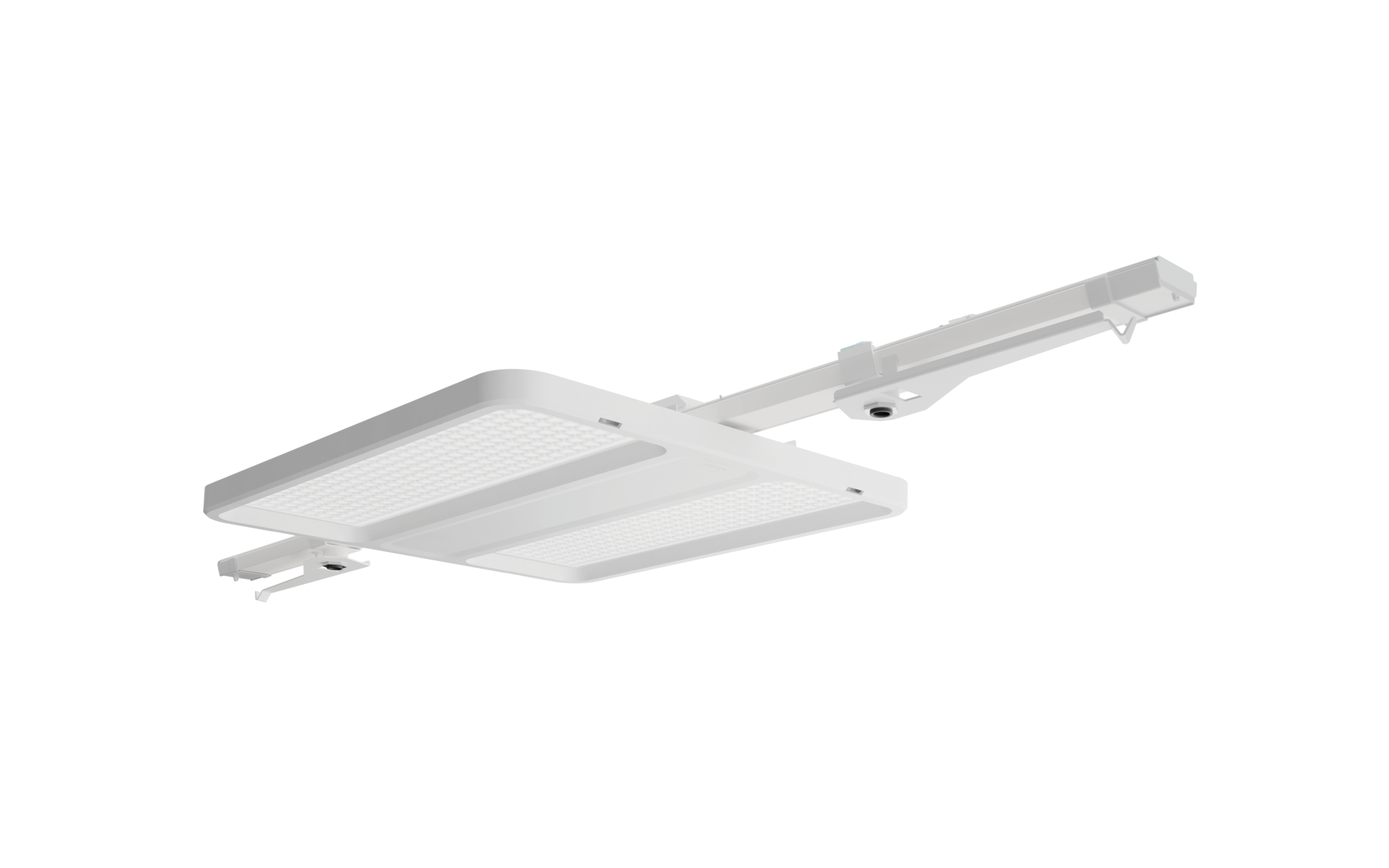

Highbay 21 for Modario® trunking rail midi, with lever catch, LED

Close
Order No.: 52HN12DA5FMA
Remember articleRemember article

Article high bay luminaire
Product name Highbay 21 for Modario® trunking rail midi
Lamp LED
Rated luminous flux 13620lm
Luminous efficacy 189lm/W
Colour temperature 5000K
Colour rendering CRI > 80
Rated input power 72.1W
Service life 75000h (L80/B50) at AT = ta max
Protection rating IP64
Impact resistance IK06
Weight 3.5kg

high bay luminaire Highbay 21 for Modario® trunking rail midi; direct symmetric wide distribution, light control with lens of PMMA; UGR ≤ 22 (X = 4H | Y = 8H | S = 0.25H | reflection values 70/50/20); luminous flux: 13.620lm; light colour: 850, colour temperature: 5000K, MacAdam ≤ 3 SDCM (initial), colour rendering: CRI > 80; luminous efficacy: 188,9lm/W; rated service life: 75.000h (L80/B50) at AT= ta max; control: DALI 2; luminaire connection: plug, 5-pole, with phase selectionmains connection: 230..240V, AC 50/60Hz; connected load: 72,1W; protection rating (complete): IP64; insulation class (complete): insulation class I (protective earthing); protection symbol: D; impact resistance: IK06; certification: CE, ENEC, VDE, UKCA; internal wiring halogen-free; luminaire LABS conformity tested according to VDMA 24364:2018-05; Suitable for use in the food industry according to the specifications of IFS-Food, HACCP and/or BRC; housing frame of high-performance plastic PA6, matt traffic white (RAL 9016); cover of PMMA; fixing on rail side of steel, galvanised, white; blank cover of PC, traffic white (RAL 9016); dimension (LxWxH): 1.195 x 442 x 72mm; permissible operating ambient temperature: -40..+55°C (reducing of maximum allowable ambient temperature of 5°C with ceiling mounting); packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type high bay luminaire
Product name Highbay 21 for Modario® trunking rail midi
Order No. 52HN12DA5FMA

Lighting technology

Light control lens of PMMA
Cover cover

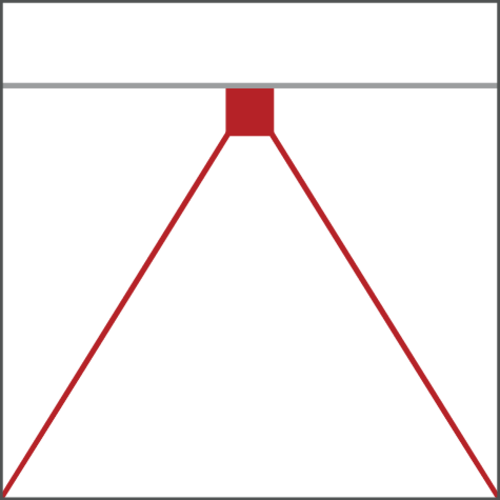

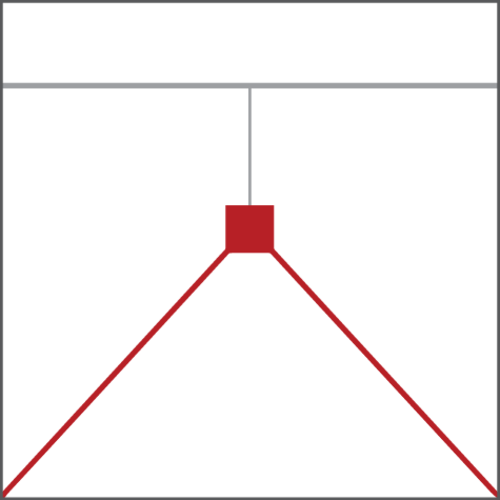

Beam angle wide distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 22
UGR viewing direction along lateral luminaire axis ≤ 22

Lamps

Lamps with LED
Rated luminous flux 13620lm
Luminous efficacy 189lm/W
Colour temperature 5000K
Colour rendering index CRI > 80
Light colour 850
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 72.1W
Supplement internal wiring halogen-free

Operating device

Control DALI 2

Certificates, Standards

Protection rating IP64
Insulation class insulation class I (protective earthing)
Impact resistance IK06
Protection symbol D
Temperature range (operation) -40..+55°C
Supplement LABS conformity tested according to VDMA 24364:2018-05, Suitable for use in the food industry according to the specifications of IFS-Food, HACCP and/or BRC
Certification, designation CE, ENEC, VDE, UKCA

Material, Colour

housing frame high-performance plastic PA6, matt traffic white (RAL 9016)
Colour specification matt traffic white (RAL 9016)
fixing on rail side steel, galvanised, white
Colour specification white
blank cover PC, traffic white (RAL 9016)
Colour specification traffic white (RAL 9016)
Cover cover of PMMA

Mounting

Arrangement continuous row arrangement

Electrical connection

Connection plug, 5-pole, with phase selection
Nominal voltage 230..240V, 50/60Hz, AC

Dimensions, Weight

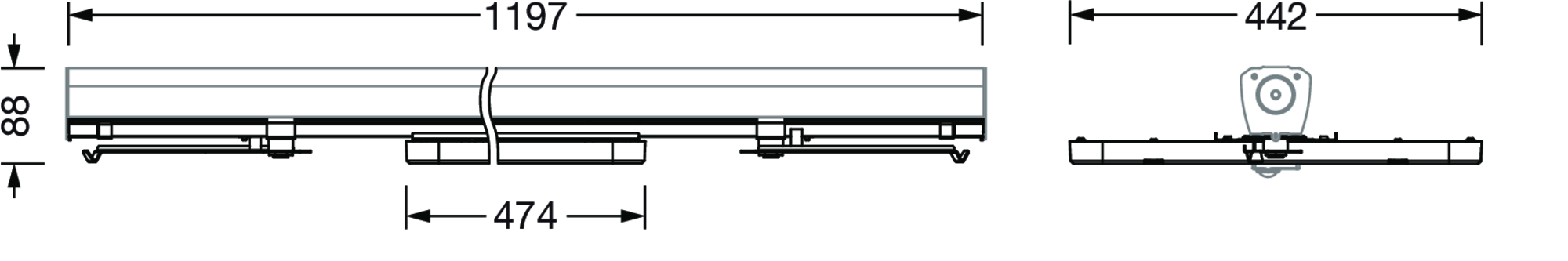

Length 1195mm
Width 442mm
Height 72mm
Weight 3.5kg

Service life

Rated service life 75000h (L80/B50) at AT = ta max

Product type
high bay luminaire

Product name
Highbay 21 for Modario® trunking rail midi

Order No.
52HN12DA5FMA

Light control
lens of PMMA

Cover
cover

Beam angle
wide distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 22

UGR viewing direction along lateral luminaire axis
≤ 22

Lamps
with LED

Rated luminous flux
13620lm

Luminous efficacy
189lm/W

Colour temperature
5000K

Colour rendering index
CRI > 80

Light colour
850

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
72.1W

Supplement
internal wiring halogen-free

Control
DALI 2

Protection rating
IP64

Insulation class
insulation class I (protective earthing)

Impact resistance
IK06

Protection symbol
D

Temperature range (operation)
-40..+55°C

Supplement
LABS conformity tested according to VDMA 24364:2018-05, Suitable for use in the food industry according to the specifications of IFS-Food, HACCP and/or BRC

Certification, designation
CE, ENEC, VDE, UKCA

housing frame
high-performance plastic PA6, matt traffic white (RAL 9016)

Colour specification
matt traffic white (RAL 9016)

fixing on rail side
steel, galvanised, white

Colour specification
white

blank cover
PC, traffic white (RAL 9016)

Colour specification
traffic white (RAL 9016)

Cover
cover of PMMA

Arrangement
continuous row arrangement

Connection
plug, 5-pole, with phase selection

Nominal voltage
230..240V, 50/60Hz, AC

Length
1195mm

Width
442mm

Height
72mm

Weight
3.5kg

Rated service life
75000h (L80/B50) at AT = ta max

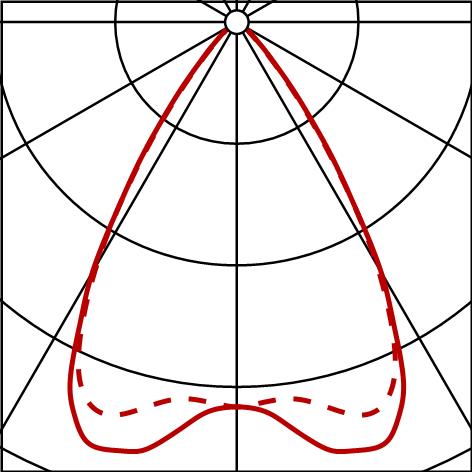

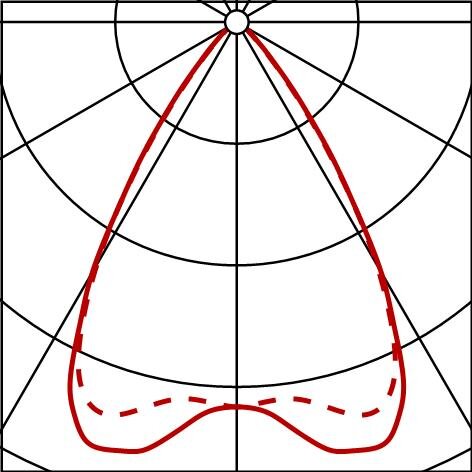

Photometric report / planning data

HB21/Mod-md
wd,13620lm850,DA2
Lamps: 1x LED, factory setting AC mode: AC-mode
Order No.: 52HN12DA5FMA

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
Product versions/accessory

HB21/Mod-md
Lamps: 1x LED, emergency light operation rated luminous flux: DC mode (central or group accumulator) initial emergency light level
Order No.: 52HN12DA5FMA

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
