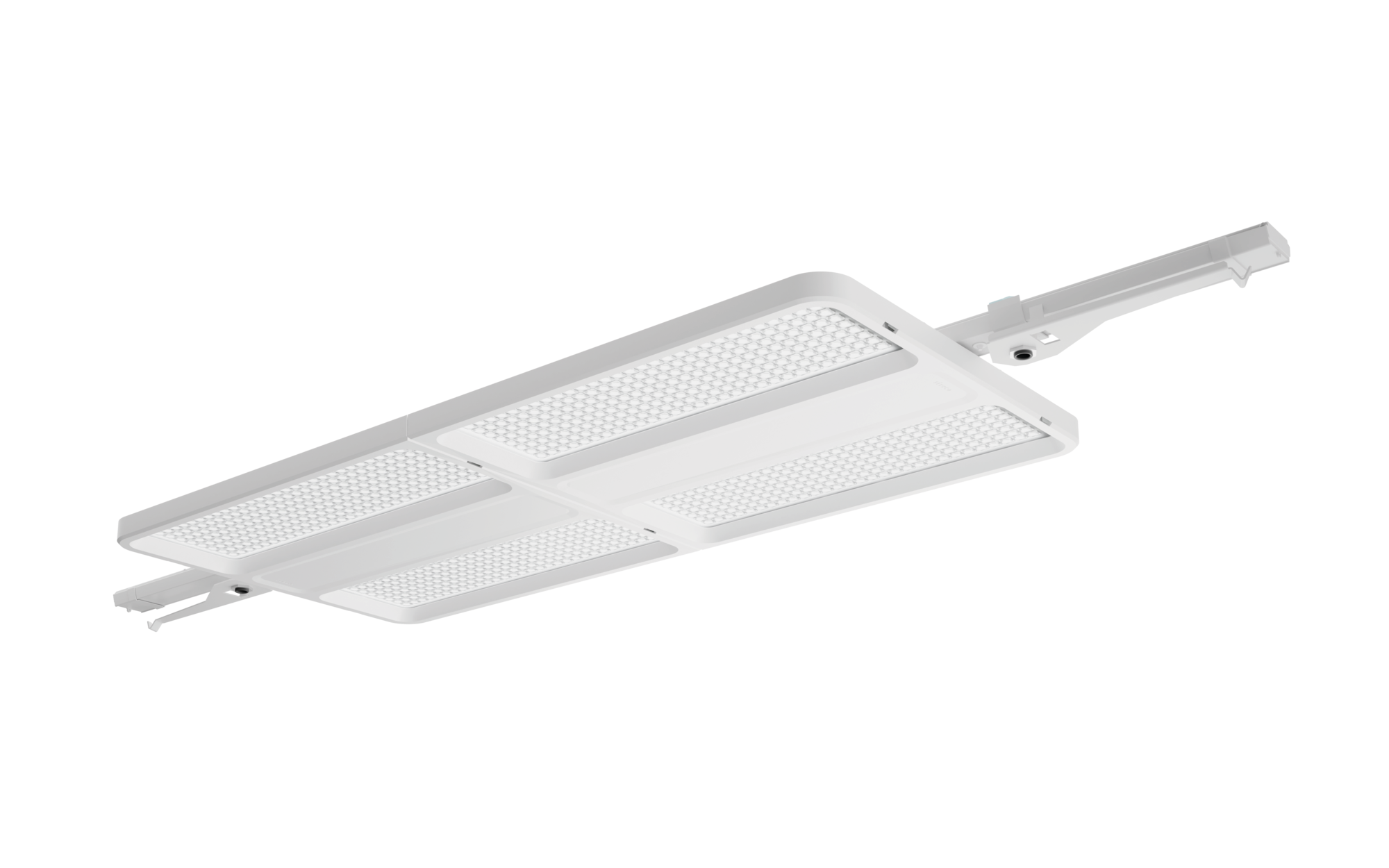

Highbay 21 for Modario® trunking rail maxi, with lever catch, LED
Close
Article high bay luminaire
Product name Highbay 21 for Modario® trunking rail maxi
Lamp LED
Rated luminous flux 64000lm
Luminous efficacy 186lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 345W
Service life 75000h (L80/B50) at AT = ta max
Protection rating IP64
Impact resistance IK07
Weight 7.0kg

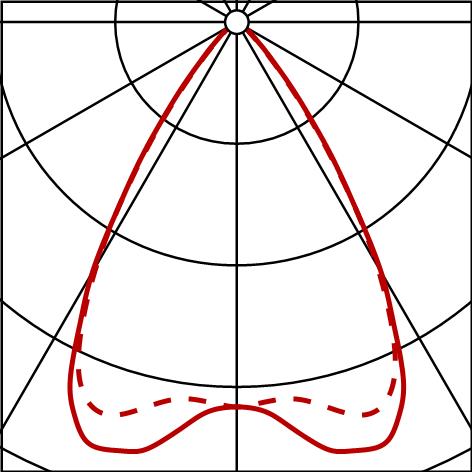

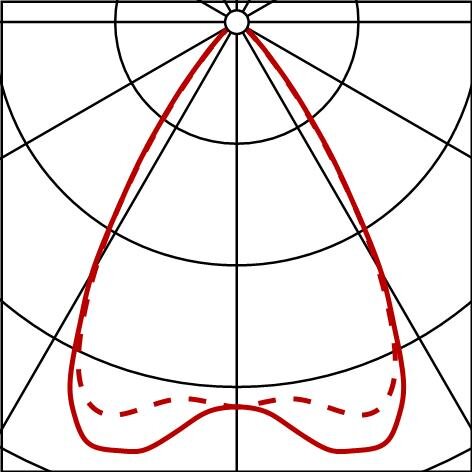

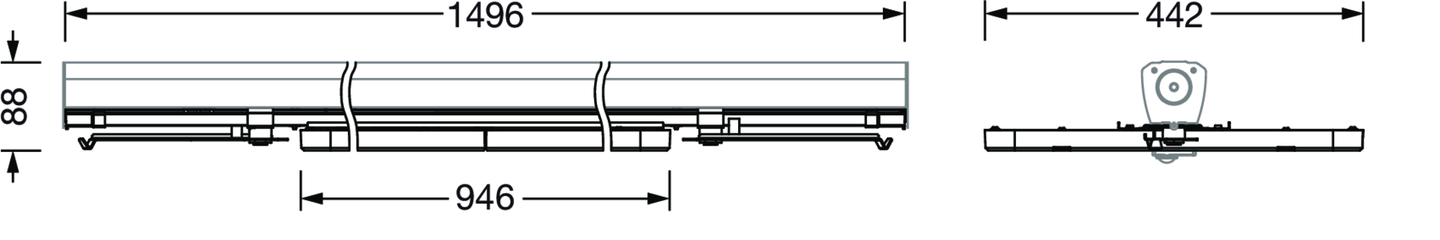

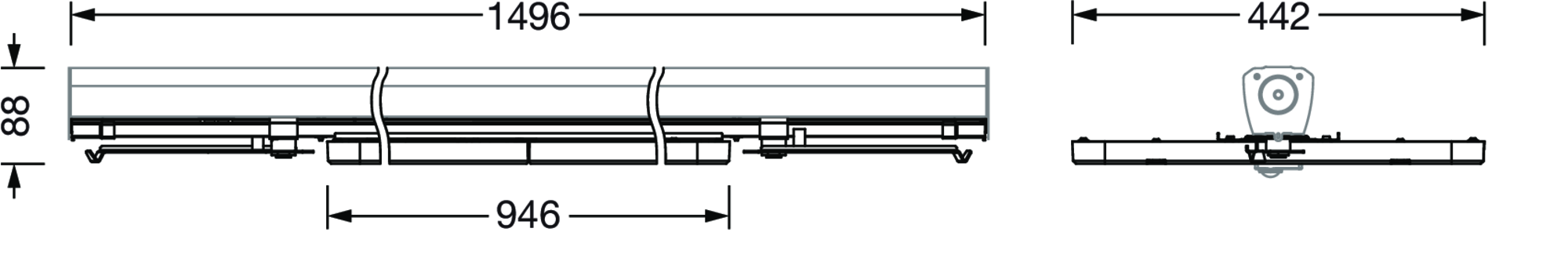

high bay luminaire Highbay 21 for Modario® trunking rail maxi; direct symmetric wide distribution, light control with lens of PMMA; UGR ≤ 22 (X = 4H | Y = 8H | S = 0.25H | reflection values 70/50/20); luminous flux: 64.000lm; light colour: 840, colour temperature: 4000K, MacAdam ≤ 3 SDCM (initial), colour rendering: CRI > 80; luminous efficacy: 185,5lm/W; rated service life: 75.000h (L80/B50) at AT= ta max; control: DALI 2; luminaire connection: plug, 5-pole, with phase selectionmains connection: 230..240V, AC 50/60Hz; connected load: 345W; protection rating (complete): IP64; insulation class (complete): insulation class I (protective earthing); protection symbol: D; impact resistance: IK07; certification: CE, ENEC, VDE, UKCA; internal wiring halogen-free; luminaire corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry; LABS conformity tested according to VDMA 24364:2018-05; housing frame of high-performance plastic PA6, matt traffic white (RAL 9016); cover of PMMA; fixing on rail side of steel, galvanised, white; blank cover of PC, traffic white (RAL 9016); dimension (LxWxH): 1.496 x 442 x 72mm; permissible operating ambient temperature: -40..+50°C (reducing of maximum allowable ambient temperature of 5°C with ceiling mounting); packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details
Photometric report / planning data
HB21/Mod-mx
wd,64000lm840,DA2
Lamps: 1x LED
Order No.: 52HN12DB4WMA
