enclosure, transparent, for Large Bell iQ

Close
Order No.: 5XA1565E1V1
Remember articleRemember article

Article electrics components group
Product name Large Bell iQ
Lamp LED
Rated luminous flux 5180lm
Luminous efficacy 151lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 34
Pnom end service life 38
Pred at 50% lumin. flux 16
Weight 3.0kg

electrics components group, for Large Bell iQ, LED luminous flux: 5.180 lm, colour temperature: 3000K, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 34 W, end of service life: 38 W, reduction: 16 W, primary light characteristic: asymmetric, primary optical cover: enclosure, of PMMA, transparent, gear tray with cover, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE

Downloads

Technical product information
Data for applications

Product details

Key data

Product type electrics components group
Product name Large Bell iQ
Order No. 5XA1565E1V1

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated
Cover enclosure, transparent
Light distribution ST1.2a
Beam angle wide distribution
Symmetry asymmetric distribution

Lamps

Lamps with High Power LED, LED
Rated luminous flux 5180lm
Luminous efficacy 151lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
Rated input power begin service life 34
Rated input power end service life 38
Rated input power at 50% lumin. flux 16

Operating device

Control iQ-Street Remote, D4i with power reduction, Smart Interface above
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Insulation class insulation class II (safety insulation)
Certification, designation CE, ENEC, VDE

Material, Colour

Cover enclosure of PMMA

Electrical connection

Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Dimensions, Weight

Weight 3.0kg

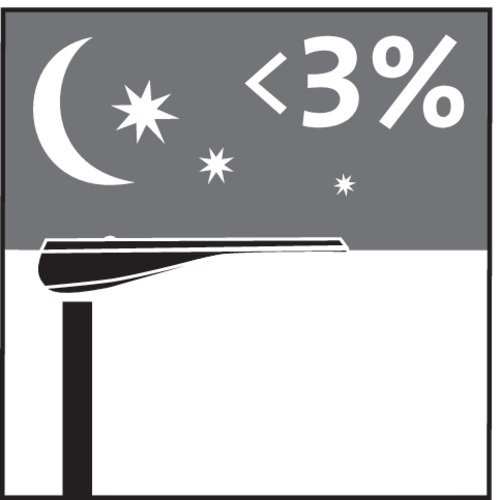

Light emission

Light emission < 3%

Product type
electrics components group

Product name
Large Bell iQ

Order No.
5XA1565E1V1

Light control
3 zone facetted reflector of plastic, silver coated

Cover
enclosure, transparent

Light distribution
ST1.2a

Beam angle
wide distribution

Symmetry
asymmetric distribution

Lamps
with High Power LED, LED

Rated luminous flux
5180lm

Luminous efficacy
151lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

Rated input power begin service life
34

Rated input power end service life
38

Rated input power at 50% lumin. flux
16

Control
iQ-Street Remote, D4i with power reduction, Smart Interface above

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Insulation class
insulation class II (safety insulation)

Certification, designation
CE, ENEC, VDE

Cover
enclosure of PMMA

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Weight
3.0kg

Light emission
< 3%
