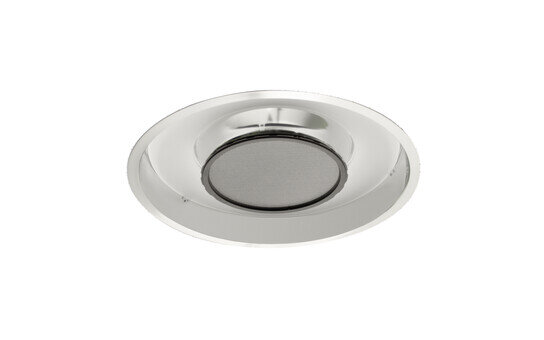

Lunis 11 R, Light colour 840, DALI Multilumen
Close
Article downlight
Product name Lunis 11 R
Lamp LED
Rated luminous flux 4860lm
Luminous efficacy 131lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 37W
Service life 50000h (L90/B50) at AT = 25°C
Protection rating IP20
Weight 1.9kg
Lunis 11 R, downlight, light control with reflector, of ultra-pure aluminium (Al 99.98%), highly specular, perforated, light emission: direct distribution, LED rated luminous flux: 4.860lm, light colour: 840, control gear: ECG Multilumen, with terminal, 3+2-pole, max. 2.5mm², mains connection: 230V, AC, 50/60Hz, diameter: 398mm, central ring, of plastic, graphite (RAL 7037), central module, blanking cover, of sheet steel, perforated, metallic grey (RAL 9006), protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: F, permissible ambient temperature for indoor applications: +10..+35°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

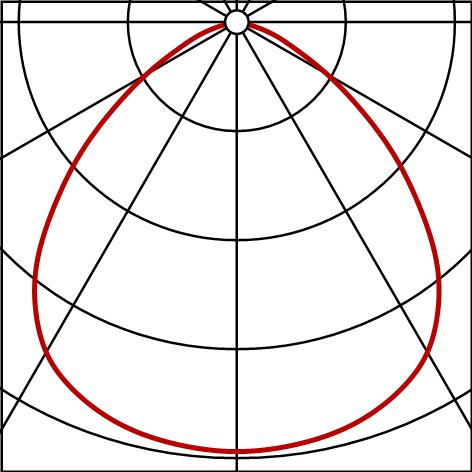

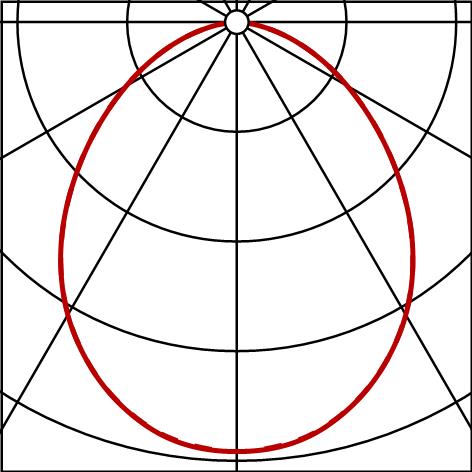

Photometric report / planning data
Lunis 11 R
LED, ECG Multilumen, reflector, ultra-pure aluminium (Al 99.98%), perforated, highly specular, direct symmetric wide distribution, recessed, in the ceiling, ø= 398mm
Lamps: 1x LED 4000K / CRI >= 80, factory setting: High Lumen Output
Order No.: 5LR610D4OB11AF
Lunis 11 R
Lamps: 1x LED 4000K / CRI >= 80, individual setting: Low Lumen Output
Order No.: 5LR610D4OB11AF
Lunis 11 R
Lamps: 1x LED 4000K / CRI >= 80, factory setting: High Lumen Output
Order No.: 5LR610D4OB11AF
diffuser disc
Order No.: 5LR94685EE
Lunis 11 R
Lamps: 1x LED 4000K / CRI >= 80, individual setting: Low Lumen Output
Order No.: 5LR610D4OB11AF
diffuser disc
Order No.: 5LR94685EE
