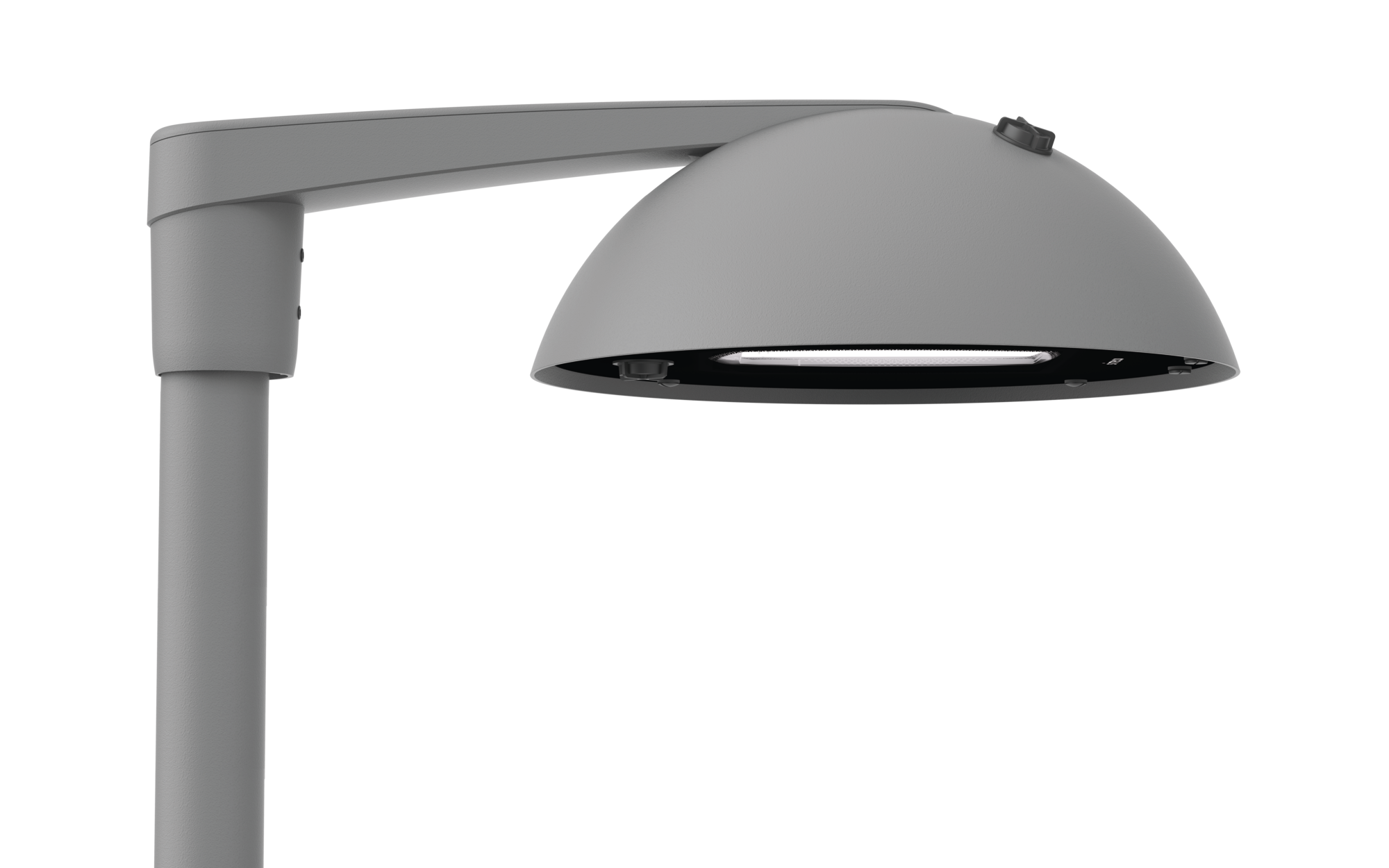

DL 500 iQ, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above

Order No.: 5XJ3AE3DG108

Article mast luminaire
Product name DL 500 iQ
Lamp LED
Rated luminous flux 15610lm
Luminous efficacy 158lm/W
Colour temperature 3000K
Colour rendering CRI > 70
P_nom begin service life 99
P_nom end service life 105
P_red at 50% lumin. flux 45
Service life 100000h at AT = 25°C
Protection rating IP66
Impact resistance IK09
Weight 13.6kg

DL 500 iQ, mast luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: ST1.0a, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, LED, High Power LED, rated luminous flux: 15.610lm, luminous efficacy: 158lm/W, light colour: 730, colour temperature: 3000K, control gear: iQ-Street Remote, D4i with power reduction, control: pre-setting: logarithmic dimming characteristic, Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), mains connection: 230..240V, AC, 50/60Hz, start of lifetime: 99W, end of service life: 105W, reduction: 45W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), inclination adjustable: 0°, 5°, 10° (post-top) | 0°, -5°, -10°, -15° (side-entry), diameter: 500mm, spigot size: 76mm, mounting height: 4..12m, Smart Interface below and above, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK09, standard-compliant lighting for roads and squares, packaging unit: 1 piece
