Article base module
Product name Licross® External Interface
Protection rating IP54
Weight 0.1kg

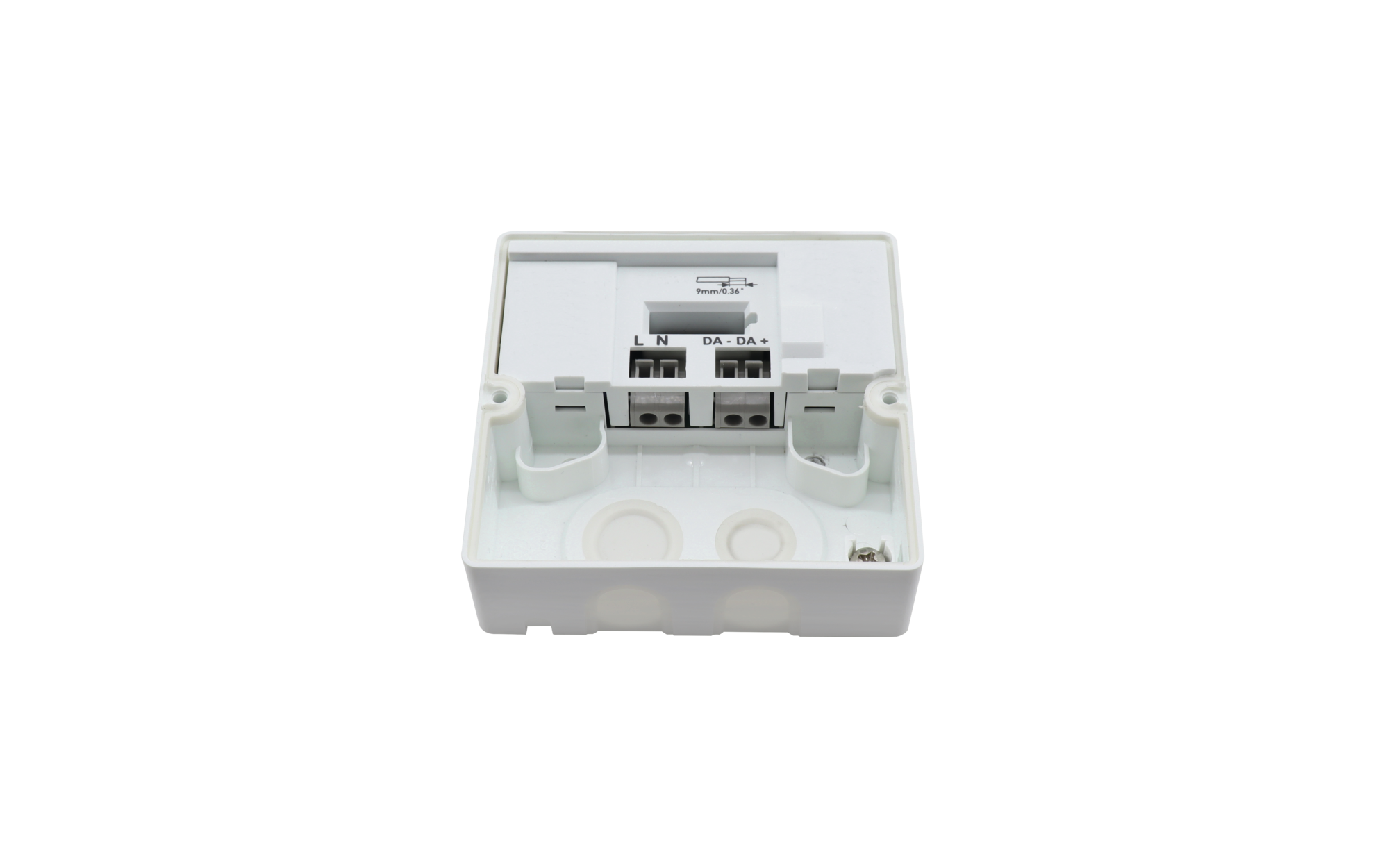

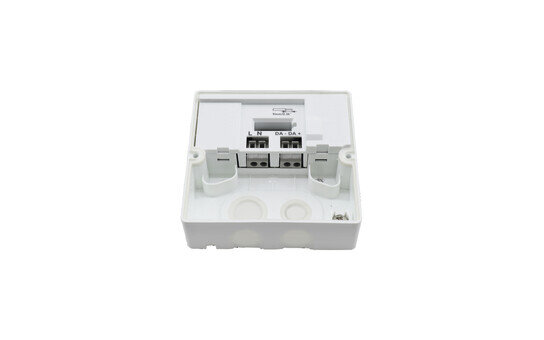

Licross® External Interface, External Interface MD, master,local controlinstallation type: surface-mounted, installation location: to the ceiling, to the luminaire, of plastic, protection rating (complete): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, VDE, voltage: 230V, voltage type: AC, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details


Key data

Product type base module
Product name Licross® External Interface
Order No. 59US1FCMA


Certificates, Standards

Protection rating IP54
Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+50°C
Certification, designation CE, VDE


Material, Colour

housing plastic, white, square
Colour specification white


Mounting

Mounting method, mounting location surface-mounted, to the ceiling, to the luminaire


Electrical connection

Nominal voltage 230V, 50Hz, AC


Dimensions, Weight

Length 83mm
Width 83mm
Height 28mm
Weight 0.1kg

Product type
base module

Product name
Licross® External Interface

Order No.
59US1FCMA

Protection rating
IP54

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-20..+50°C

Certification, designation
CE, VDE

housing
plastic, white, square

Colour specification
white

Mounting method, mounting location
surface-mounted, to the ceiling, to the luminaire

Nominal voltage
230V, 50Hz, AC

Length
83mm

Width
83mm

Height
28mm

Weight
0.1kg
