Article lighting management components

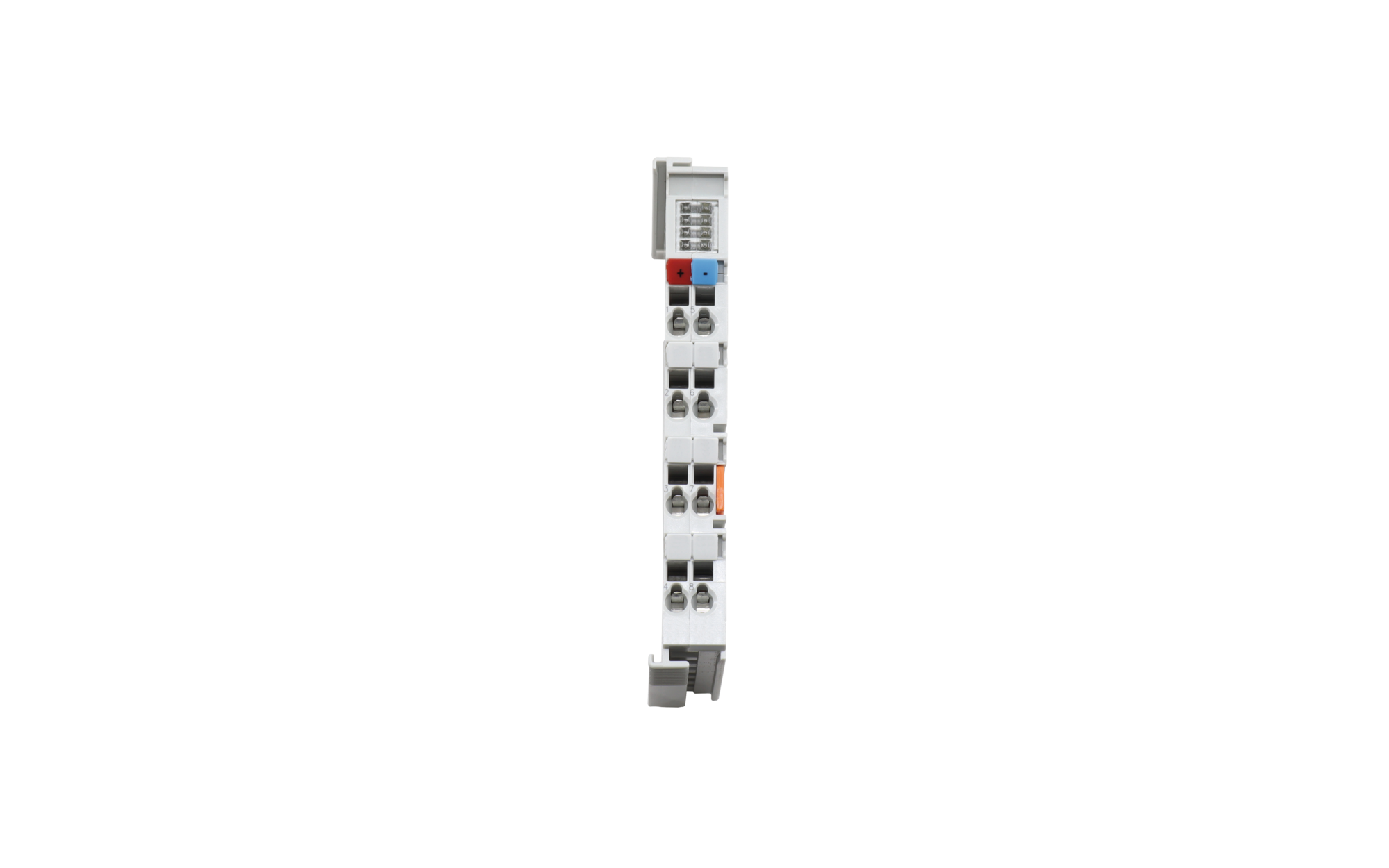

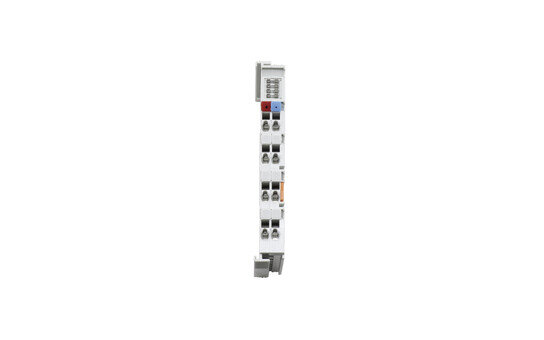

Product name SITECO Connect I/O
Protection rating IP20
Weight 0.1kg

SITECO Connect I/O, power measurement terminal, installation type: recessed, installation location: in an electrical distributor, protection rating (complete): IP20, certification: CE, voltage: 24V, voltage type: DC, 1 x K-Bus

Downloads

Technical product information
Data for application programs

Product details


Key data

Product type lighting management components
Product name SITECO Connect I/O
Order No. 5LZ930203


Certificates, Standards

Protection rating IP20
Temperature range (operation) -25..+60°C
Certification, designation CE


Material, Colour

Colour specification grey


Mounting

Mounting method, mounting location recessed, in an electrical distributor


Electrical connection

Nominal voltage 24V, DC

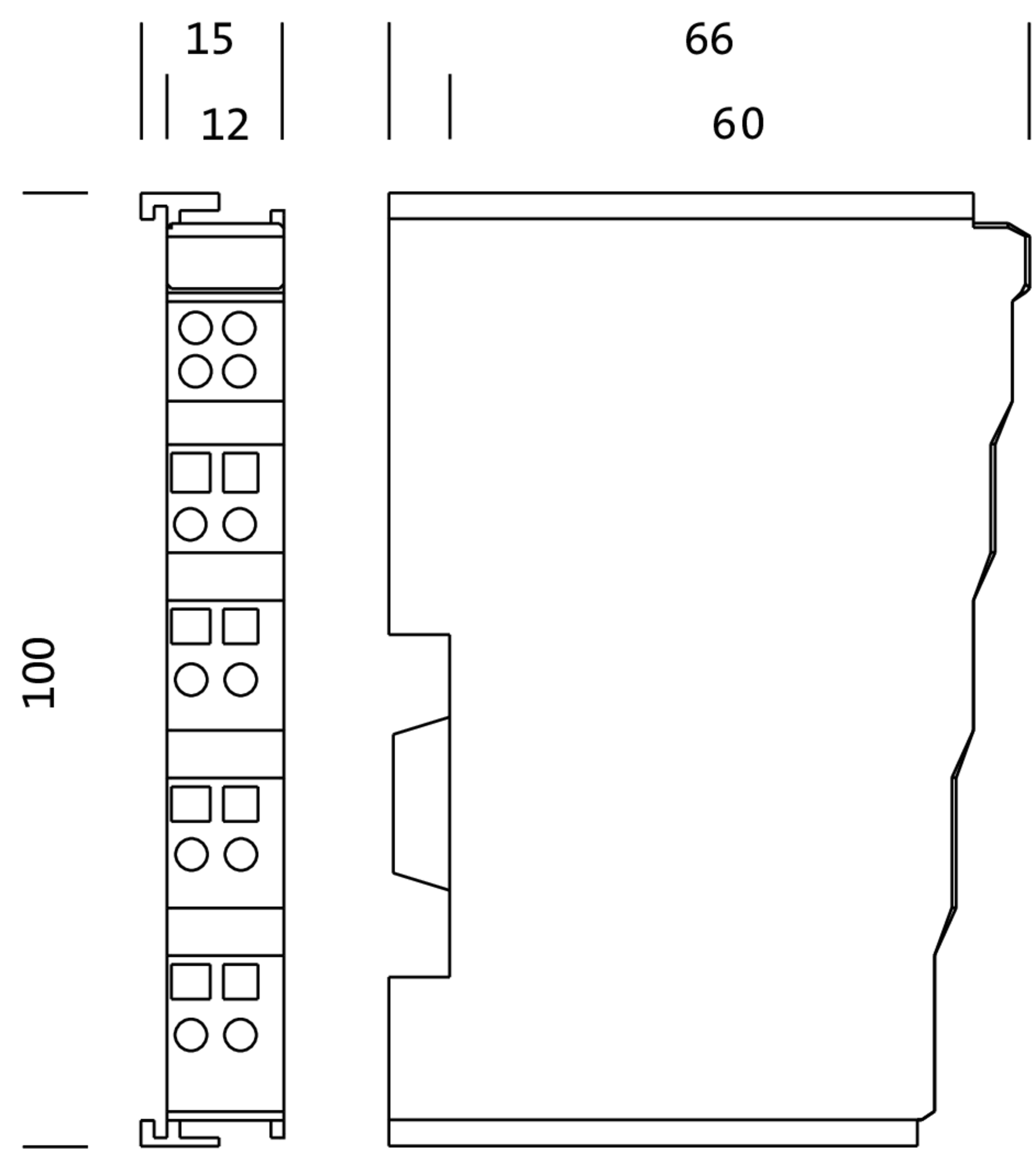

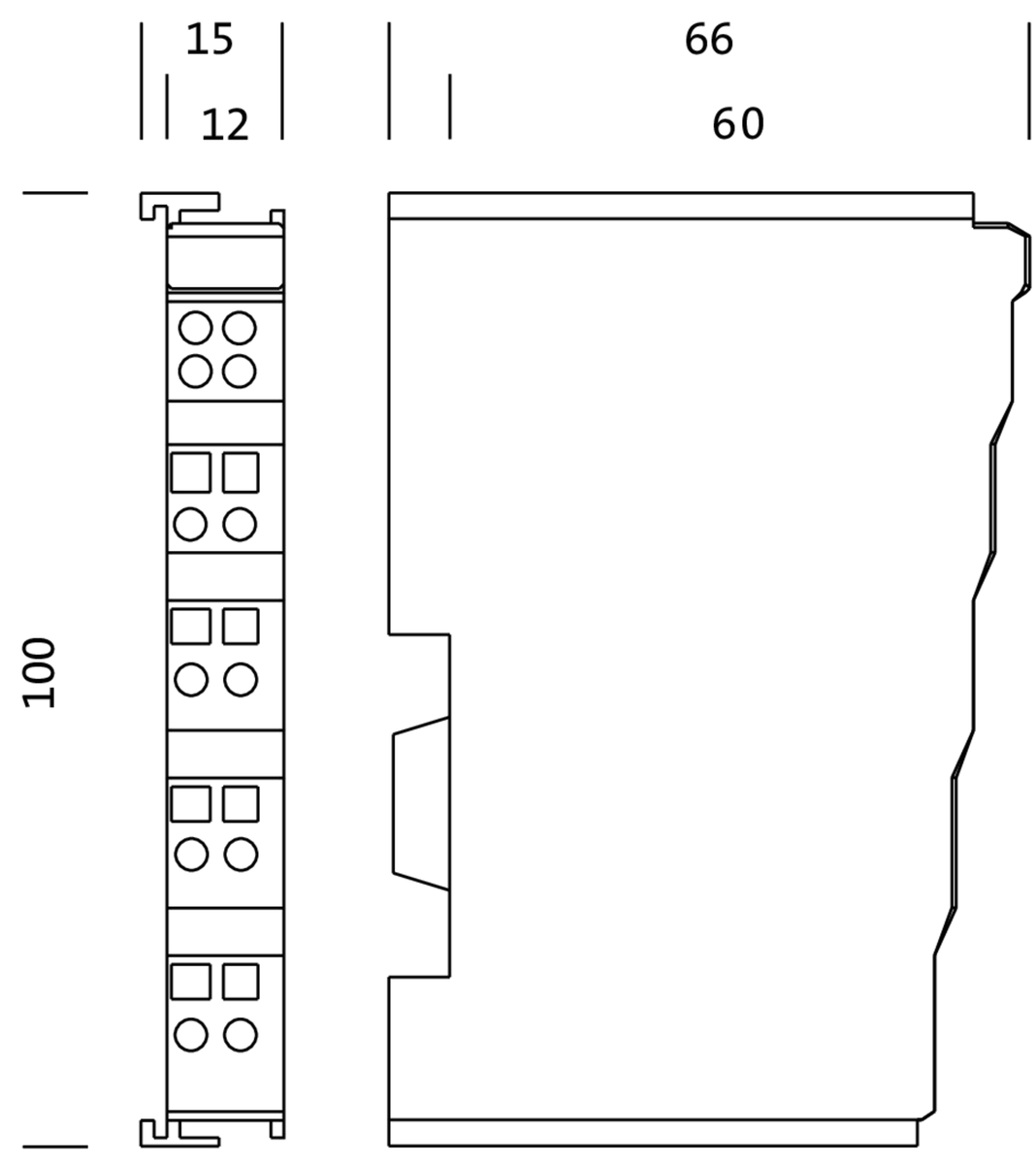

Dimensions, Weight

Length 100mm
Width 12mm
Height 68mm
Weight 0.1kg


Inputs

1x K-Bus
Option system current 115mA

Product type
lighting management components

Product name
SITECO Connect I/O

Order No.
5LZ930203

Protection rating
IP20

Temperature range (operation)
-25..+60°C

Certification, designation
CE

Colour specification
grey

Mounting method, mounting location
recessed, in an electrical distributor

Nominal voltage
24V, DC

Length
100mm

Width
12mm

Height
68mm

Weight
0.1kg

1x K-Bus

Option
system current 115mA
