Ordercode: 56TL1MDSPS2A

Article presence detector (slave)
Product name Licross® Trunking
Protection rating IP20
Weight 0.7kg

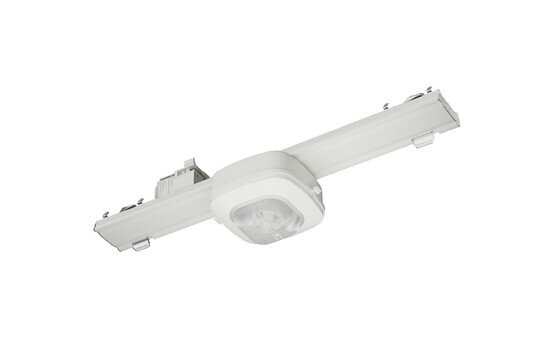

Licross® Trunking, sensor module PS2-S, slave,central controlinstallation location: to the Licross® trunking rail, of sheet steel, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, 1 x PIR movement sensor, 1 x light sensor, 1 x DALI, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details


Key data

System family Siteco Connect 11, SITECO Connect 22
Product type presence detector (slave)
Product name Licross® Trunking
Order No. 56TL1MDSPS2A


Control


Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE


Material, Colour

trunking rail adapter set sheet steel, coil coated, white
Colour specification white
housing plastic, white
Colour specification white


Mounting

Mounting height 2.5..10m


Dimensions, Weight

Length 500mm
Width 120mm
Weight 0.7kg


Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)
Detection angle 360°

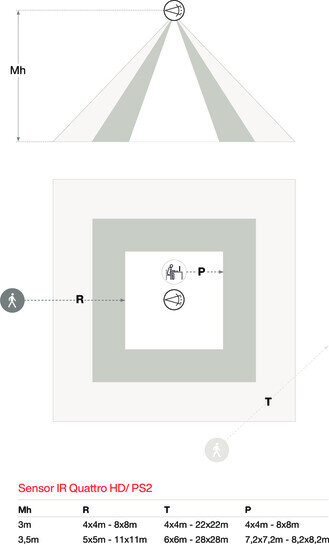

Detection range radial min./max. 5x 5m/11x 11m, tangential min./max. 6x 6m/28x 28m
Detection range min./max. 4.8x 4.8m/8.2x 8.2m
Feature square detection area


Outputs

1x DALI
Feature DALI, slave function, DALI current max. 6mA

System family
Siteco Connect 11, SITECO Connect 22

Product type
presence detector (slave)

Product name
Licross® Trunking

Order No.
56TL1MDSPS2A

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE

trunking rail adapter set
sheet steel, coil coated, white

Colour specification
white

housing
plastic, white

Colour specification
white

Mounting height
2.5..10m

Length
500mm

Width
120mm

Weight
0.7kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Detection angle
360°

Detection range
radial min./max. 5x 5m/11x 11m, tangential min./max. 6x 6m/28x 28m

Detection range
min./max. 4.8x 4.8m/8.2x 8.2m

Feature
square detection area

1x DALI

Feature
DALI, slave function, DALI current max. 6mA
