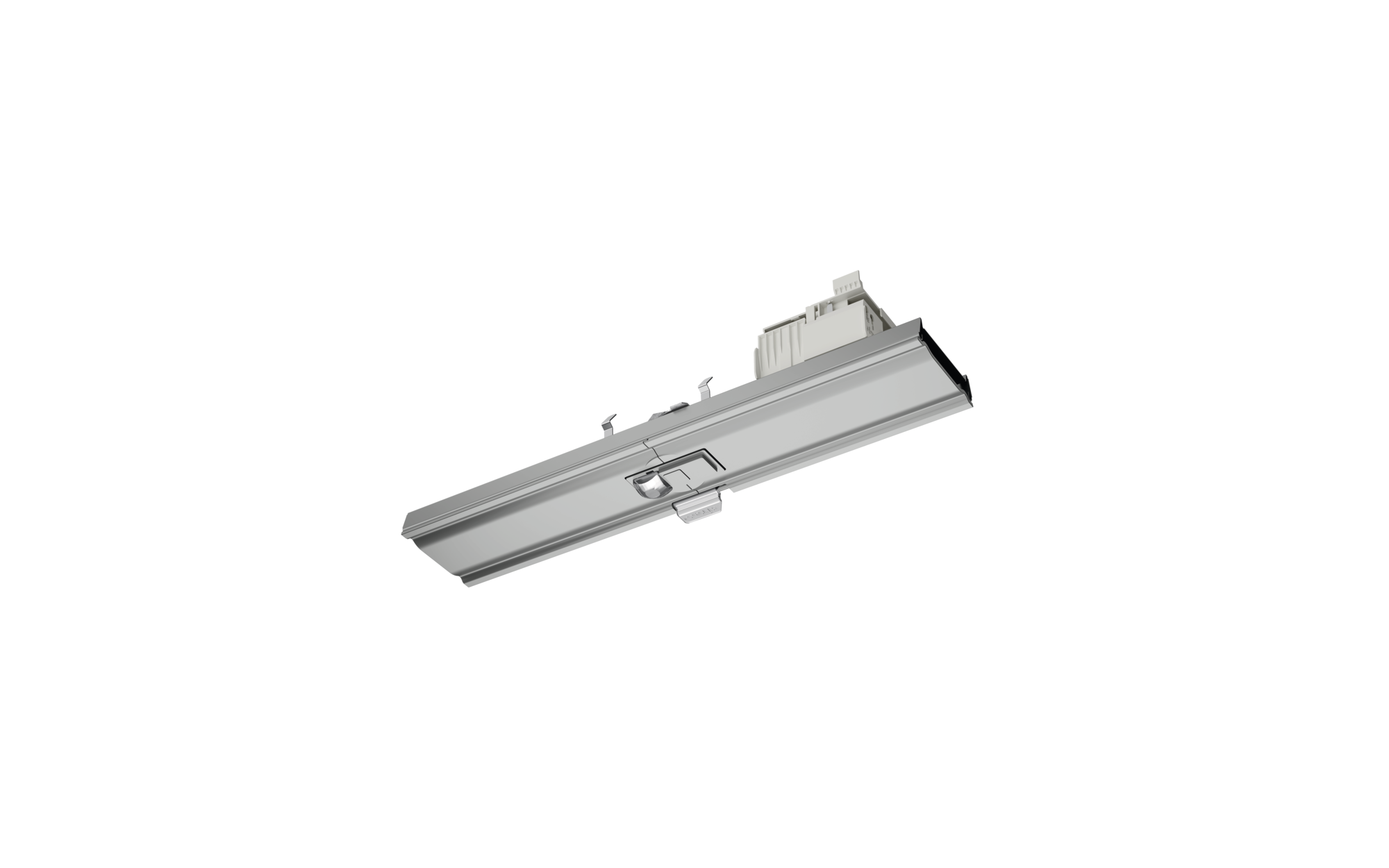

Ordercode: 56TL6MDSPC3A

Article presence detector (slave)
Product name Licross® Trunking
Protection rating IP20
Weight 0.3kg

Licross® Trunking, sensor module PC3-S, slave,central controlinstallation location: to the Licross® trunking rail, of sheet steel, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, 1 x PIR movement sensor, 1 x light sensor, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details


Key data

System family Siteco Connect 11, SITECO Connect 22
Product type presence detector (slave)
Product name Licross® Trunking
Order No. 56TL6MDSPC3A


Control


Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE


Material, Colour

trunking rail adapter set sheet steel, coil coated, silver
Colour specification silver


Mounting

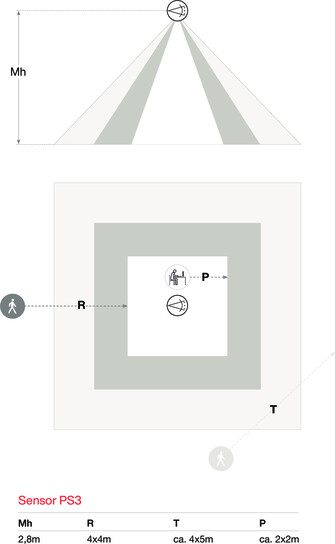

Mounting height 2.5..5m


Dimensions, Weight

Length 300mm
Width 66mm
Height 71mm
Weight 0.3kg


Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)

System family
Siteco Connect 11, SITECO Connect 22

Product type
presence detector (slave)

Product name
Licross® Trunking

Order No.
56TL6MDSPC3A

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE

trunking rail adapter set
sheet steel, coil coated, silver

Colour specification
silver

Mounting height
2.5..5m

Length
300mm

Width
66mm

Height
71mm

Weight
0.3kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)
