Streetlight SL 21 mini, direct asymmetric wide distribution, ST0.5a
Close
Article mast luminaire
Product name Streetlight SL 21 mini
Lamp LED
Rated luminous flux 5940lm
Luminous efficacy 147lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 40
Pnom end service life 41
Pred at 50% lumin. flux 19
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK09
Weight 5.8kg

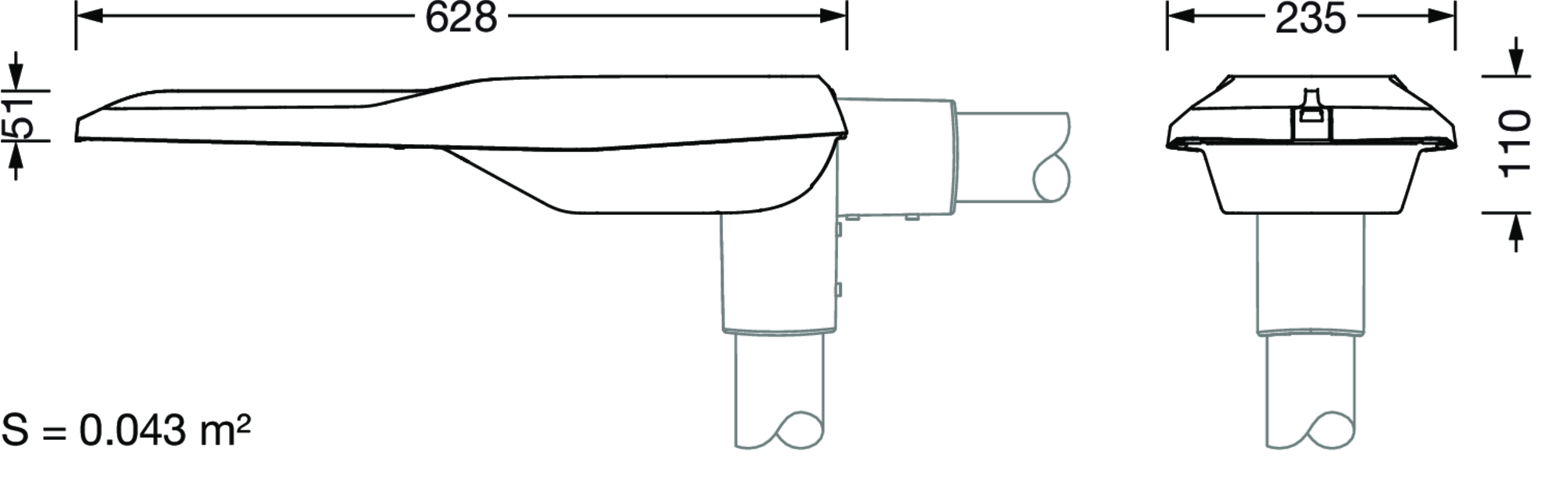

Streetlight SL 21 mini, mast luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: ST0.5a, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, side-entry, LED, High Power LED, rated luminous flux: 5.940lm, luminous efficacy: 147lm/W, light colour: 730, colour temperature: 3000K, control gear: ECG dimmable, control: flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, overheat protection, electronic power reduction, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 40W, end of lifetime: 41W, reduction: 19W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), length: 628mm, width: 235mm, height: 110mm, spigot size: 60/76mm (post-top) and 42/60/76mm (side-entry), mast flange for spigot size: 42mm: 5XC10008XM4, 60mm: 5XC10008XM2, 76/60mm: 5XC10108XM1, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK09, permissible operating ambient temperature for outdoor applications: -35..+50°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details
Photometric report / planning data
SL21mn
ST0.5a,5940lm730,DIM
Ordercode: 5XE2B32B08GA
