Order No.: 5EA3CM000001

Article luminaire controller

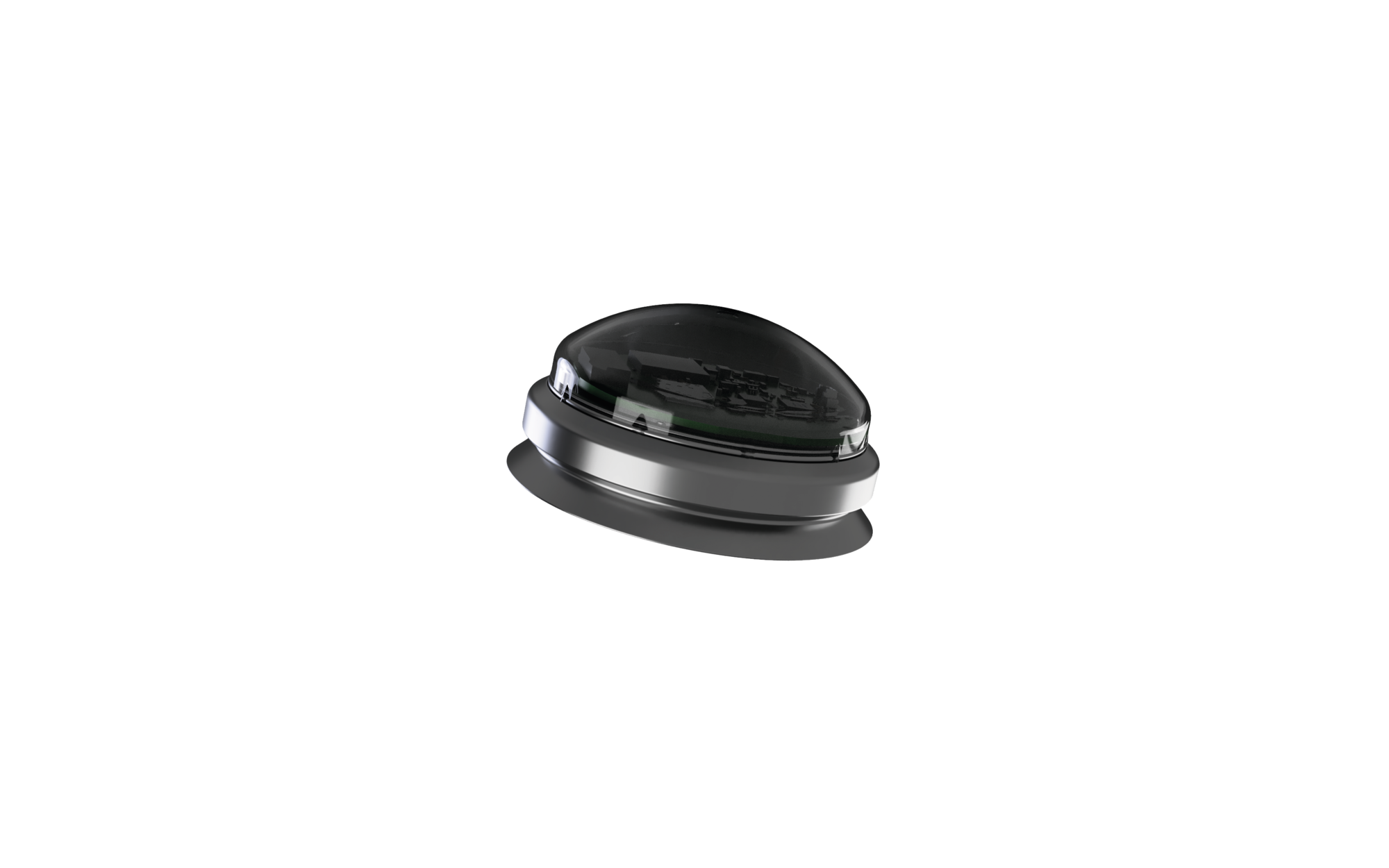

Product name SITECO Connect Wireless
Protection rating IP66
Weight 0.1kg

SITECO Connect WirelessSmart Plug Cellular, luminaire controller, communication: local mesh radio network, EGPRS, NB-IoT NB2, LTE Cat M1, 5G, 4G, 2G, 2.4GHz, D4i type A, control: remote setup and operation, local setting and operation with USB stick, local setting and operation with smartphone app, manual, by time, by timer, by weekday, by AstroDim calendar, by daylight, via API, with radio clock, optionally via radio push button, sensor technology: GALILEO, GLONASS, GNSS, GPS, inclination sensor, temperature sensor, daylight sensor, The usage fees for remote access via web application and mobile communications (LTE CAT M1 / ​​NB IoT NB2 / EGPRS) are included in the scope of delivery with a term of 5 years. This individually extendable runtime starts when the device QR code is scanned into a system, Smart Interface below and above, Logarithmic DALI dimming curve preset. Can be switched to linear via software, installation type: screw fastening, installation location: to the luminaire, Smart Interface above: Zhaga, Smart Interface below: Zhaga, of PBT, voltage: 24V, voltage type: DC, protection rating (complete): IP66, certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details


Key data

System family SITECO Connect 31 Wireless
Product type luminaire controller
Product name SITECO Connect Wireless
Order No. 5EA3CM000001


Control


Certificates, Standards

Protection rating IP66
Temperature range (operation) -40..+85°C
Standard according to Zhaga book 18
Certification, designation CE


Material, Colour

housing PBT, transparent, colour-backed, transparent
Colour specification transparent


Mounting

Mounting method, mounting location screw fastening, to the luminaire


Electrical connection

Nominal voltage 24V, DC


Dimensions, Weight

Diameter 80mm
Height 46mm
Weight 0.1kg

System family
SITECO Connect 31 Wireless

Product type
luminaire controller

Product name
SITECO Connect Wireless

Order No.
5EA3CM000001

Protection rating
IP66

Temperature range (operation)
-40..+85°C

Standard
according to Zhaga book 18

Certification, designation
CE

housing
PBT, transparent, colour-backed, transparent

Colour specification
transparent

Mounting method, mounting location
screw fastening, to the luminaire

Nominal voltage
24V, DC

Diameter
80mm

Height
46mm

Weight
0.1kg
