Article sensor

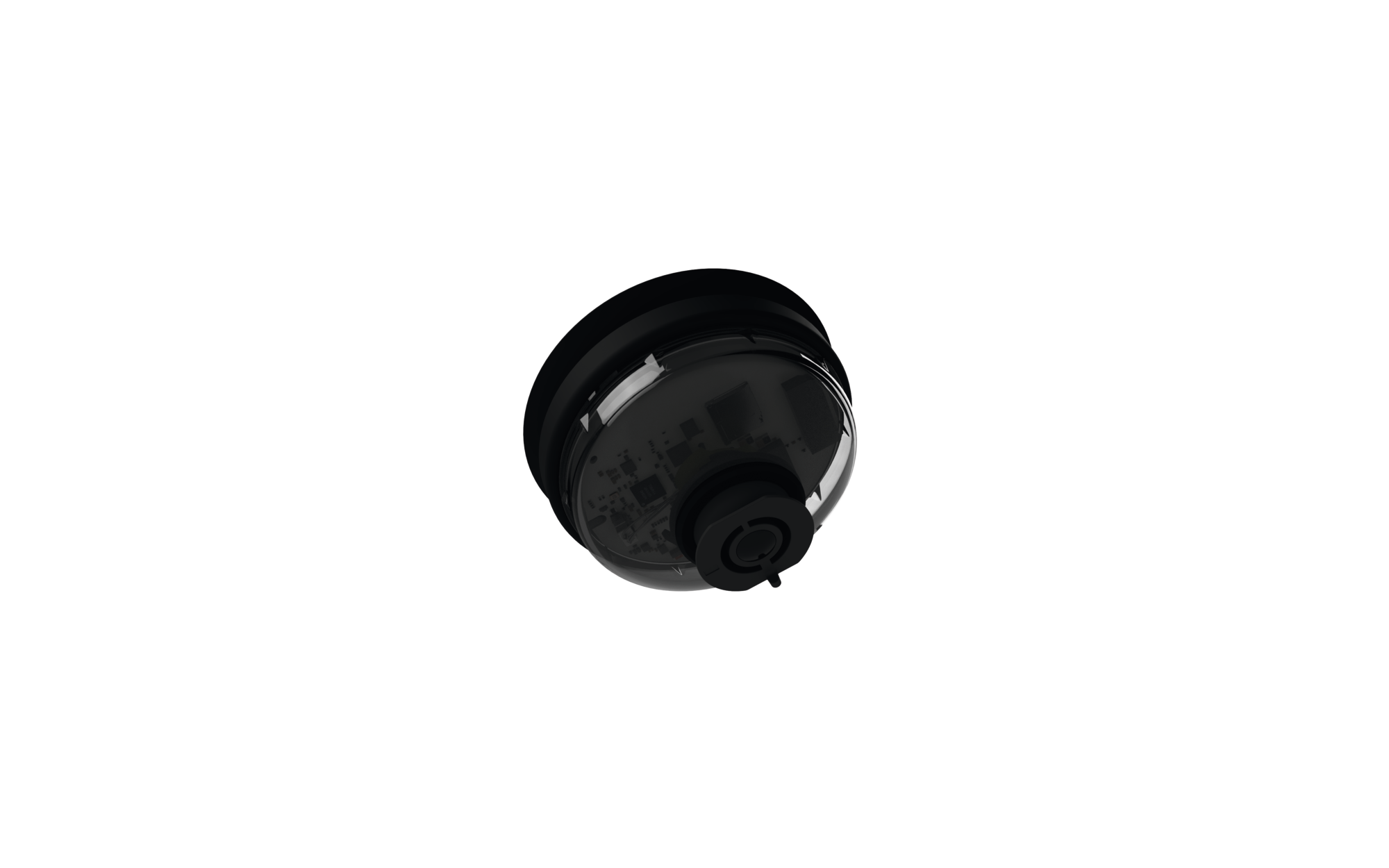

Product name SITECO Connect Wireless
Protection rating IP66
Weight 0.1kg

SITECO Connect WirelessSmart Plug Cellular Motion Low, Smart Interface below, installation type: screw fastening, installation location: to the luminaire, of plastic, voltage: 24V, voltage type: DC, D4i, local mesh radio network, EGPRS, NB-IoT NB2, LTE Cat M1, 5G, 4G, 2G, 2.4GHz, remote setup and operation, local setting and operation with USB stick, local setting and operation with smartphone app, manual, by time, by timer, by weekday, by AstroDim calendar, by daylight, by movement, via API, with radio clock, optionally via radio push button, 1 PIR movement sensor, daylight sensor, temperature sensor, inclination sensor, GPS, GNSS, GLONASS, GALILEO, PIR movement sensor, brightness sensor, radio, 2.4GHz, protection rating (complete): IP66, certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details


Key data

Product type sensor
Product name SITECO Connect Wireless
Order No. 5EA40ELC01


Control


Certificates, Standards

Protection rating IP66
Temperature range (operation) -40..+85°C
Standard according to Zhaga book 18
Certification, designation CE


Material, Colour

housing plastic, transparent, colour-backed, dark grey
Colour specification dark grey


Mounting

Mounting method, mounting location screw fastening, to the luminaire
Mounting height 0..6m


Electrical connection

Nominal voltage 24V, DC


Dimensions, Weight

Weight 0.1kg


Inputs

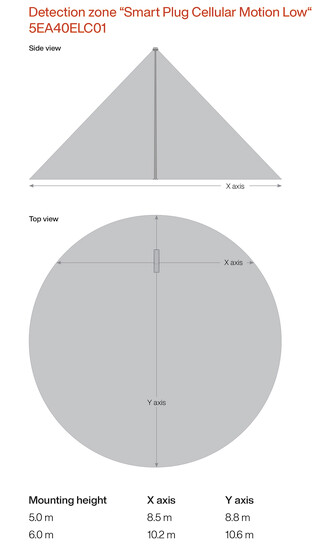

PIR movement sensor
Detection range D max. 11m

Product type
sensor

Product name
SITECO Connect Wireless

Order No.
5EA40ELC01

Protection rating
IP66

Temperature range (operation)
-40..+85°C

Standard
according to Zhaga book 18

Certification, designation
CE

housing
plastic, transparent, colour-backed, dark grey

Colour specification
dark grey

Mounting method, mounting location
screw fastening, to the luminaire

Mounting height
0..6m

Nominal voltage
24V, DC

Weight
0.1kg

PIR movement sensor

Detection range
D max. 11m
