Motion 2PIR

Close
Order No.: 5EA40M000201
Remember articleRemember article

Article sensor
Product name SITECO Connect Wireless
Protection rating IP66
Impact resistance IK08
Weight 0.1kg

SITECO Connect WirelessMotion 2PIR, sensor, communication: D4i type B, control: by daylight, by movement, sensor technology: 2 PIR movement sensors, daylight sensor, mandatory accessory: Smart Plug Standard 5EA3AM000001, Smart Plug Cellular 5EA3CM000001 or Smart Plug Casambi 5EA3TDC01, installation type: screw fastening, installation location: to the luminaire, of PBT, voltage: 24V, voltage type: DC, 2 x PIR movement sensor, 1 x protection rating (complete): IP66, certification: CE, UKCA, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect 31 Wireless
Product type sensor
Product name SITECO Connect Wireless
Order No. 5EA40M000201

Control

Certificates, Standards

Protection rating IP66
Impact resistance IK08
Temperature range (operation) -25..+50°C
Standard according to Zhaga book 18
Certification, designation CE, UKCA

Material, Colour

housing PBT, grey
Colour specification grey

Mounting

Mounting method, mounting location screw fastening, to the luminaire
Mounting height 4..8m

Electrical connection

Nominal voltage 24V, DC

Dimensions, Weight

Diameter 46mm
Height 57mm
Weight 0.1kg

Inputs

2x PIR movement sensor

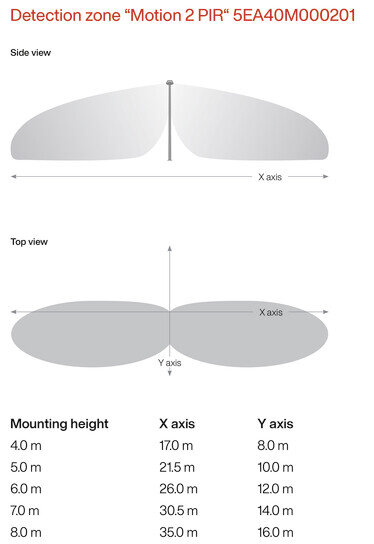

Detection range max. 35x16m

System family
SITECO Connect 31 Wireless

Product type
sensor

Product name
SITECO Connect Wireless

Order No.
5EA40M000201

Protection rating
IP66

Impact resistance
IK08

Temperature range (operation)
-25..+50°C

Standard
according to Zhaga book 18

Certification, designation
CE, UKCA

housing
PBT, grey

Colour specification
grey

Mounting method, mounting location
screw fastening, to the luminaire

Mounting height
4..8m

Nominal voltage
24V, DC

Diameter
46mm

Height
57mm

Weight
0.1kg

2x PIR movement sensor

Detection range
max. 35x16m
