Article rail insert

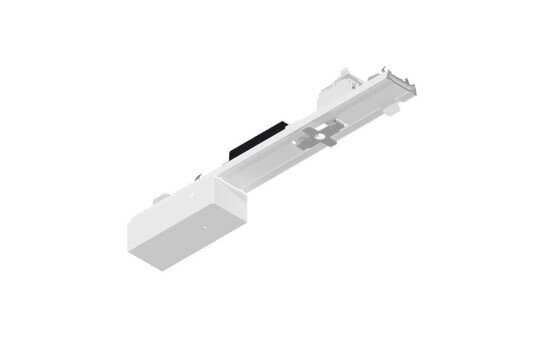

Product name SITECO Connect IP Gen.1
Protection rating IP40
Weight 1.0kg

SITECO Connect IP, rail insert, PoE universal adapter,with plug, 6-pole, with phase selection, mains connection: 230V, AC, 50Hz, adapter, of sheet steel, coil coated, traffic white (RAL 9016), length: 500 mm, width: 64 mm, height: 65mm, protection rating (complete): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details


Key data

Product type rail insert
Product name SITECO Connect IP Gen.1
Order No. 56TL1UN00A


Supplement


Certificates, Standards

Protection rating IP40
Insulation class insulation class I (protective earthing)
Certification, designation CE


Material, Colour

adapter sheet steel, coil coated, traffic white (RAL 9016)
Colour specification traffic white (RAL 9016)


Electrical connection

Connection plug, 6-pole, with phase selection
Nominal voltage 230V, 50Hz, AC


Dimensions, Weight

Length 500mm
Width 64mm
Height 65mm
Weight 1.0kg

Product type
rail insert

Product name
SITECO Connect IP Gen.1

Order No.
56TL1UN00A

Protection rating
IP40

Insulation class
insulation class I (protective earthing)

Certification, designation
CE

adapter
sheet steel, coil coated, traffic white (RAL 9016)

Colour specification
traffic white (RAL 9016)

Connection
plug, 6-pole, with phase selection

Nominal voltage
230V, 50Hz, AC

Length
500mm

Width
64mm

Height
65mm

Weight
1.0kg
