51SL64DA43B

Close
Ordercode: 51SL64DA43B
Remember productRemember product

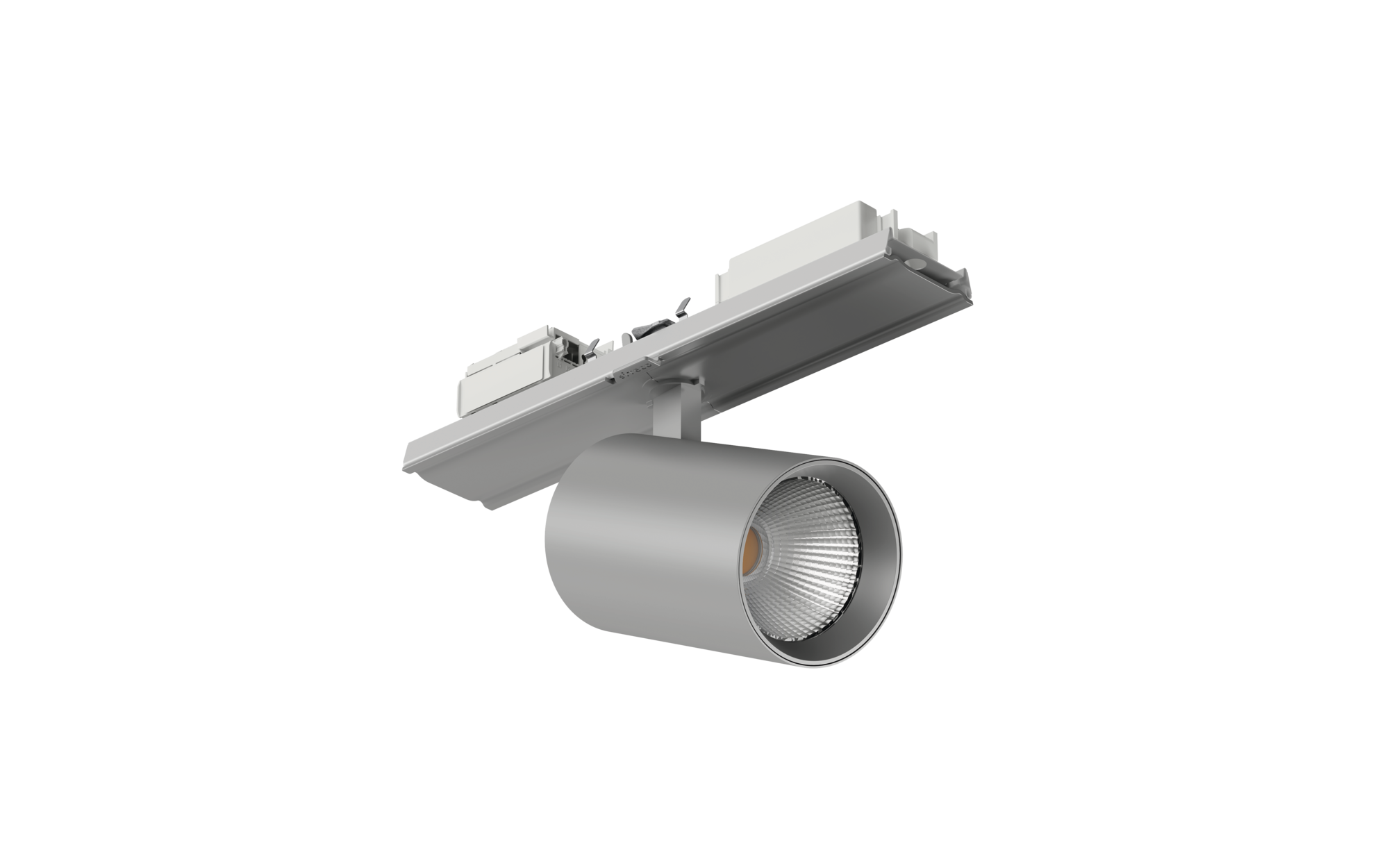

Article directional spotlight
Product name Licross® Spot 31
Lamp LED
Rated luminous flux 3720lm
Luminous efficacy 135lm/W
Colour temperature 4000K
Colour rendering CRI > 90
Rated input power 28.5W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 1.2kg

Licross® Spot 31, directional spotlight, light control with lens, of plastic, LED rated luminous flux: 3.720lm, light colour: 940, with plug, 5-pole, mains connection: 220..240V, AC, 50/60Hz, of aluminium, metallic grey (RAL 9006), length: 300mm, diameter: 90mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type directional spotlight
Product name Licross® Spot 31
Order No. 51SL64DA43B

Lighting technology

Light control lens of plastic
Beam angle 40°
Symmetry symmetric

Lamps

Lamps with LED
Rated luminous flux 3720lm
Luminous efficacy 135lm/W
Colour temperature 4000K
Colour rendering index CRI > 90
Light colour 940
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 28.5W

Operating device

Control DALI

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Certification, designation CE

Material, Colour

Colour specification metallic grey (RAL 9006)

Mounting

Mounting method, mounting location slip-in mounting, in the Licross® trunking rail
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 5-pole
Nominal voltage 220..240V, 50/60Hz, AC

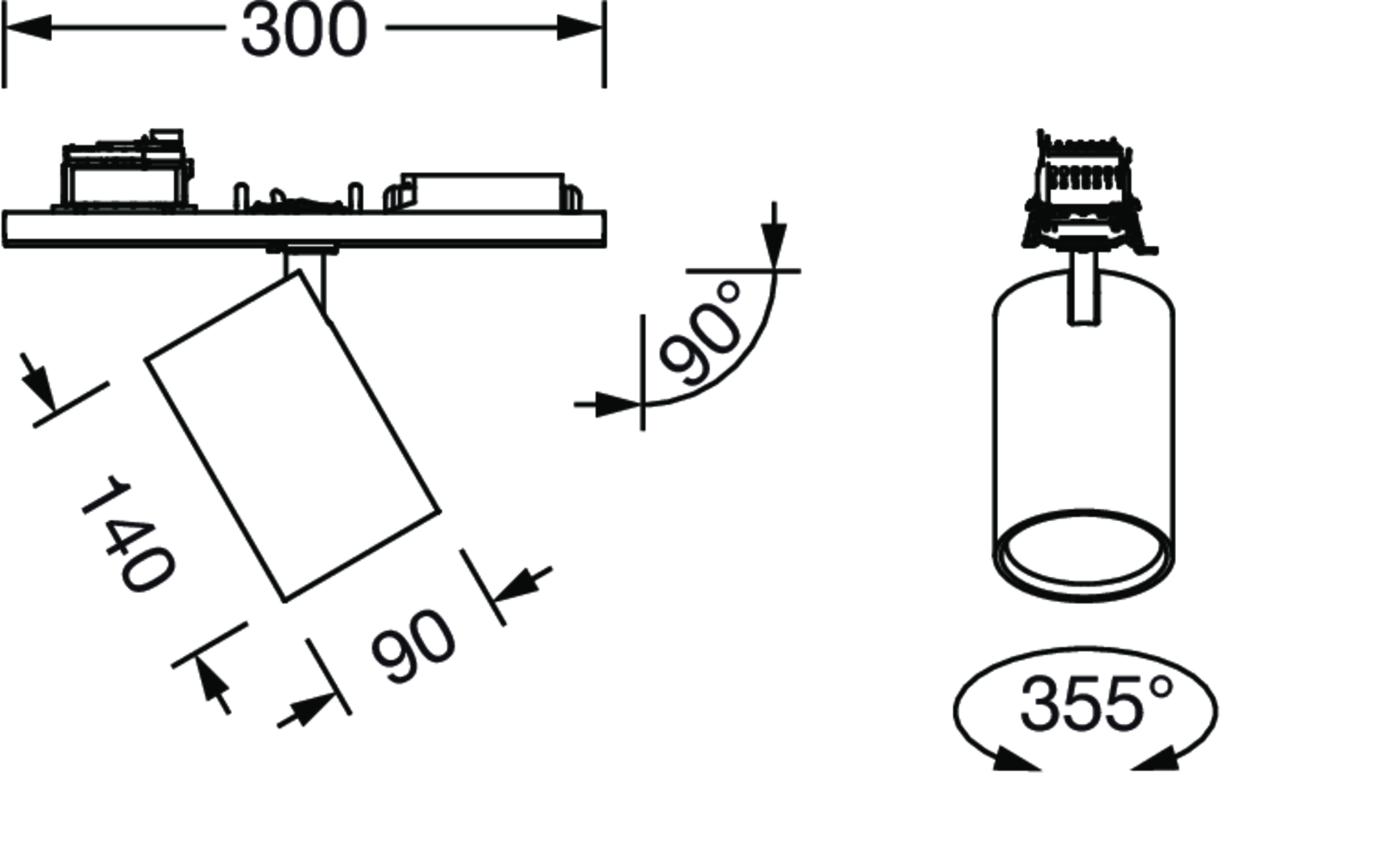

Dimensions, Weight

Length 300mm
Diameter 90mm
Height 133mm
Weight 1.2kg

Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
directional spotlight

Product name
Licross® Spot 31

Order No.
51SL64DA43B

Light control
lens of plastic

Beam angle
40°

Symmetry
symmetric

Lamps
with LED

Rated luminous flux
3720lm

Luminous efficacy
135lm/W

Colour temperature
4000K

Colour rendering index
CRI > 90

Light colour
940

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
28.5W

Control
DALI

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Certification, designation
CE

Colour specification
metallic grey (RAL 9006)

Mounting method, mounting location
slip-in mounting, in the Licross® trunking rail

Supplement
only suitable for use in indoor areas

Connection
plug, 5-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
300mm

Diameter
90mm

Height
133mm

Weight
1.2kg

Rated service life
50000h (L80/B50) at AT = 25°C

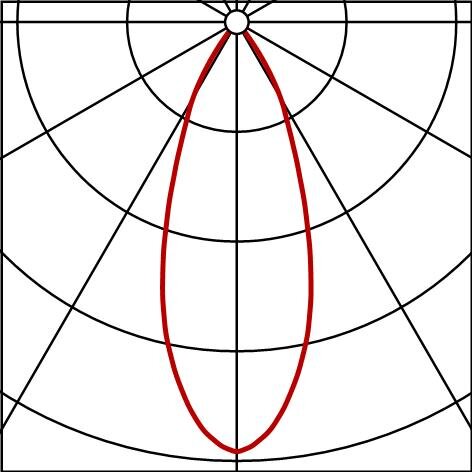

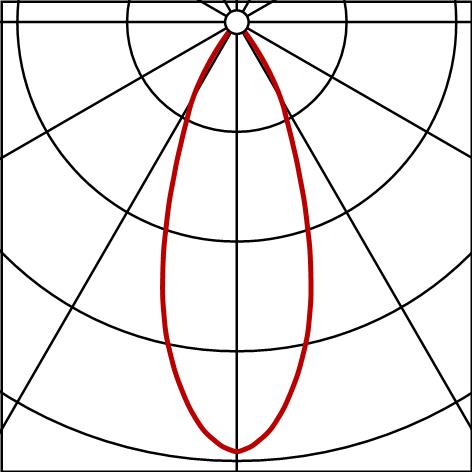

Photometric report / planning data

LicSp31
40°,3720lm940,DA,sr
Lamps: 1x LED
Ordercode: 51SL64DA43B

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
