Article luminaire insert

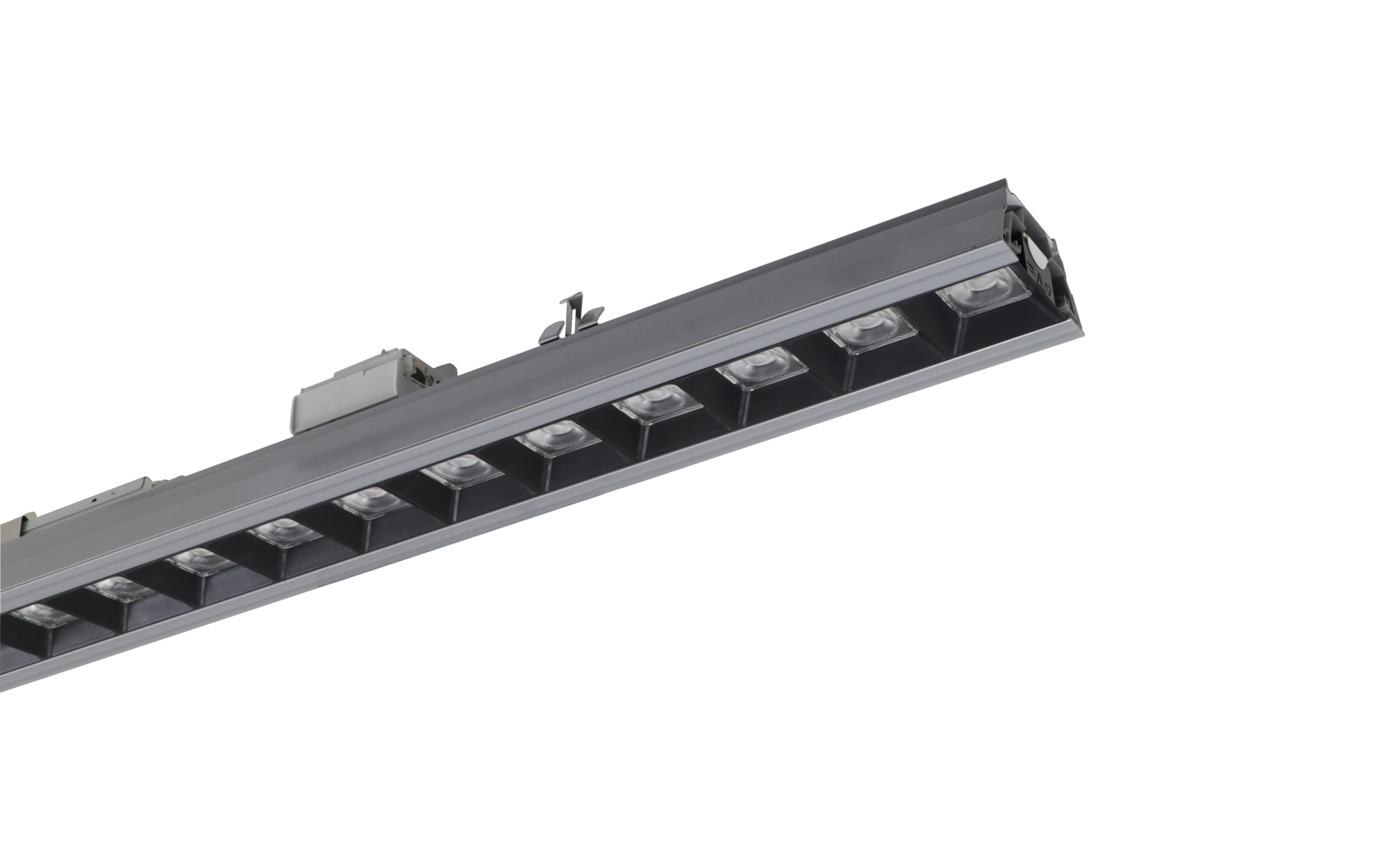

Product name Licross® 21 Silica
Lamp LED
Rated luminous flux 6340lm
Luminous efficacy 163lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 39W
Service life 75000h (L80/B50) at AT = 25°C
Protection rating IP40
Impact resistance IK03
Weight 2.7kg

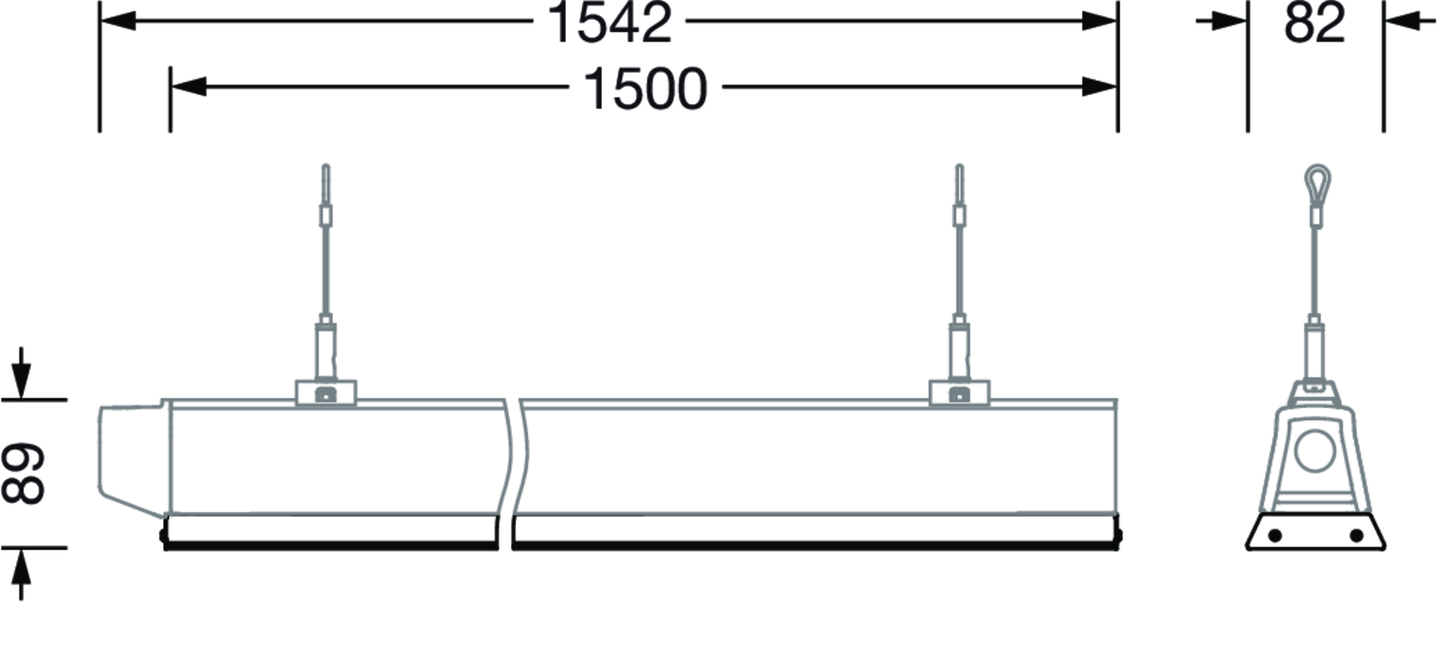

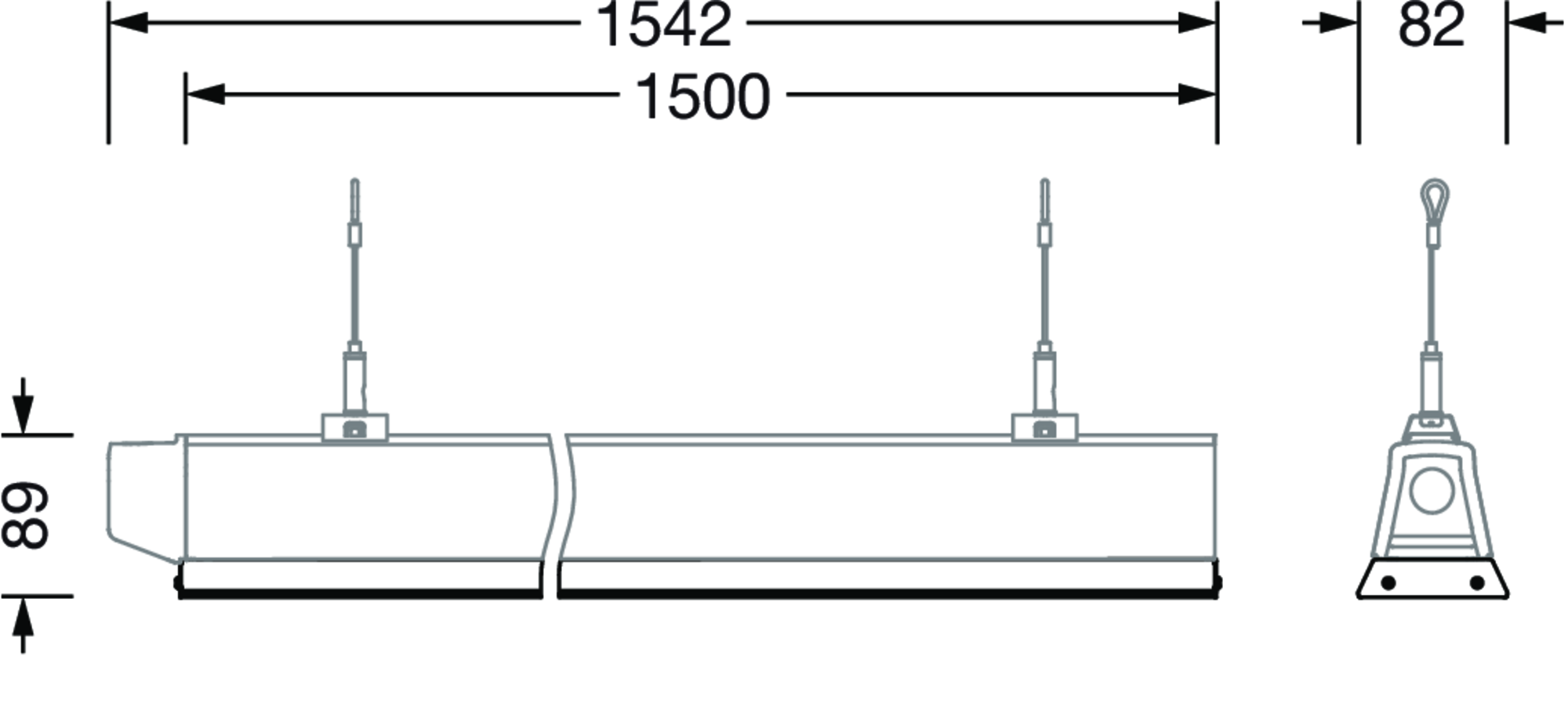

Licross® 21 Silica, luminaire insert, of sheet steel, galvanised, coil coated, silver, length: 1.500mm, width: 82mm, height: 86mm, LED rated luminous flux: 6.340lm, light colour: 840, control gear: DALI 2, with plug, 5-pole, with phase selection, mains connection: 220..240V, AC, 50/60Hz, rated input power: 39W, internal wiring halogen-free, primary light control with lens, of PMMA, primary anti-glare with darklight reflector, of PC, CAT 2 (L<= 1000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D if used in an environment without relevant dust loads, impact resistance: IK03, permissible ambient temperature for indoor applications: -25..+45°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

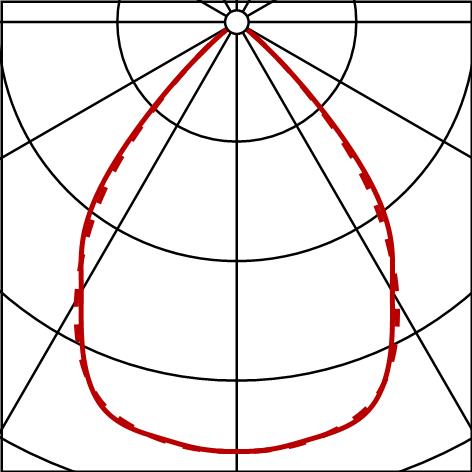

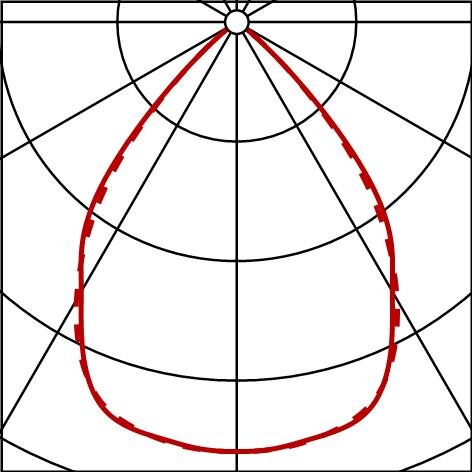

Photometric report / planning data
Lic21Si
LI,wd,6340lm840,DA2,sr
Lamps: 1x LED
Ordercode: 51TS12DN4ZM00583XX
