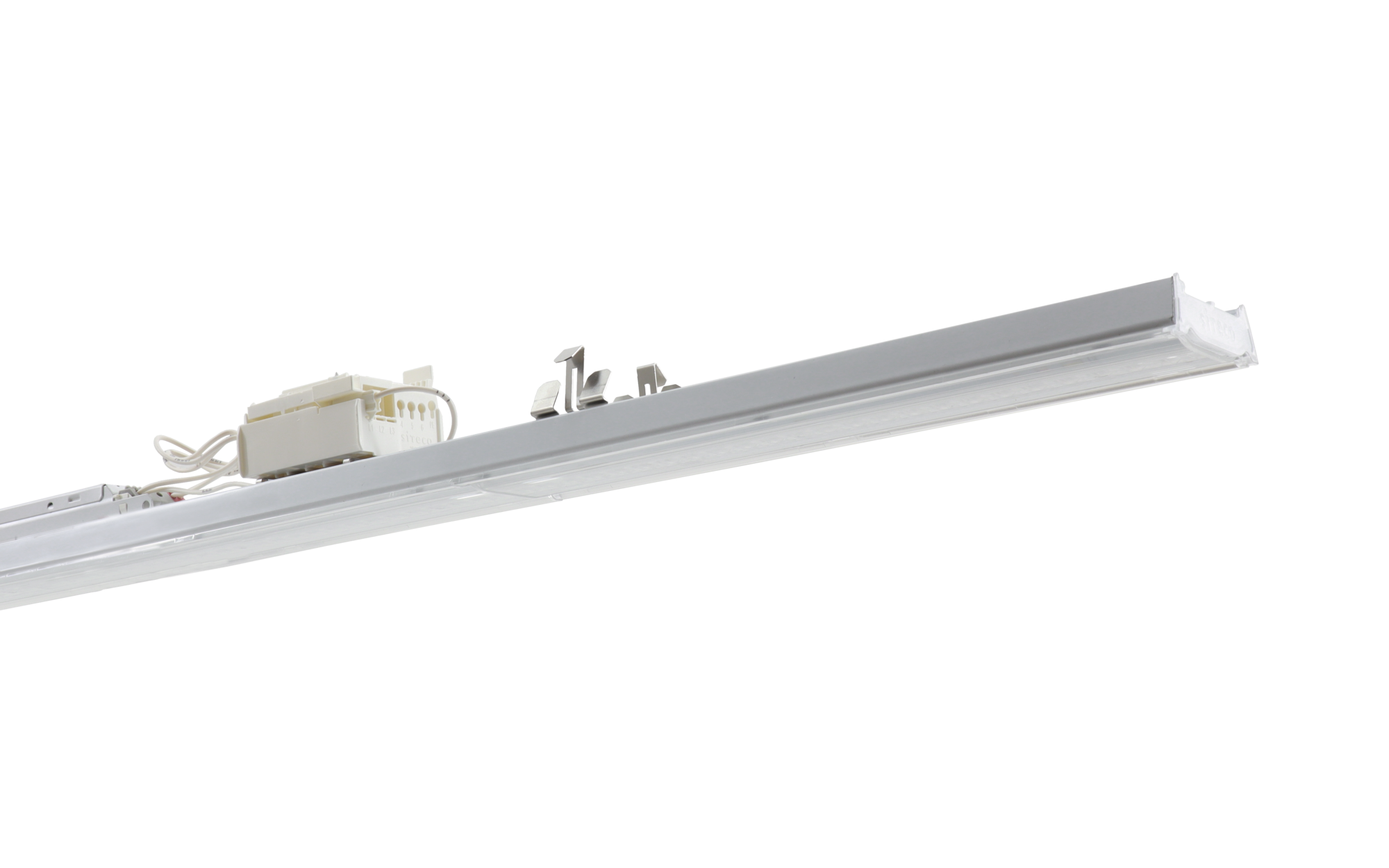

Licross® 21 Recessed MO, with spring catch, symmetric narrow distribution, IP40, AC, with self-test function according to 60598-2-22, 2-rod battery, charging phase on R (wire number 6), with self-contained supply, 3h

Close
Order No.: 52TL11DN68XG3S
Remember articleRemember article

Article luminaire insert
Product name Licross® 21 Recessed MO
Lamp LED
Rated luminous flux 8000lm
Luminous efficacy 173lm/W
Colour temperature 6500K
Colour rendering CRI > 80
Rated input power 46W
Service life 70000h (L80/B50) at AT = ta max, 75000h (L80/B50) at AT = 25°C
Protection rating IP40
Impact resistance IK06
Weight 1.9kg

Licross® 21 Recessed MO, luminaire insert, of sheet steel, galvanised, coil coated, white, length: 1.500mm, width: 66mm, height: 67mm, LED rated luminous flux: 8.000lm, light colour: 865, control gear: DALI 2 (for two DALI lines), with plug, 6-pole, with phase selection, for trunking rail, 14-core, mains connection: 220..240V, AC, 50/60Hz, rated input power: 46W, for emergency light function, internal wiring halogen-free, for trunking rail, 14-core, converter,control gear: single battery element, battery: LiFePO4, 9Ah, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D if used in an environment without relevant dust loads with corresponding accessories, impact resistance: IK06, permissible ambient temperature for indoor applications: +5..+35°C, standard: EN 60598-2-22, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type luminaire insert
Product name Licross® 21 Recessed MO
Order No. 52TL11DN68XG3S

Component 1

Lighting technology
Cover cover

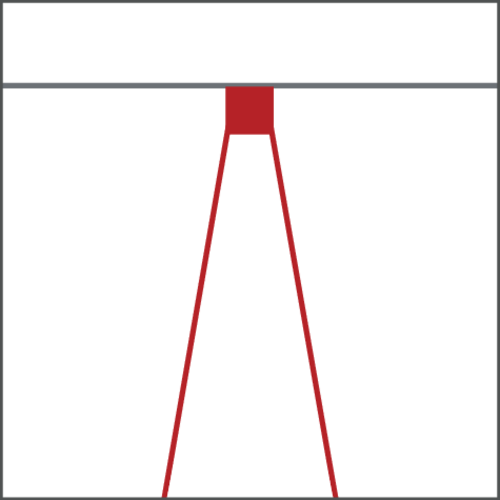

Beam angle narrow distribution
Symmetry symmetric
Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps
Lamps with LED
Rated luminous flux 8000lm
Luminous efficacy 173lm/W
Colour temperature 6500K
Colour rendering index CRI > 80
Light colour 865
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 46W
Supplement for emergency light function, internal wiring halogen-free, for trunking rail, 14-core

Operating device
Control DALI 2 (for two DALI lines)

Component 2

Lamps
Supplement with self-test function according to 60598-2-22, 2-rod battery, charging phase on R (wire number 6)

Operating device
Control gear single battery element
Battery LiFePO4
Nominal operating time 3h

Certificates, Standards

Protection rating IP40
Insulation class insulation class I (protective earthing)
Impact resistance IK06
Protection symbol D if used in an environment without relevant dust loads with corresponding accessories
Temperature range (operation) +5..+35°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05
Standard EN 60598-2-22
Certification, designation CE, UKCA

Material, Colour

Licross® LED insert sheet steel, galvanised, coil coated, white
Colour specification white
Cover cover of PMMA

Mounting

Mounting method, mounting location slip-in mounting, in the Licross® trunking rail
Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 6-pole, with phase selection, for trunking rail, 14-core
Nominal voltage 220..240V, 50/60Hz, AC

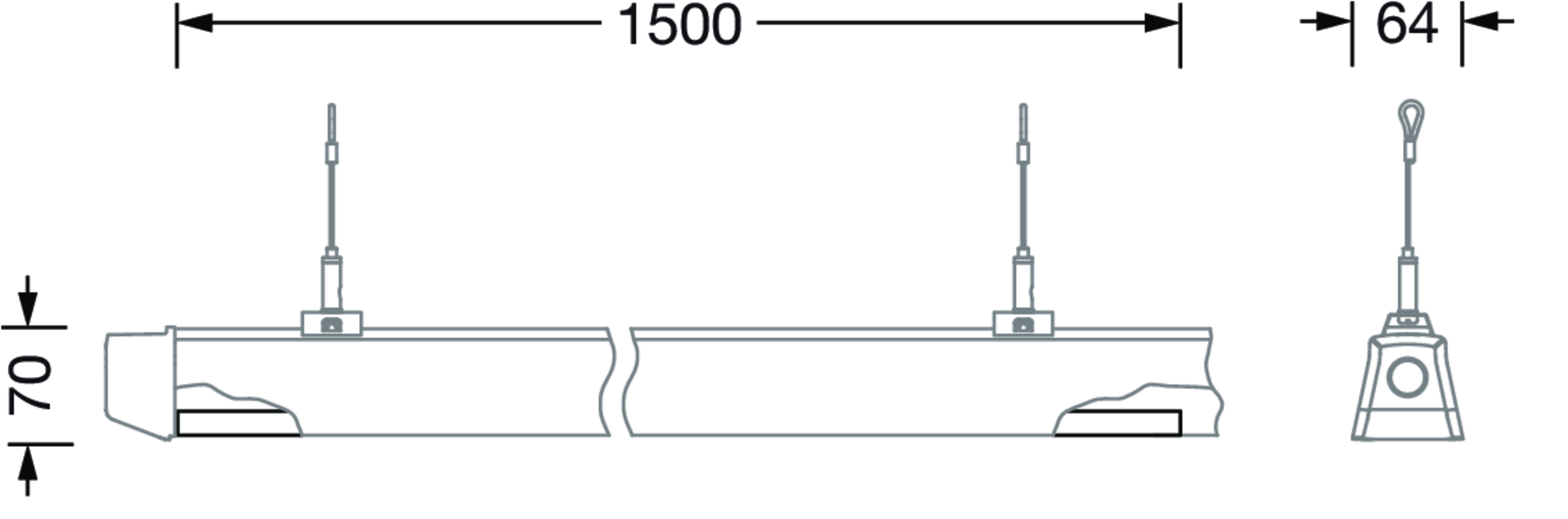

Dimensions, Weight

Length 1500mm
Width 66mm
Height 67mm
Weight 1.9kg

Service life

Rated service life 70000h (L80/B50) at AT = ta max, 75000h (L80/B50) at AT = 25°C

Product type
luminaire insert

Product name
Licross® 21 Recessed MO

Order No.
52TL11DN68XG3S

Lighting technology

Cover
cover

Beam angle
narrow distribution

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps

Lamps
with LED

Rated luminous flux
8000lm

Luminous efficacy
173lm/W

Colour temperature
6500K

Colour rendering index
CRI > 80

Light colour
865

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
46W

Supplement
for emergency light function, internal wiring halogen-free, for trunking rail, 14-core

Operating device

Control
DALI 2 (for two DALI lines)

Lamps

Supplement
with self-test function according to 60598-2-22, 2-rod battery, charging phase on R (wire number 6)

Operating device

Control gear
single battery element

Battery
LiFePO4

Nominal operating time
3h

Protection rating
IP40

Insulation class
insulation class I (protective earthing)

Impact resistance
IK06

Protection symbol
D if used in an environment without relevant dust loads with corresponding accessories

Temperature range (operation)
+5..+35°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, LABS conformity tested according to VDMA 24364:2018-05

Standard
EN 60598-2-22

Certification, designation
CE, UKCA

Licross® LED insert
sheet steel, galvanised, coil coated, white

Colour specification
white

Cover
cover of PMMA

Mounting method, mounting location
slip-in mounting, in the Licross® trunking rail

Arrangement
single/continuous arrangement

Supplement
only suitable for use in indoor areas

Connection
plug, 6-pole, with phase selection, for trunking rail, 14-core

Nominal voltage
220..240V, 50/60Hz, AC

Length
1500mm

Width
66mm

Height
67mm

Weight
1.9kg

Rated service life
70000h (L80/B50) at AT = ta max, 75000h (L80/B50) at AT = 25°C

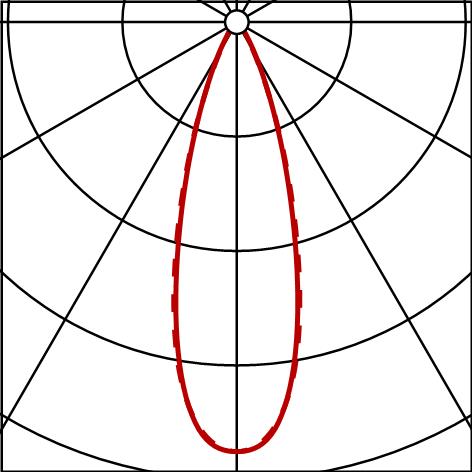

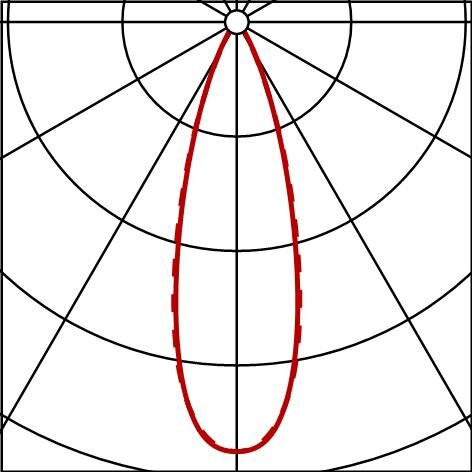

Photometric report / planning data

Lic21Re
nrrw,8000lm865,DA2,IP40,L1500,wh
Lamps: 1x LED, factory setting AC mode: AC-mode
Order No.: 52TL11DN68XG3S

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
2D symbol (DXF)
Product versions/accessory

Lic21Re
Lamps: 1x LED, emergency light operation rated luminous flux: emergency light operation: 3 h
Order No.: 52TL11DN68XG3S

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
2D symbol (DXF)
