59HL94002

Close
Order No.: 59HL94002
Remember articleRemember article

Article base module
Product name Highbay 11
Protection rating IP54
Weight 0.3kg

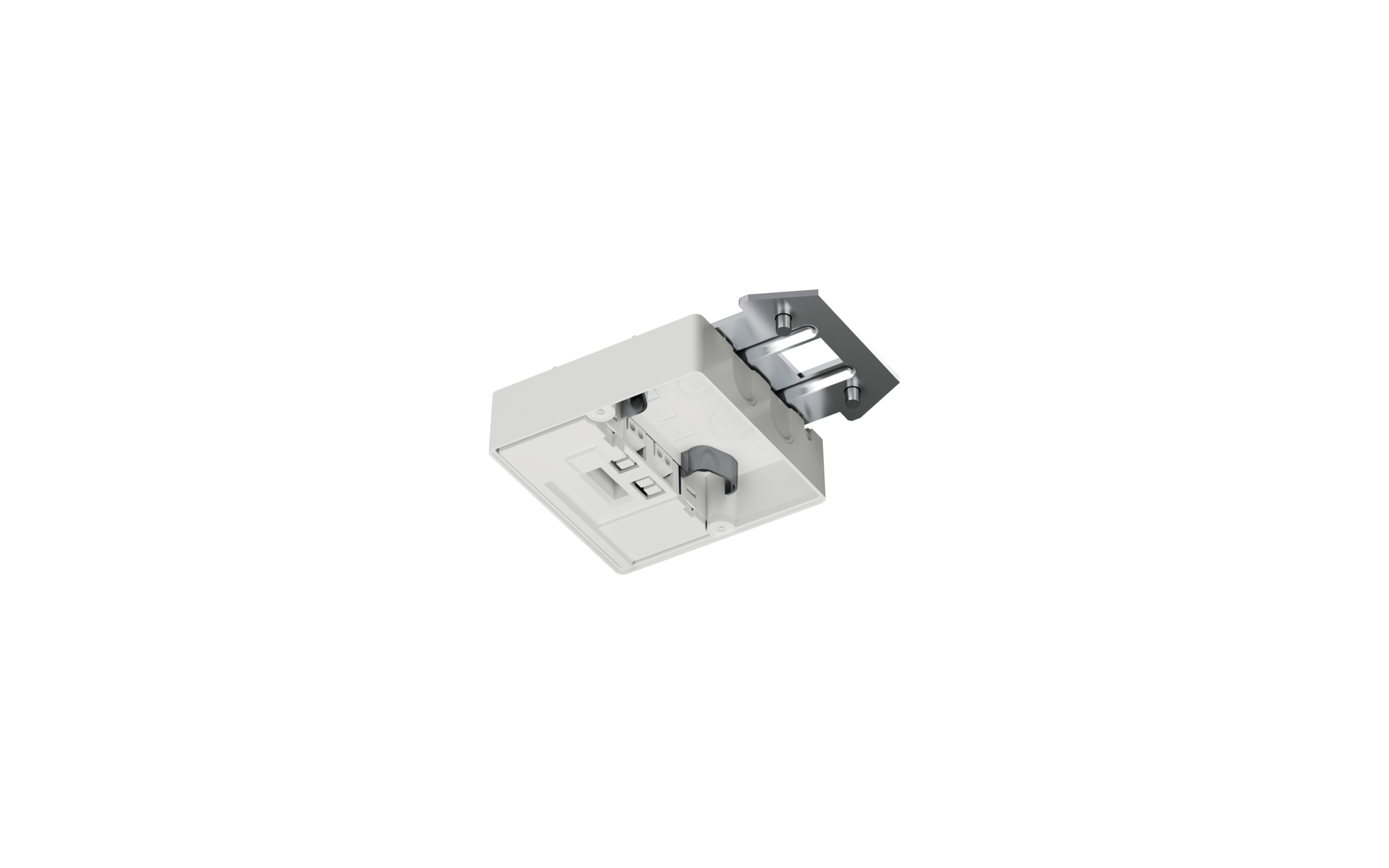

Highbay 11Interface S, slave, local control - self-sufficient standalone sensors, central control - connection to lighting or building management, dimmable, installation type: surface-mounted, installation location: to the luminaire, of plastic, protection rating (complete): IP54, insulation class (complete): insulation class II (safety insulation), certification: CE, 1 x 1 x DALI-2, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family Siteco Connect 11, SITECO Connect 22
Product type base module
Product name Highbay 11
Order No. 59HL94002

Control

Certificates, Standards

Protection rating IP54
Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+50°C
Certification, designation CE

Material, Colour

housing plastic, white, square
Colour specification white
mounting bracket steel, galvanised

Mounting

Mounting method, mounting location surface-mounted, to the luminaire
Supplement only suitable for use in indoor areas

Dimensions, Weight

Length 83mm
Width 83mm
Height 28mm
Weight 0.3kg

Outputs

1x DALI-2
Feature DALI, slave function, DALI current max. 6mA

System family
Siteco Connect 11, SITECO Connect 22

Product type
base module

Product name
Highbay 11

Order No.
59HL94002

Protection rating
IP54

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-20..+50°C

Certification, designation
CE

housing
plastic, white, square

Colour specification
white

mounting bracket
steel, galvanised

Mounting method, mounting location
surface-mounted, to the luminaire

Supplement
only suitable for use in indoor areas

Length
83mm

Width
83mm

Height
28mm

Weight
0.3kg

1x DALI-2

Feature
DALI, slave function, DALI current max. 6mA
