Ordercode: 59US1HXSPR2A

Article sensor

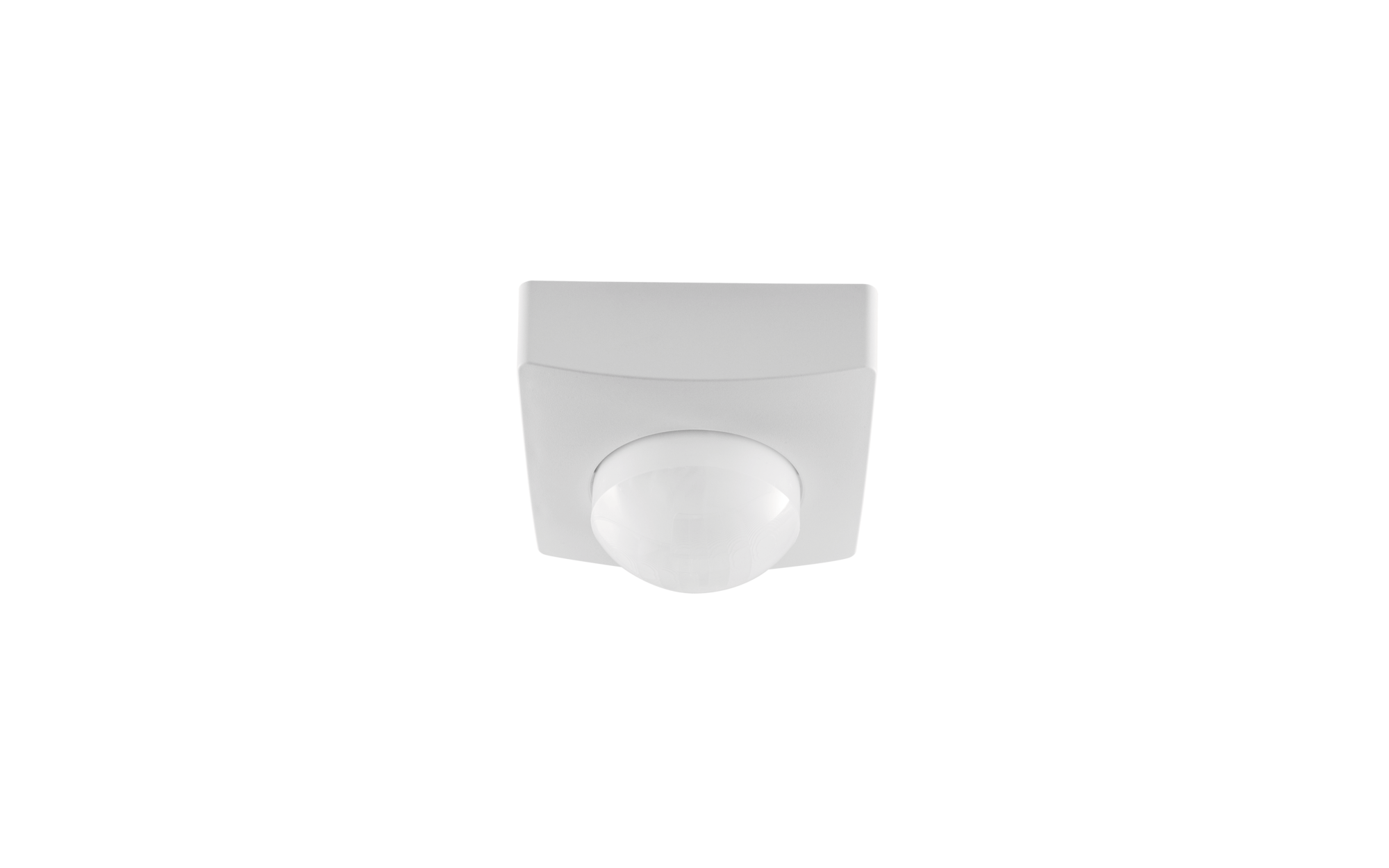

Product name Licross® Sensor Head
Weight 0.1kg

Licross® Sensor Head, Sensor-Head PR2-S, slave,local controlcentral controlinstallation type: slip-in mounting, installation location: on interface, of plastic, certification: CE, VDE, 1 x PIR movement sensor, 1 x light sensor, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details


Key data

System family Siteco Connect 11, SITECO Connect I/O, DALI-2
Product type sensor
Product name Licross® Sensor Head
Order No. 59US1HXSPR2A


Control


Certificates, Standards

Temperature range (operation) -20..+50°C
Certification, designation CE, VDE


Material, Colour

housing plastic, white
Colour specification white


Mounting

Mounting method, mounting location slip-in mounting, on interface
Mounting height 4..14m

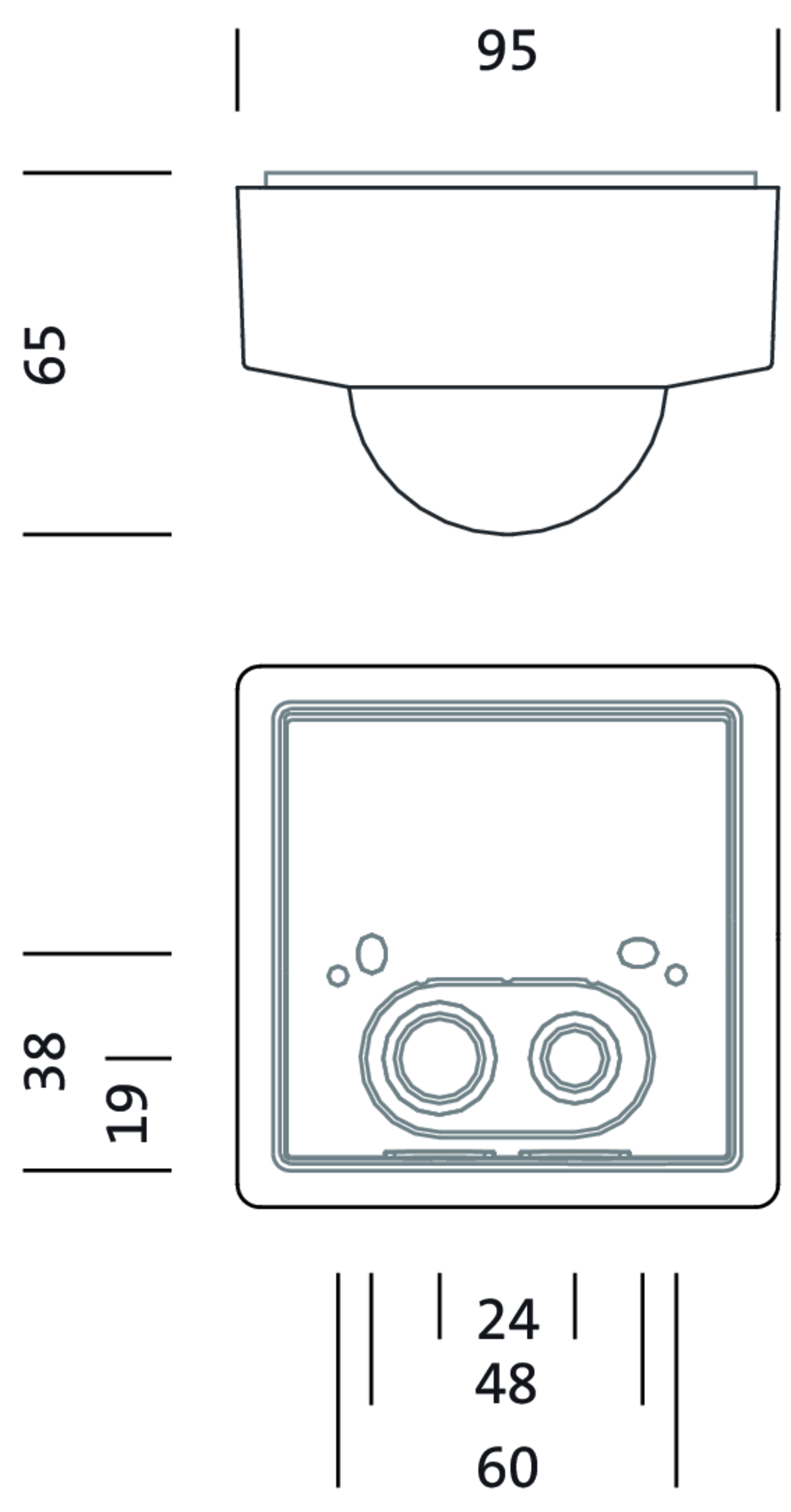

Dimensions, Weight

Length 95mm
Width 95mm
Height 65mm
Weight 0.1kg


Inputs

1x PIR movement sensor
Connection system connector

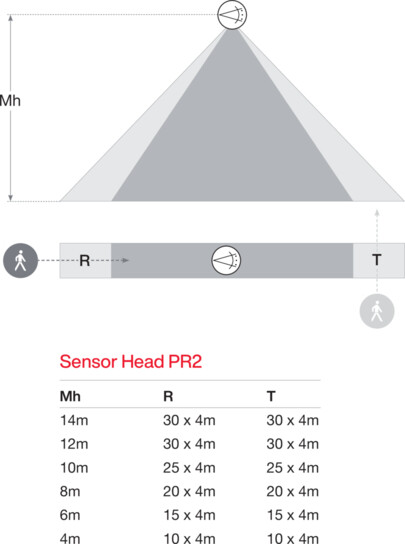

Detection range max. 30x4m
Option 5 detection levels, 120 switching zones
Feature detection range can be limited with shield, rectangular detection area

1x light sensor
Feature light sensor with 'local control' without function

System family
Siteco Connect 11, SITECO Connect I/O, DALI-2

Product type
sensor

Product name
Licross® Sensor Head

Order No.
59US1HXSPR2A

Temperature range (operation)
-20..+50°C

Certification, designation
CE, VDE

housing
plastic, white

Colour specification
white

Mounting method, mounting location
slip-in mounting, on interface

Mounting height
4..14m

Length
95mm

Width
95mm

Height
65mm

Weight
0.1kg

1x PIR movement sensor

Connection
system connector

Detection range
max. 30x4m

Option
5 detection levels, 120 switching zones

Feature
detection range can be limited with shield, rectangular detection area

1x light sensor

Feature
light sensor with 'local control' without function
