Article lighting management components
Product name SITECO Connect I/O
Protection rating IP20
Weight 0.6kg

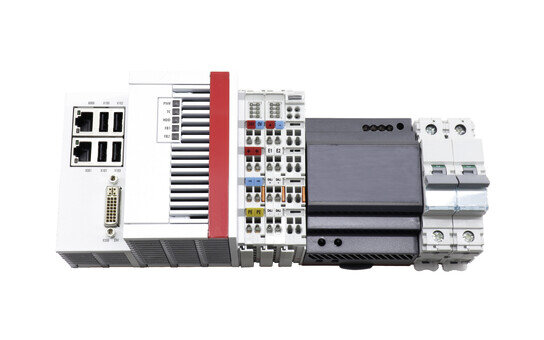

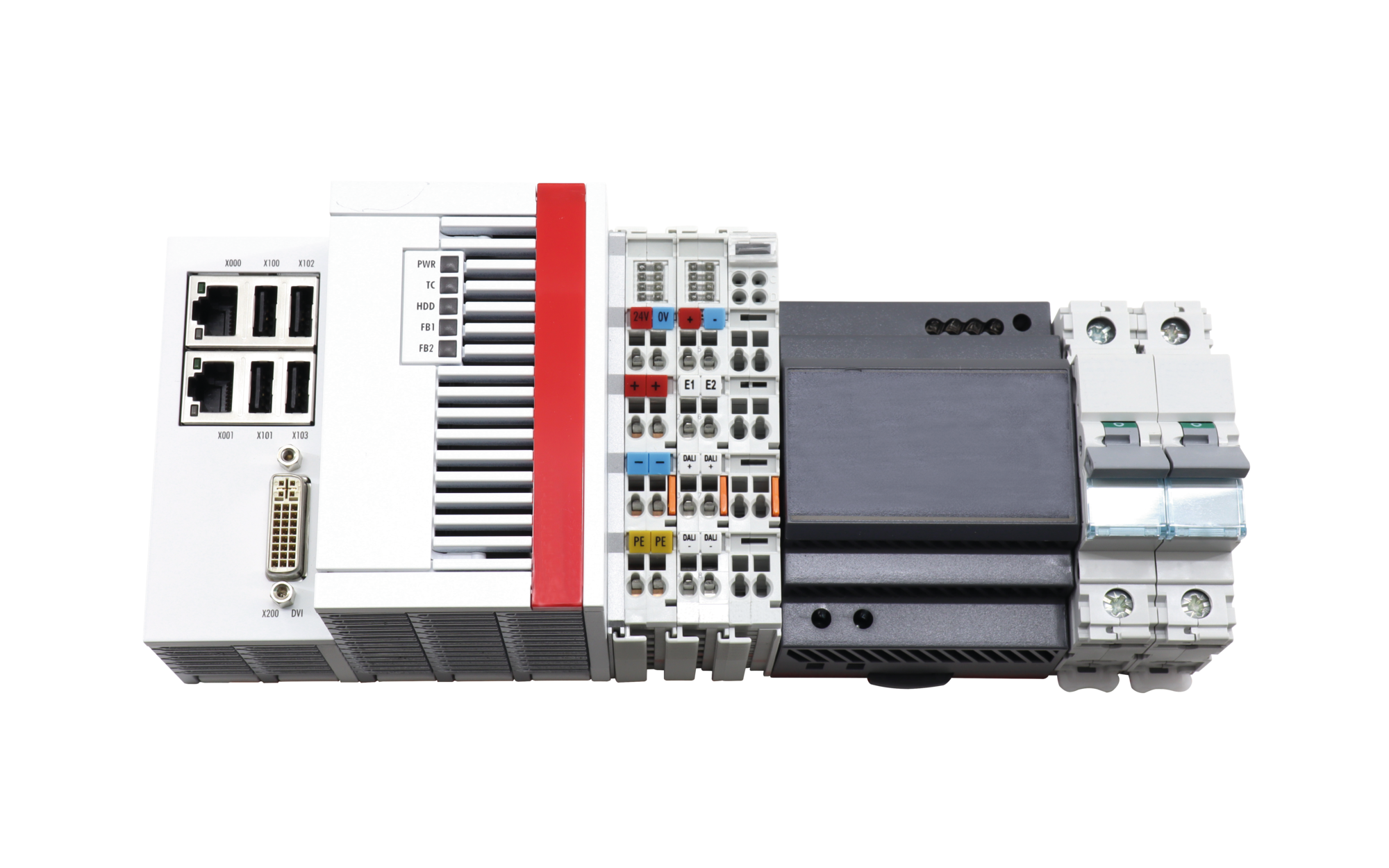

SITECO Connect I/O, base package M/D, DIN rail PC with Intel Atom® 1.47GHz, 1..18 DALI lines,central control (Siteco Connect I/O)installation type: recessed, installation location: in an electrical distributor, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, voltage: 230V, voltage type: AC, 1 x DALI-2, software: Lighting Solution

Downloads

Technical product information
Data for application programs

Product details


Key data

Product type lighting management components
Product name SITECO Connect I/O
Order No. 5LZ930102


Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Certification, designation CE


Material, Colour

housing plastic, grey
Colour specification grey


Mounting

Mounting method, mounting location recessed, in an electrical distributor


Electrical connection

Nominal voltage 230V, AC

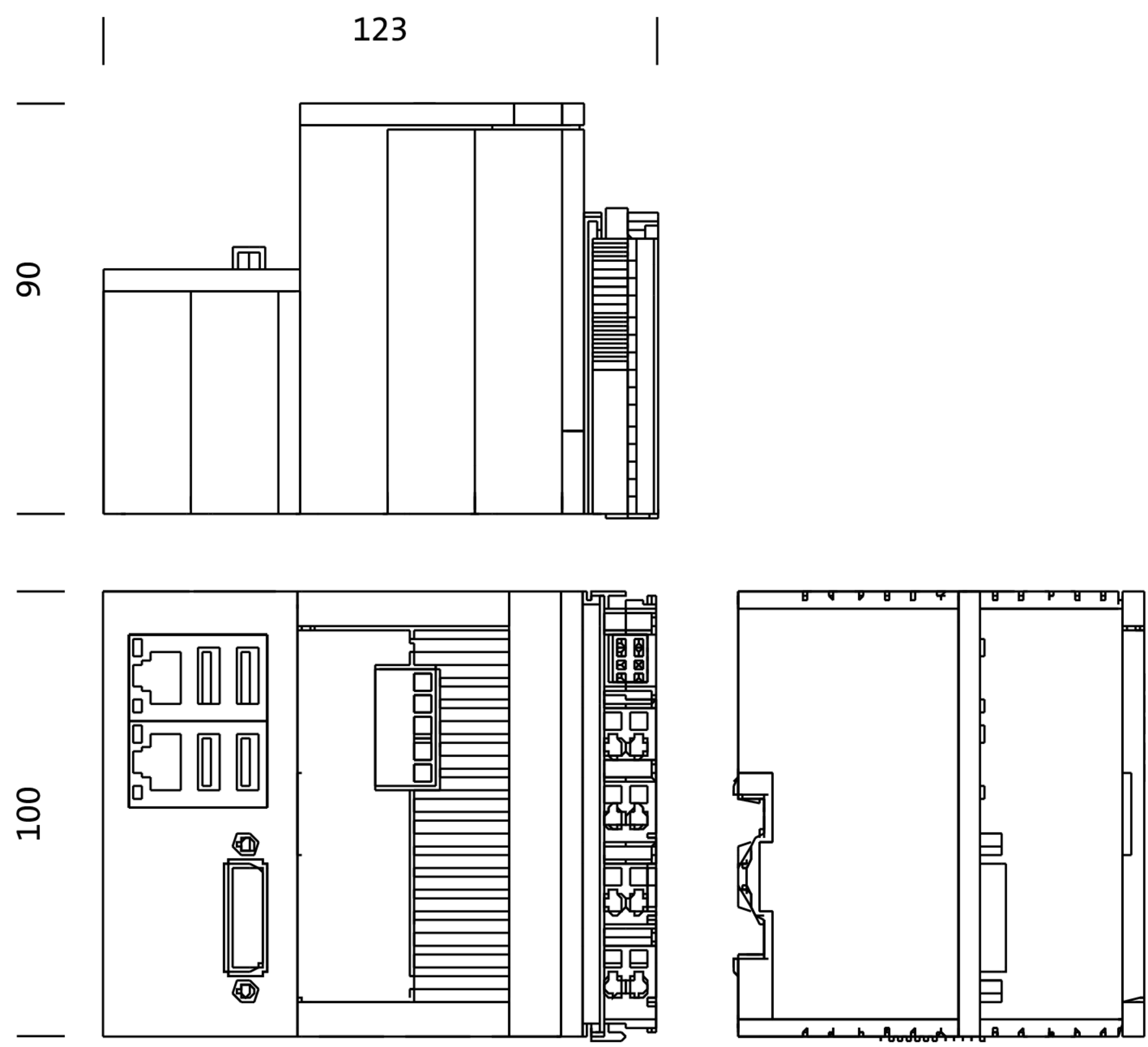

Dimensions, Weight

Weight 0.6kg


Outputs

1x DALI-2
Protocol according to current DALI-2 standard
Feature integrated power supply (250mA per DALI line)


Software

Software Lighting Solution
Supplement software pre-installed, TC3 licences (platform 30) TC3 PLC, TC3 PLC HMI, TC3 PLC HMI Web, TC3 XLS

Product type
lighting management components

Product name
SITECO Connect I/O

Order No.
5LZ930102

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Certification, designation
CE

housing
plastic, grey

Colour specification
grey

Mounting method, mounting location
recessed, in an electrical distributor

Nominal voltage
230V, AC

Weight
0.6kg

1x DALI-2

Protocol
according to current DALI-2 standard

Feature
integrated power supply (250mA per DALI line)

Software
Lighting Solution

Supplement
software pre-installed, TC3 licences (platform 30) TC3 PLC, TC3 PLC HMI, TC3 PLC HMI Web, TC3 XLS
