Licross® Interface, slave

Close
Ordercode: 56TL1FCSA
Remember productRemember product

Article sensor
Product name Licross® Interface
Protection rating IP20
Weight 0.8kg

Licross® InterfaceInterface S, slave, local control - self-sufficient standalone sensors, central control - connection to lighting or building management, dimmable, installation location: to the Licross® trunking rail, of sheet steel, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, 1 x DALI-2, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

System family Siteco Connect 11, SITECO Connect 21
Product type sensor
Product name Licross® Interface
Order No. 56TL1FCSA

Lamps

Supplement internal wiring halogen-free

Operating device

Control DALI 2, dimmable

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) -20..+50°C
Certification, designation CE, ENEC, VDE, UKCA

Material, Colour

trunking rail adapter set sheet steel, coil coated, white
Colour specification white

Mounting

Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 5-pole, with phase selection

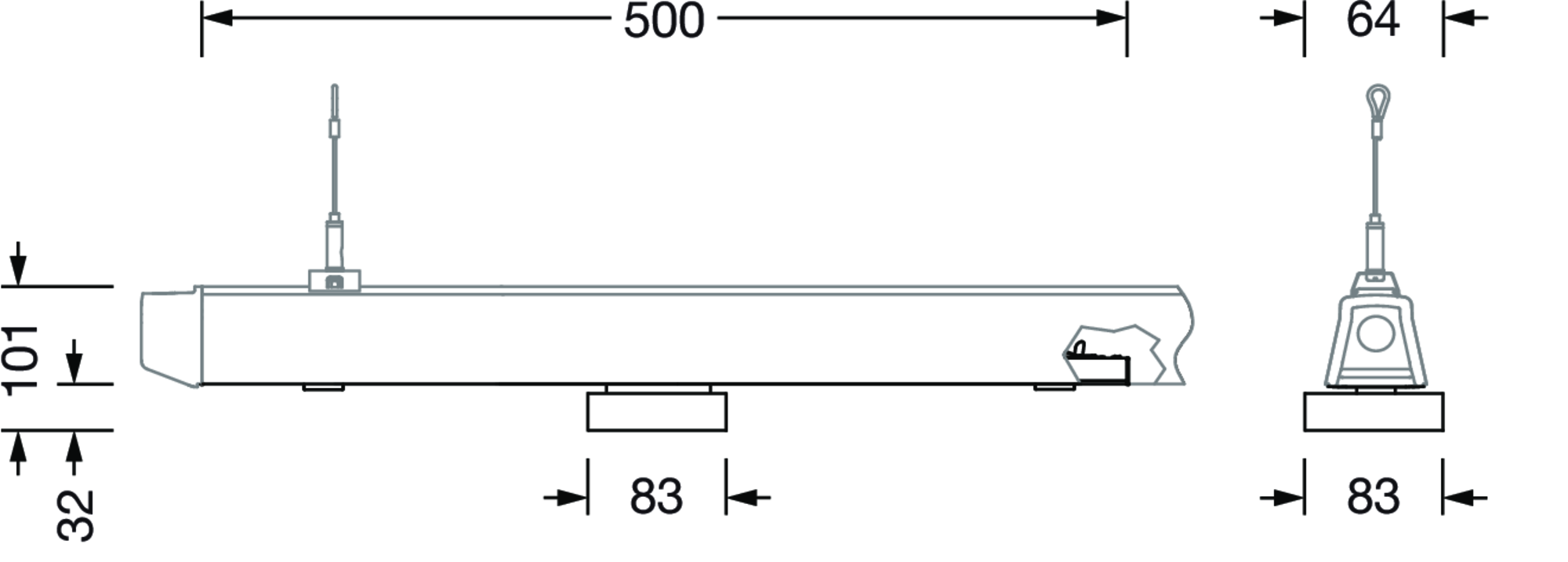

Dimensions, Weight

Length 500mm
Width 96mm
Height 97mm
Weight 0.8kg

Outputs

DALI-2
Feature DALI, slave function, DALI current max. 6mA

System family
Siteco Connect 11, SITECO Connect 21

Product type
sensor

Product name
Licross® Interface

Order No.
56TL1FCSA

Supplement
internal wiring halogen-free

Control
DALI 2, dimmable

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
-20..+50°C

Certification, designation
CE, ENEC, VDE, UKCA

trunking rail adapter set
sheet steel, coil coated, white

Colour specification
white

Supplement
only suitable for use in indoor areas

Connection
plug, 5-pole, with phase selection

Length
500mm

Width
96mm

Height
97mm

Weight
0.8kg

DALI-2

Feature
DALI, slave function, DALI current max. 6mA
