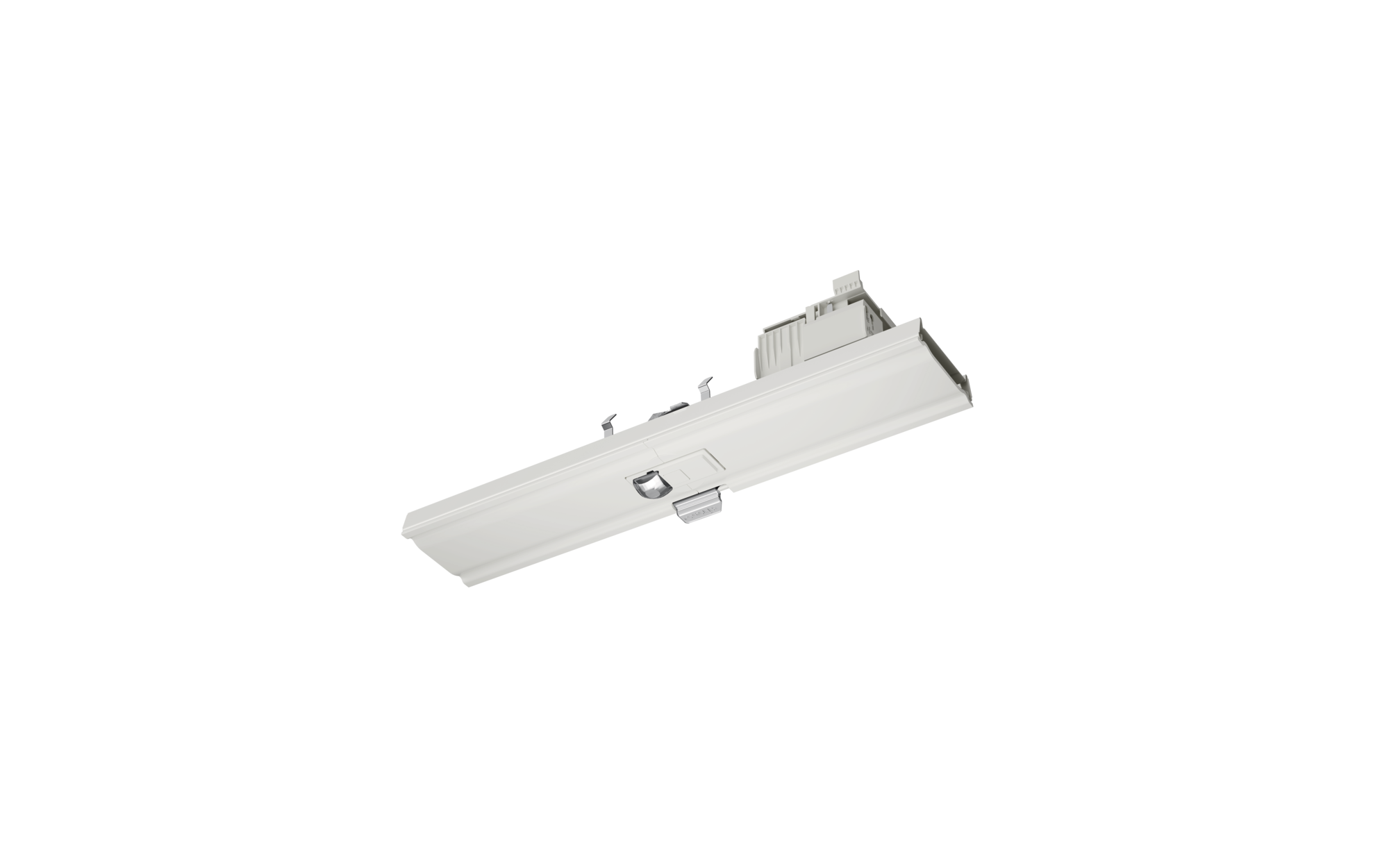

Licross®, slave, white

Close
Order No.: 56TL1MDSPC3A
Remember articleRemember article

Article sensor
Product name Licross®
Protection rating IP20
Weight 0.3kg

Licross®sensor PC3, slave, central control - connection to lighting or building management, dimmable, installation type: recessed, installation location: to the Licross® trunking rail, of sheet steel, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, 1 x PIR movement sensor, 1 x light sensor, 1 x DALI-2, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family Siteco Connect 11, SITECO Connect 22
Product type sensor
Product name Licross®
Order No. 56TL1MDSPC3A

Lamps

Supplement internal wiring halogen-free

Operating device

Control DALI 2, dimmable

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE, UKCA

Material, Colour

sensor module sheet steel, coil coated, white
Colour specification white

Mounting

Mounting method, mounting location recessed, to the Licross® trunking rail
Mounting height 2.5..5m
Supplement only suitable for use in indoor areas

Dimensions, Weight

Length 300mm
Width 66mm
Height 71mm
Weight 0.3kg

Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)

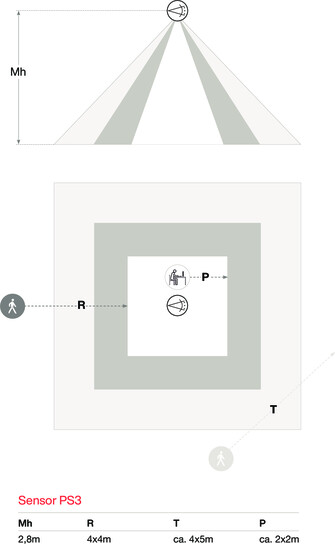

Detection range tangential max. 4x5m
Detection range max. 2x 2m

1x light sensor
Illuminance 2..1000lx

Outputs

1x DALI-2
Feature DALI, slave function, DALI current max. 6mA

System family
Siteco Connect 11, SITECO Connect 22

Product type
sensor

Product name
Licross®

Order No.
56TL1MDSPC3A

Supplement
internal wiring halogen-free

Control
DALI 2, dimmable

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE, UKCA

sensor module
sheet steel, coil coated, white

Colour specification
white

Mounting method, mounting location
recessed, to the Licross® trunking rail

Mounting height
2.5..5m

Supplement
only suitable for use in indoor areas

Length
300mm

Width
66mm

Height
71mm

Weight
0.3kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Detection range
tangential max. 4x5m

Detection range
max. 2x 2m

1x light sensor

Illuminance
2..1000lx

1x DALI-2

Feature
DALI, slave function, DALI current max. 6mA
