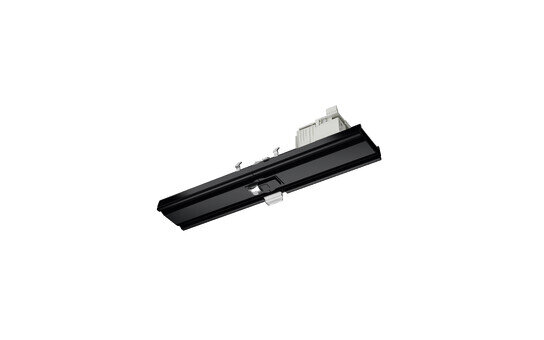

Licross® Trunking, slave, black

Close
Ordercode: 56TL3MDSPC3A
Remember productRemember product

Article presence detector (slave)
Product name Licross® Trunking
Protection rating IP20
Weight 0.3kg

Licross® Trunkingsensor module PC3-S, slave, central control, dimmable, installation location: to the Licross® trunking rail, of sheet steel, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, 1 x PIR movement sensor, 1 x light sensor, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

System family Siteco Connect 11, SITECO Connect 22
Product type presence detector (slave)
Product name Licross® Trunking
Order No. 56TL3MDSPC3A

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE, UKCA

Material, Colour

trunking rail adapter set sheet steel, coil coated, black
Colour specification black

Mounting

Mounting height 2.5..5m
Supplement only suitable for indoor use

Dimensions, Weight

Length 300mm
Width 66mm
Height 71mm
Weight 0.3kg

Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)

System family
Siteco Connect 11, SITECO Connect 22

Product type
presence detector (slave)

Product name
Licross® Trunking

Order No.
56TL3MDSPC3A

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE, UKCA

trunking rail adapter set
sheet steel, coil coated, black

Colour specification
black

Mounting height
2.5..5m

Supplement
only suitable for indoor use

Length
300mm

Width
66mm

Height
71mm

Weight
0.3kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)
