Ordercode: 5LZ930101
Remember productRemember product

Article control unit

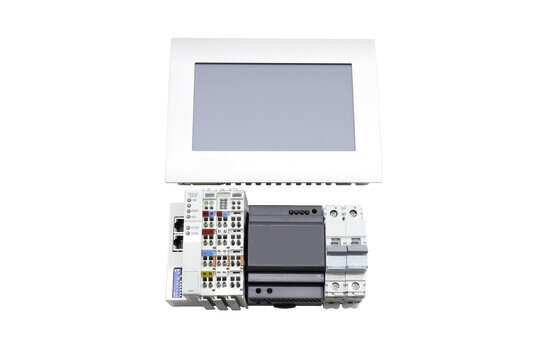

Product name SITECO Connect 11
Protection rating IP20
Weight 0.9kg

SITECO Connect 11base package S/P, touch panel PC, 1..15 DALI lines, central control, installation type: recessed, installation location: in an electrical distributor, of plastic, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, voltage: 230V, voltage type: AC, 1 x DALI-2, software: Lighting Solution, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

System family Siteco Connect 11
Product type control unit
Product name SITECO Connect 11
Order No. 5LZ930101

Control

Certificates, Standards

Protection rating IP20
Protection rating (on room side) IP54
Insulation class insulation class I (protective earthing)
Certification, designation CE

Material, Colour

shield plastic, silver
Colour specification silver
housing metal, silver
Colour specification silver

Mounting

Mounting method, mounting location recessed, in an electrical distributor

Electrical connection

Nominal voltage 230V, AC

Dimensions, Weight

Weight 0.9kg

Outputs

1x DALI-2
Protocol according to current DALI-2 standard
Feature integrated power supply (250mA per DALI line)

Software

Software Lighting Solution
Supplement software pre-installed, TC3 licences (platform 30) TC3 PLC, TC3 PLC HMI, TC3 PLC HMI Web, TC3 XLS

System family
Siteco Connect 11

Product type
control unit

Product name
SITECO Connect 11

Order No.
5LZ930101

Protection rating
IP20

Protection rating (on room side)
IP54

Insulation class
insulation class I (protective earthing)

Certification, designation
CE

shield
plastic, silver

Colour specification
silver

housing
metal, silver

Colour specification
silver

Mounting method, mounting location
recessed, in an electrical distributor

Nominal voltage
230V, AC

Weight
0.9kg

1x DALI-2

Protocol
according to current DALI-2 standard

Feature
integrated power supply (250mA per DALI line)

Software
Lighting Solution

Supplement
software pre-installed, TC3 licences (platform 30) TC3 PLC, TC3 PLC HMI, TC3 PLC HMI Web, TC3 XLS
