Licross®, slave

Close
Order No.: 56TL1MDSPS2A
Remember articleRemember article

Article sensor
Product name Licross®
Protection rating IP20
Weight 0.7kg

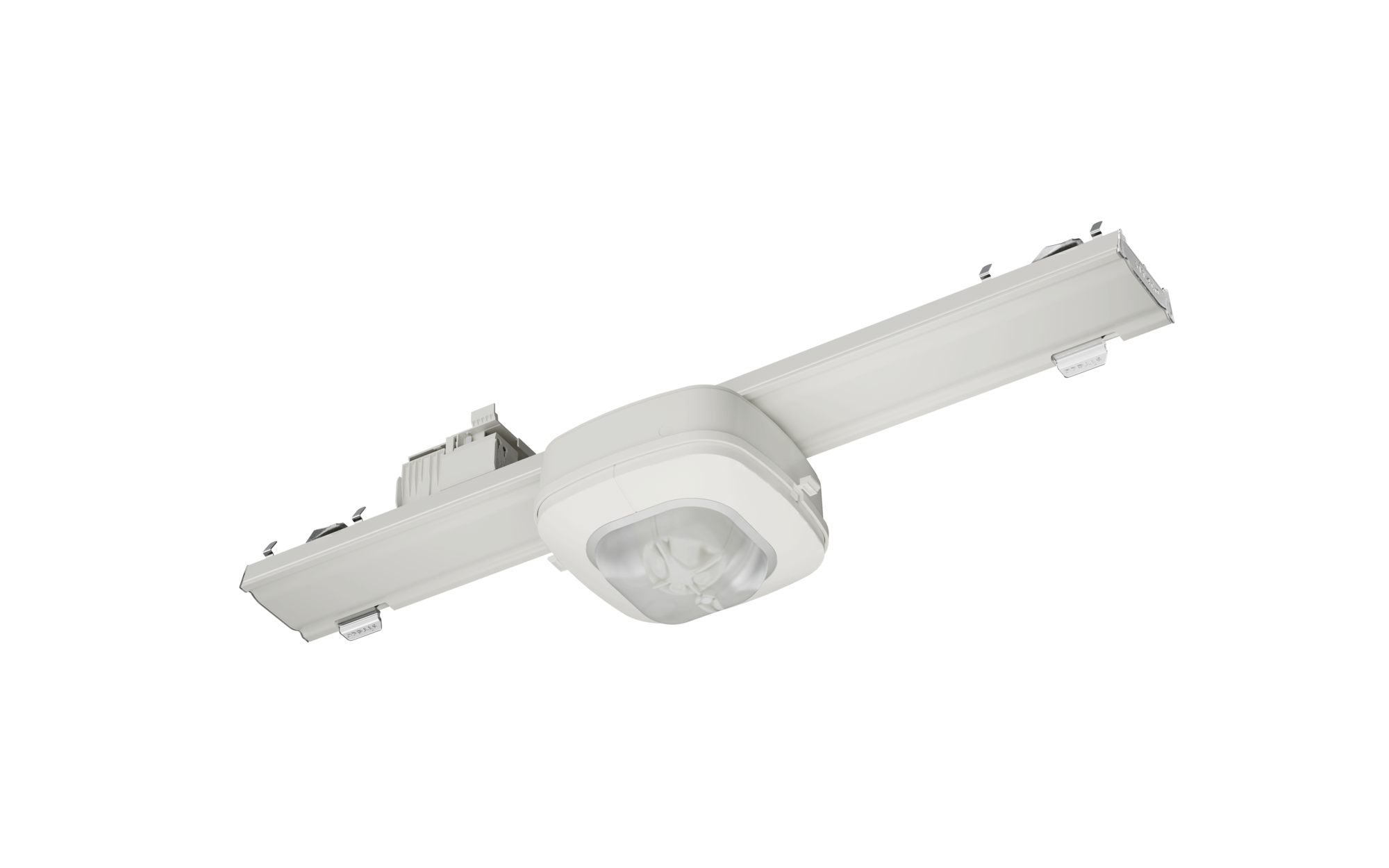

Licross®sensor PS2, slave, central control - connection to lighting or building management, dimmable, installation type: recessed, installation location: to the Licross® trunking rail, of sheet steel, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, 1 x PIR movement sensor, 1 x light sensor, 1 x DALI, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family Siteco Connect 11, SITECO Connect 22
Product type sensor
Product name Licross®
Order No. 56TL1MDSPS2A

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE, UKCA

Material, Colour

trunking rail adapter set sheet steel, coil coated, white
Colour specification white
housing plastic, white
Colour specification white

Mounting

Mounting method, mounting location recessed, to the Licross® trunking rail
Mounting height 2.5..10m
Supplement only suitable for use in indoor areas

Dimensions, Weight

Length 500mm
Width 120mm
Weight 0.7kg

Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)
Detection angle 360°

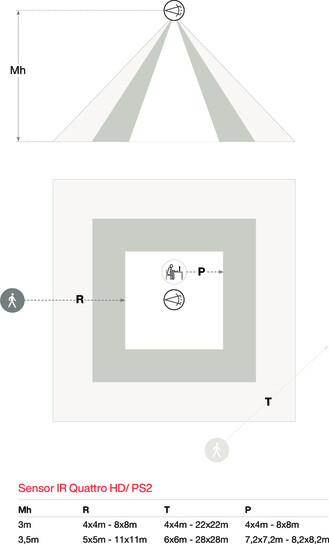

Detection range radial min./max. 5x 5m/11x 11m, tangential min./max. 6x 6m/28x 28m
Detection range min./max. 4.8x 4.8m/8.2x 8.2m
Feature square detection area

Outputs

1x DALI
Feature DALI, slave function, DALI current max. 6mA

System family
Siteco Connect 11, SITECO Connect 22

Product type
sensor

Product name
Licross®

Order No.
56TL1MDSPS2A

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE, UKCA

trunking rail adapter set
sheet steel, coil coated, white

Colour specification
white

housing
plastic, white

Colour specification
white

Mounting method, mounting location
recessed, to the Licross® trunking rail

Mounting height
2.5..10m

Supplement
only suitable for use in indoor areas

Length
500mm

Width
120mm

Weight
0.7kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Detection angle
360°

Detection range
radial min./max. 5x 5m/11x 11m, tangential min./max. 6x 6m/28x 28m

Detection range
min./max. 4.8x 4.8m/8.2x 8.2m

Feature
square detection area

1x DALI

Feature
DALI, slave function, DALI current max. 6mA
