Ordercode: 5NY318750KM08
Remember productRemember product

Article mast
Product name mast
Weight 65.0kg

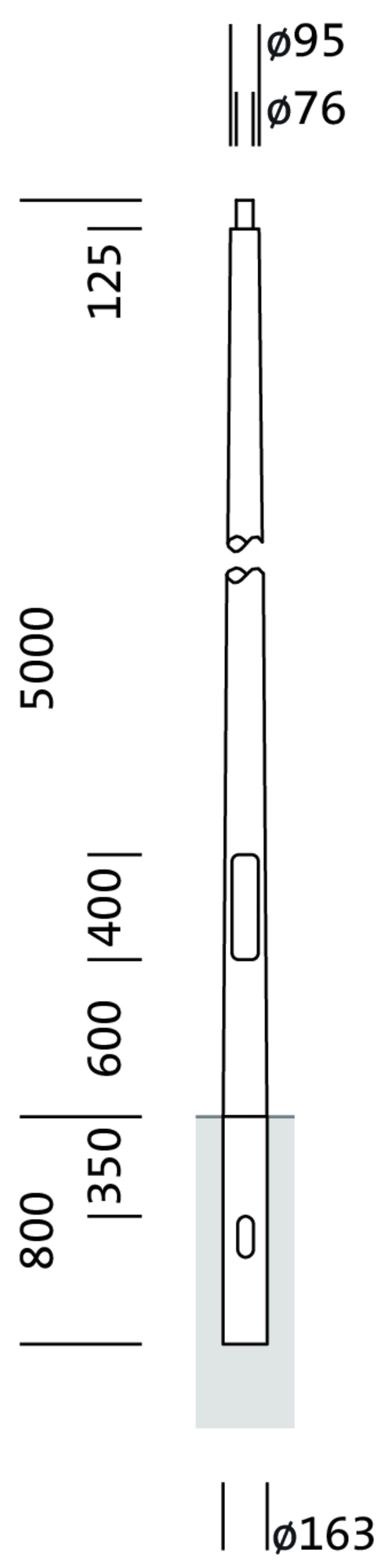

mast, conical round, of St 37-2, powder-coated, Siteco® metallic grey (DB 702S), height: 5.0m, spigot size: 76mm (post-top), planted section: h= 800mm / Ø= 163mm, standard: DIN EN 40, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type mast
Product name mast
Order No. 5NY318750KM08

Certificates, Standards

Standard DIN EN 40

Material, Colour

mast St 37-2, powder-coated, Siteco® metallic grey (DB 702S), conical round, with offset spigot, door opening 85x 400mm
Colour specification Siteco® metallic grey (DB 702S)

Dimensions, Weight

Height 5.0m
Weight 65.0kg
Mast spigot spigot size: 76mm
Planted section h= 800mm / Ø= 163mm

Product type
mast

Product name
mast

Order No.
5NY318750KM08

Standard
DIN EN 40

mast
St 37-2, powder-coated, Siteco® metallic grey (DB 702S), conical round, with offset spigot, door opening 85x 400mm

Colour specification
Siteco® metallic grey (DB 702S)

Height
5.0m

Weight
65.0kg

Mast spigot
spigot size: 76mm

Planted section
h= 800mm / Ø= 163mm
