Article mast luminaire

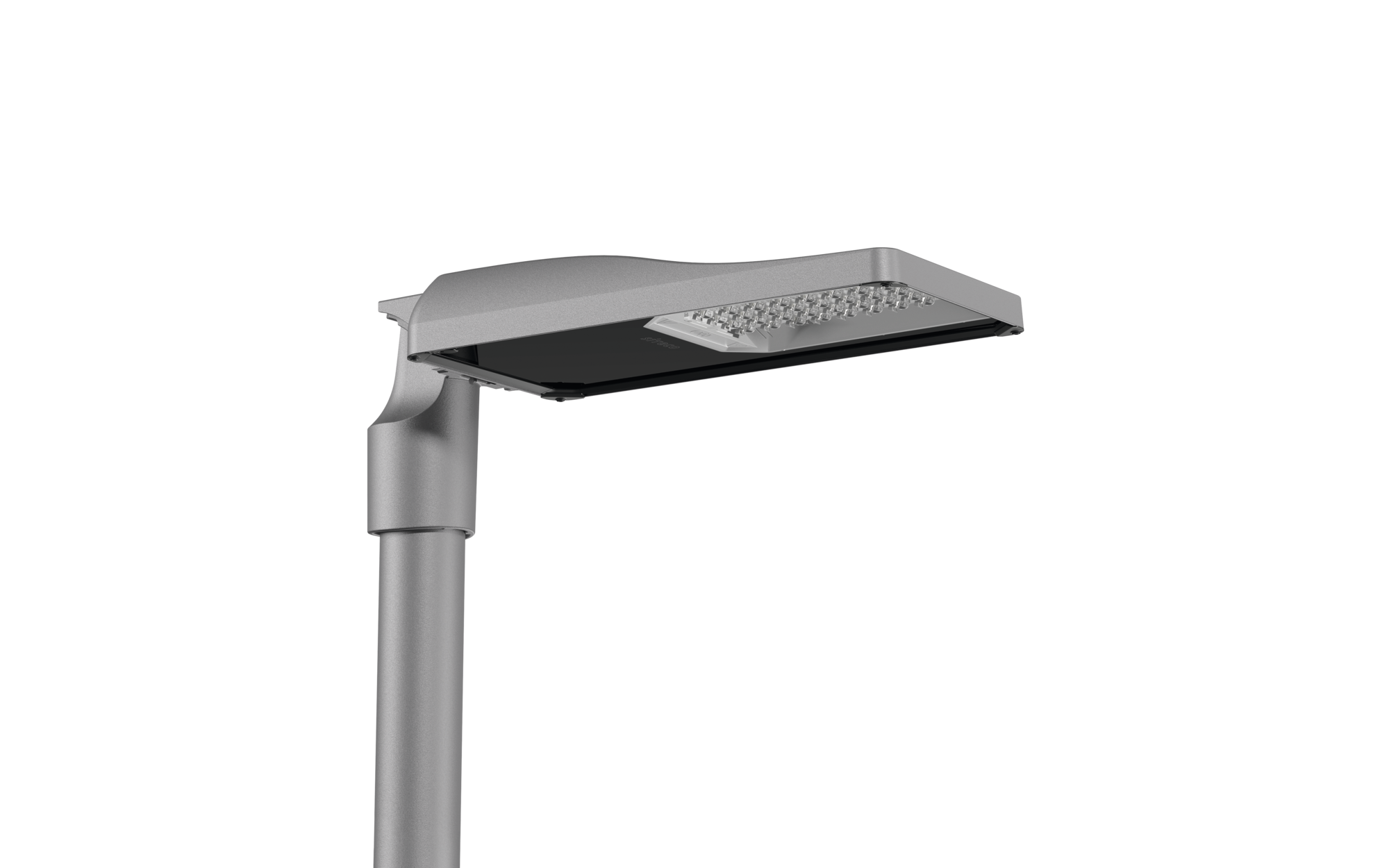

Product name Streetlight SL 31 mini
Lamp LED
Rated luminous flux 9240lm
Luminous efficacy 135lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 68
Pnom end service life 75
Pred at 50% lumin. flux 30
Service life 100000h (L94/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 5.7kg
Streetlight SL 31 mini EasyEasy, Desk-Remote mast luminairelight control with lens of PMMA; light distribution: ST1.0a, direct asymmetric distribution, for standard-compliant lighting for roads and squares; LED: luminous flux: 9.240lm, light colour: 730, colour temperature: 3000K; luminous efficacy: 135,3lm/W; control: overheat protection, intelligent temperature release in ECG and LED module, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, pre-setting: linear dimming characteristic; luminaire housing, Siteco® metallic grey (DB 702S), corrosivity category C5 high according to DIN EN ISO 12944; cover of toughened safety glass, transparent, opened without tools; mast flange of diecast aluminium, Siteco® metallic grey (DB 702S), mast flange included unmounted; with cable H07RN-F 2x 1.5mm², mains connection: 220..240V, AC, 50/60Hz; power consumption (at start of service life): 68,3W / (at end of service life): 74,8W / (with reduced operation 50%): 29,7W; protection rating (complete): IP66; insulation class (complete): insulation class II (safety insulation); impact resistance: IK10; certification: CE, ENEC, ENEC+, VDE, UKCA; permissible operating ambient temperature for outdoor applications: -40..+50°C; packaging unit: 1 piece
