Streetlight SL 31 midi, direct asymmetric wide distribution, ST0.8a, with Smart Interface below and above
Close
Article mast luminaire
Product name Streetlight SL 31 midi
Lamp LED
Rated luminous flux 18000lm
Luminous efficacy 150lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Rated input power 120W
Service life 100000h (L90) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 6.0kg

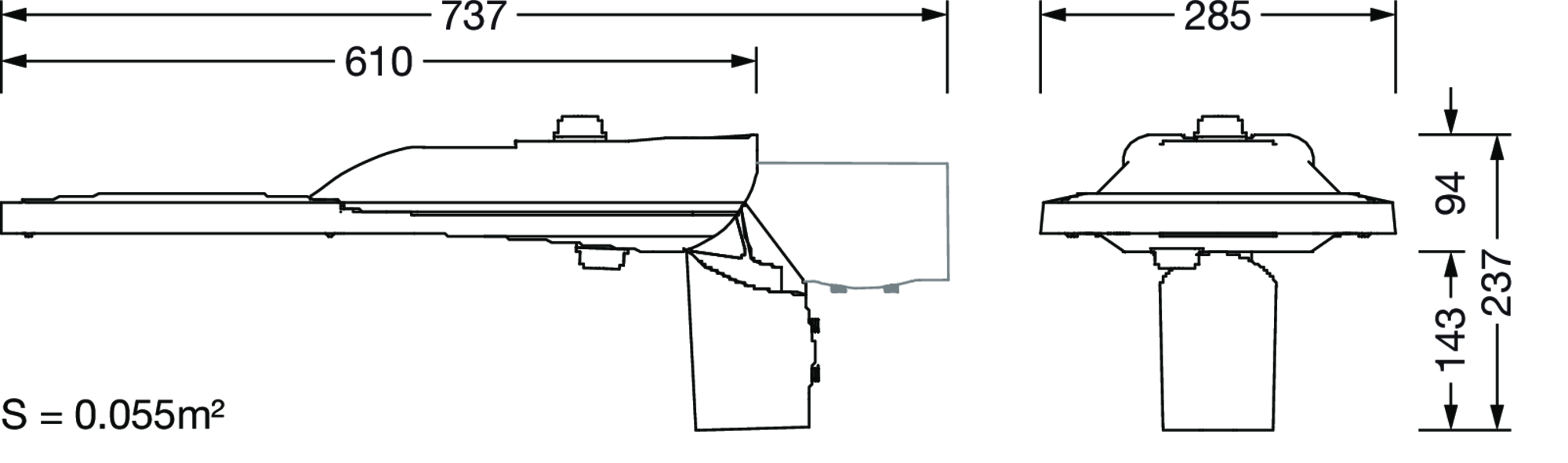

Streetlight SL 31 midi, mast luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: ST0.8a, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, side-entry, LED, High Power LED, rated luminous flux: 18.000lm, luminous efficacy: 150lm/W, light colour: 740, colour temperature: 4000K, control gear: ECG Smart Interface, control: overheat protection, time-dependent luminous flux control, flexible luminous flux parameterisation, mains connection: 220..240V, AC, 50/60Hz, rated input power: 120W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), inclination adjustable: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15°, -20° (side-entry), length: 610mm, width: 285mm, height: 93mm, Smart Interface below and above, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, ENEC+, impact resistance: IK08, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details
Photometric report / planning data
SL31md
ST0.8a,18000lm740,D4i,SIa/b
Ordercode: 5XF3C42T08MA
