Streetlight SL 31 mega, direct asymmetric wide distribution, ST1.0a

Ordercode: 5XF5E32N08SA

Article mast luminaire
Product name Streetlight SL 31 mega
Lamp LED
Rated luminous flux 39200lm
Luminous efficacy 143lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Rated input power 275W
Service life 100000h (L90) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 12.5kg

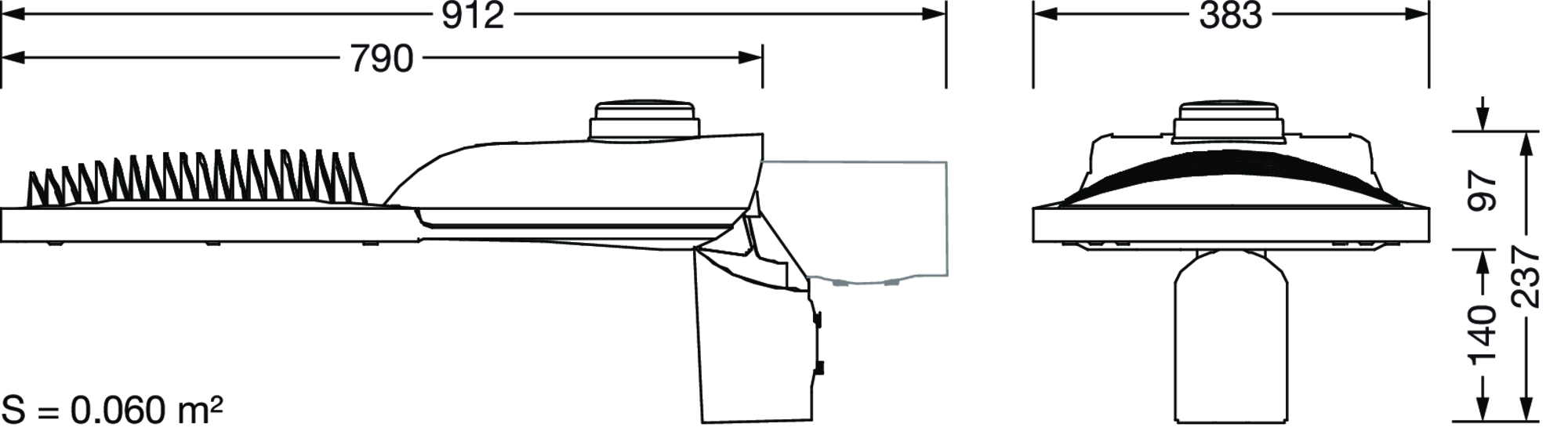

Streetlight SL 31 mega, mast luminaire, primary light control with lens, of PMMA, primary optical cover: cover, of toughened safety glass, transparent, light distribution: ST1.0a, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, side-entry, LED, High Power LED, rated luminous flux: 39.200lm, luminous efficacy: 143lm/W, light colour: 730, colour temperature: 3000K, control gear: ECG Plus, control: flexible luminous flux parameterisation, time-dependent luminous flux control, digital communication interface, power reduction, overheat protection, mains connection: 220..240V, AC, 50/60Hz, rated input power: 275W, luminaire housing, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), inclination adjustable: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15°, -20° (side-entry), length: 790mm, width: 383mm, height: 97mm, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, ENEC+, impact resistance: IK08, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece
