Order No.: 5EA3TDC01
Remember articleRemember article

Article luminaire controller

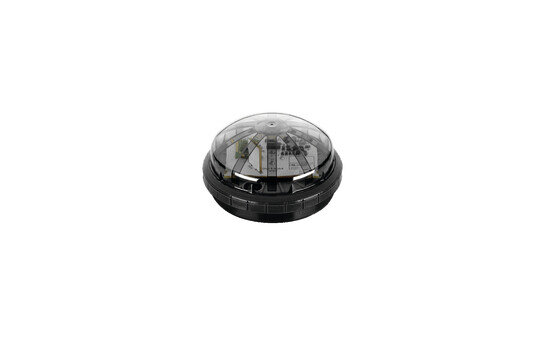

Product name SITECO Connect Wireless
Protection rating IP66
Impact resistance IK09
Weight 0.1kg

SITECO Connect WirelessSmart Plug Casambi, luminaire controller, communication: 2.4GHz, Bluetooth, local mesh radio network, D4i type A, control: local setting and operation with smartphone app, manual, by daylight, optionally via radio push button, sensor technology: daylight sensor, configuration via Casambi app, Compatible only with ECGs with logarithmic DALI dimming curve, Smart Interface below and above, installation type: screw fastening, installation location: to the luminaire, of PBT, voltage: 12..20V, protection rating (complete): IP66, certification: CE, UKCA, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect 31 Wireless
Product type luminaire controller
Product name SITECO Connect Wireless
Order No. 5EA3TDC01

Control

Certificates, Standards

Protection rating IP66
Impact resistance IK09
Temperature range (operation) -40..+70°C
Standard according to Zhaga book 18
Certification, designation CE, UKCA

Material, Colour

housing PBT, transparent, colour-backed, transparent
Colour specification transparent

Mounting

Mounting method, mounting location screw fastening, to the luminaire

Electrical connection

Nominal voltage 12..20V

Dimensions, Weight

Weight 0.1kg

System family
SITECO Connect 31 Wireless

Product type
luminaire controller

Product name
SITECO Connect Wireless

Order No.
5EA3TDC01

Protection rating
IP66

Impact resistance
IK09

Temperature range (operation)
-40..+70°C

Standard
according to Zhaga book 18

Certification, designation
CE, UKCA

housing
PBT, transparent, colour-backed, transparent

Colour specification
transparent

Mounting method, mounting location
screw fastening, to the luminaire

Nominal voltage
12..20V

Weight
0.1kg
