Highbay 31-S, 90°
Close
Article LED high bay luminaire
Product name Highbay 31-S
Lamp LED
Rated luminous flux 20000lm
Luminous efficacy 150lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 134W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP65
Impact resistance IK08
Weight 3.4kg

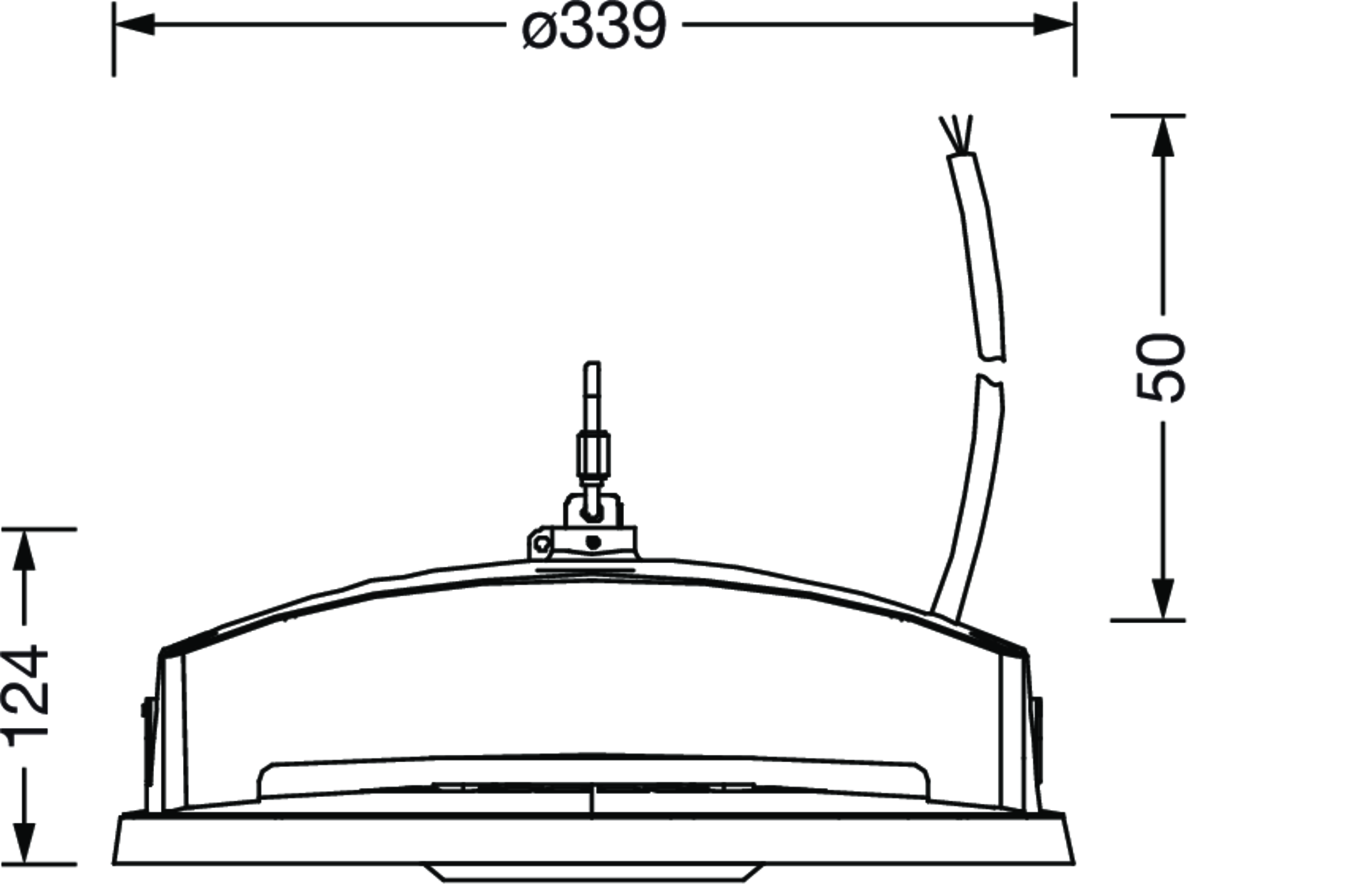

Highbay 31-S, LED high bay luminaire, primary light control with lens, of PC, primary optical cover: cover panel, of PC, transparent, light emission: direct distribution, primary light characteristic: rotationally symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 20.000lm, luminous efficacy: 150lm/W, light colour: 840, colour temperature: 4000K, control gear: ECG, with cable, 3x 1.0mm², free wire ends, mains connection: 220..240V, AC, 50/60Hz, cable length: 1,5m, rated input power: 134W, housing, rotationally symmetric, of diecast aluminium, grey aluminium (RAL 9007), diameter: 339mm, height: 141mm, protection rating (complete): IP65, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, UKCA, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -30..+45°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
- Tender text (TXT)
- Revit (RFA)
- 3D-Model (3DS)
- 3D-Model (3DS)
- 3D-Model (3DS)
- 3D-Model (DXF)
- 3D-Model (DXF)
- 3D-Model (DXF)
Product details
Photometric report / planning data
HB31S
rot.sym90°,20000lm840,0/1
Ordercode: 51HC427A4JMA
