Article lighting management components
Product name SITECO Connect Wireless
Protection rating IP20
Weight 0.1kg

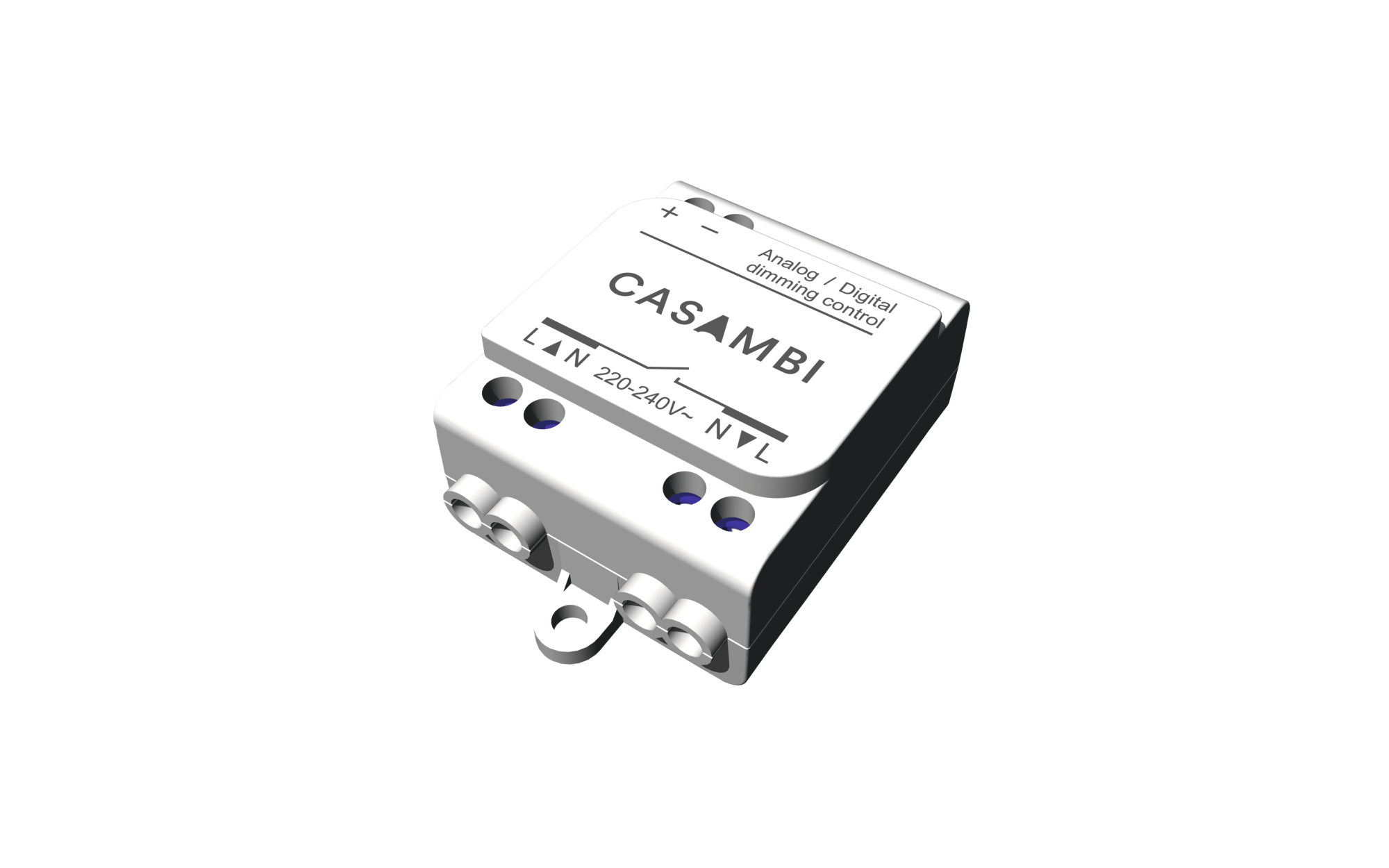

SITECO Connect Wireless, controller, master,local controlinstallation type: recessed, installation location: in the luminaire, of plastic, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, voltage: 230V, 1 x DALI, 1 x Bluetooth® interface, 1 x switching contact, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details


Key data

System family SITECO Connect Wireless
Product type lighting management components
Product name SITECO Connect Wireless
Order No. 5LZ980300


Control


Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Temperature range (operation) -20..+40°C
Certification, designation CE


Material, Colour

housing plastic, grey
housing plastic, grey
Colour specification grey


Mounting

Mounting method, mounting location recessed, in the luminaire
Supplement only suitable for indoor use


Electrical connection

Nominal voltage 230V

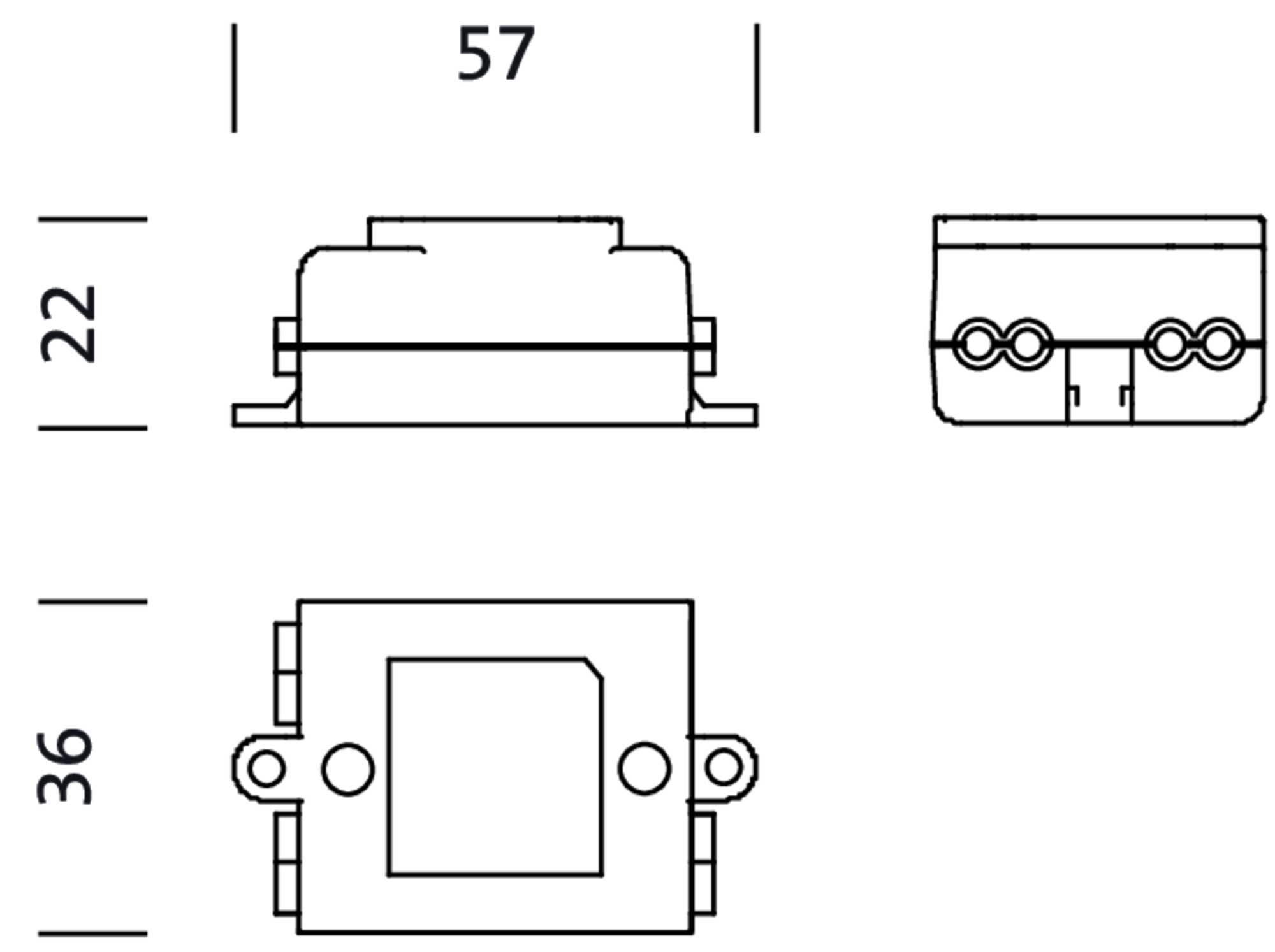

Dimensions, Weight

Length 57mm
Width 36mm
Height 22mm
Weight 0.1kg


Outputs

1x DALI
Limiting maximum 2x ECG DALI or 2x ECG DALI DT8 and 1 sensor PS3 DALI2 controllable

1x Bluetooth® interface
Feature operating frequency 2.4..2.483GHz, +4dBm

1x switching contact
Feature number of ECG's depends of the ECG type

System family
SITECO Connect Wireless

Product type
lighting management components

Product name
SITECO Connect Wireless

Order No.
5LZ980300

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-20..+40°C

Certification, designation
CE

housing
plastic, grey

housing
plastic, grey

Colour specification
grey

Mounting method, mounting location
recessed, in the luminaire

Supplement
only suitable for indoor use

Nominal voltage
230V

Length
57mm

Width
36mm

Height
22mm

Weight
0.1kg

1x DALI

Limiting
maximum 2x ECG DALI or 2x ECG DALI DT8 and 1 sensor PS3 DALI2 controllable

1x Bluetooth® interface

Feature
operating frequency 2.4..2.483GHz, +4dBm

1x switching contact

Feature
number of ECG's depends of the ECG type
