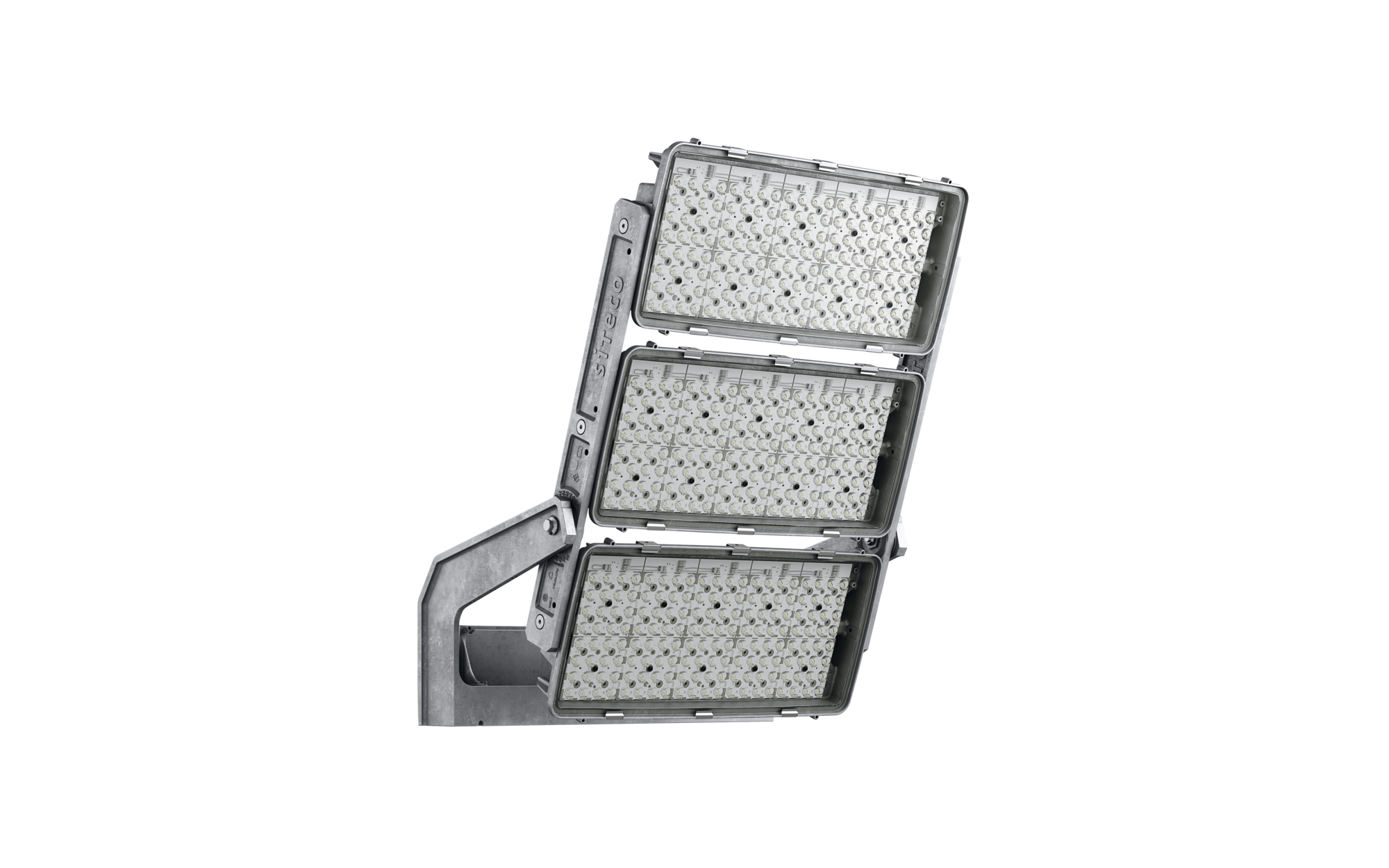

Floodlight FL 11 maxi pro, floodlight, RS12, rotationally symmetric distribution

Close
Order No.: 5XA779124M01AA
Remember articleRemember article

Article floodlight
Product name Floodlight FL 11 maxi pro
Lamp LED
Rated luminous flux 131650lm
Luminous efficacy 99lm/W
Colour temperature 5700K
Colour rendering CRI > 90
Rated input power 1335W
Service life 10000h (L96/B10) at AT = 10°C, 75000h (L80/B10) at AT = 10°C
Protection rating IP66
Impact resistance IK07
Weight 29.4kg

Floodlight FL 11 maxi pro floodlight; light control with lens of PMMA; cover panel of toughened safety glass, transparent; light distribution: RS12, rotationally symmetric direct distribution, LED; colour temperature: 5700K, rated luminous flux: 131.650lm, colour rendering: CRI > 90, light colour: 957; luminous efficacy: 99lm/W; brightness control: DALI 2 (1 DALI address); with terminal, 5-pole, max. 2.5mm², mains connection: 220..240V/380..400V AC, 50/60Hz, surge voltage resistance: line to ground: 10kV, dustproof LED module, LED unit replaceable without ESD environment, ECG replaceable separately, no afterglow with DALI off / DMX off command, dimming range 10..100%; 1335W floodlight with 3x LED unit of diecast aluminium, coated grey; length: 1.003mm / width: 651mm / height: 338mm; mounting bracket, of diecast aluminium, uncoated, natural, equipment: Power, protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); certification: CE, ENEC, VDE; ball protection: ball impact resistant, impact resistance: IK07; only for outdoor installations, rated ambient temperature 10°C, permissible operating ambient temperature: -40..+30°C, permissible storage temperature: -40..+85°Cpackaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type floodlight
Product name Floodlight FL 11 maxi pro
Order No. 5XA779124M01AA

Lighting technology

Light control lens of PMMA
Cover cover panel, transparent
Light distribution RS12
Symmetry rotationally symmetric
Light emission direct distribution

Lamps

Lamps with LED
Rated luminous flux 131650lm
Luminous efficacy 99lm/W
Colour temperature 5700K
Colour rendering index CRI > 90
Light colour 957
Rated input power 1335W

Operating device

Control DALI 2 (1 DALI address)

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK07
Temperature range (operation) -40..+30°C
Supplement only for outdoor installations, rated ambient temperature 10°C
Certification, designation CE, ENEC, VDE

Material, Colour

LED unit diecast aluminium, coated, grey
Quantity 3 piece
Colour specification grey
mounting bracket diecast aluminium, uncoated, natural
Colour specification natural
Cover cover panel of toughened safety glass

Mounting

Mounting method, mounting location surface-mounted, to supporting structure, to the ceiling, to the cross arm
Arrangement single arrangement
Supplement with mounting bracket

Electrical connection

Connection terminal, 5-pole, max. 2.5mm²
Nominal voltage 220..240V/380..400V, 50/60Hz, AC
Surge voltage resistance line to ground: 10kV

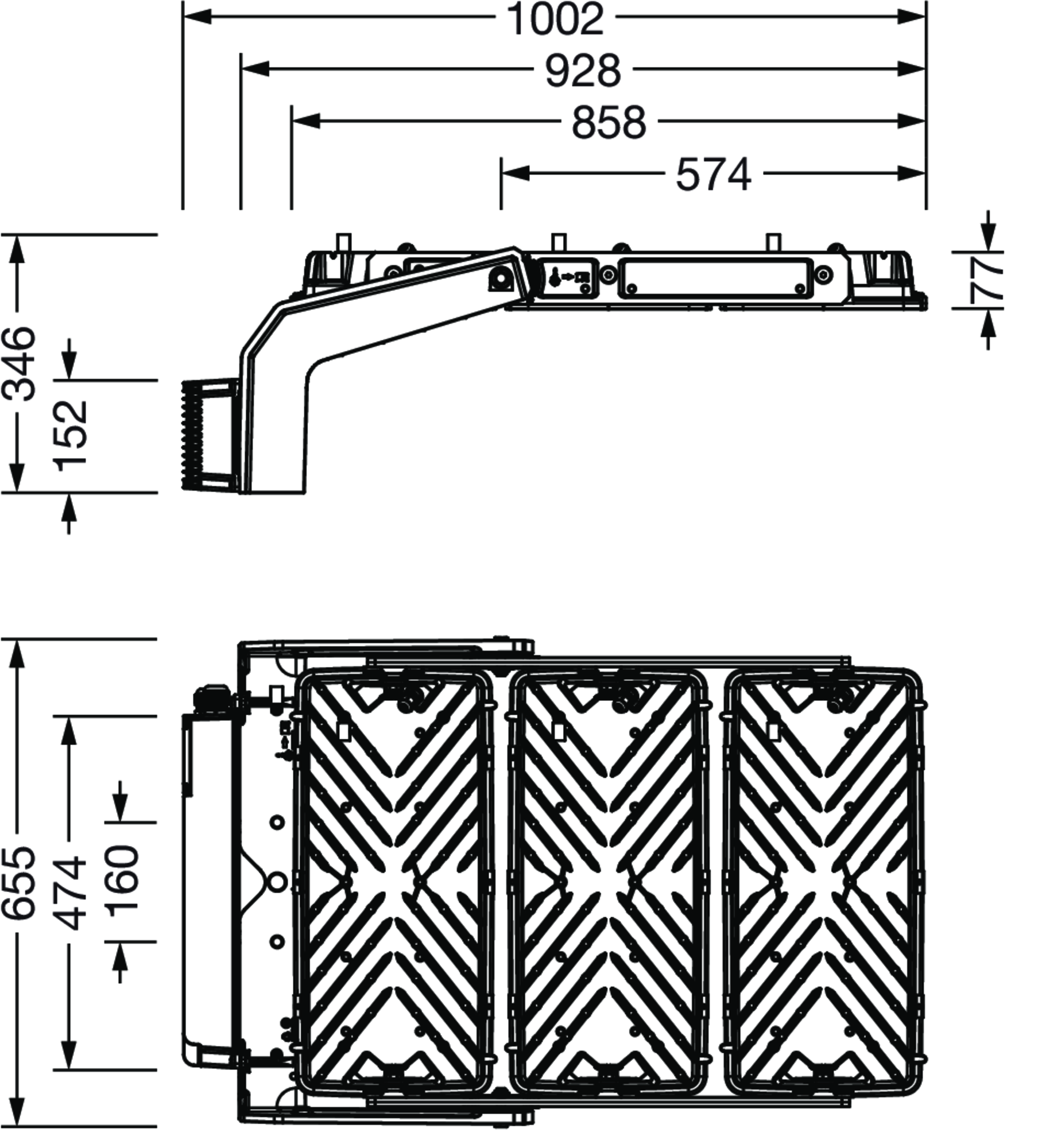

Dimensions, Weight

Length 1003mm
Width 651mm
Height 338mm
Weight 29.4kg

Light emission

Light emission 0% at 0° inclination

Service life

Rated service life 10000h (L96/B10) at AT = 10°C, 75000h (L80/B10) at AT = 10°C

Product type
floodlight

Product name
Floodlight FL 11 maxi pro

Order No.
5XA779124M01AA

Light control
lens of PMMA

Cover
cover panel, transparent

Light distribution
RS12

Symmetry
rotationally symmetric

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
131650lm

Luminous efficacy
99lm/W

Colour temperature
5700K

Colour rendering index
CRI > 90

Light colour
957

Rated input power
1335W

Control
DALI 2 (1 DALI address)

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK07

Temperature range (operation)
-40..+30°C

Supplement
only for outdoor installations, rated ambient temperature 10°C

Certification, designation
CE, ENEC, VDE

LED unit
diecast aluminium, coated, grey

Quantity
3 piece

Colour specification
grey

mounting bracket
diecast aluminium, uncoated, natural

Colour specification
natural

Cover
cover panel of toughened safety glass

Mounting method, mounting location
surface-mounted, to supporting structure, to the ceiling, to the cross arm

Arrangement
single arrangement

Supplement
with mounting bracket

Connection
terminal, 5-pole, max. 2.5mm²

Nominal voltage
220..240V/380..400V, 50/60Hz, AC

Surge voltage resistance
line to ground: 10kV

Length
1003mm

Width
651mm

Height
338mm

Weight
29.4kg

Light emission
0% at 0° inclination

Rated service life
10000h (L96/B10) at AT = 10°C, 75000h (L80/B10) at AT = 10°C

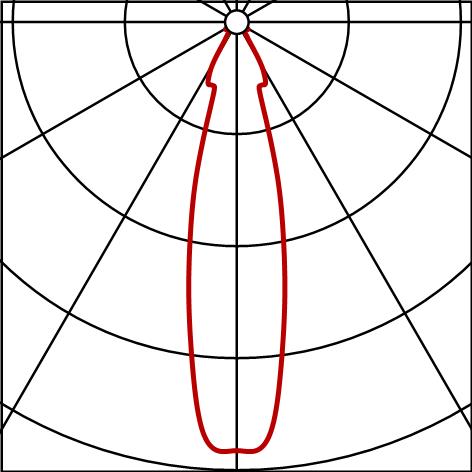

Photometric report / planning data

Floodlight FL 11
LED, direct rotationally symmetric distribution, surface-mounted, to supporting structure, to the ceiling, to the cross arm
Lamps: 1x LED
Order No.: 5XA779124M01AA

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
