5CL761603
Close
Article wall and ceiling luminaire

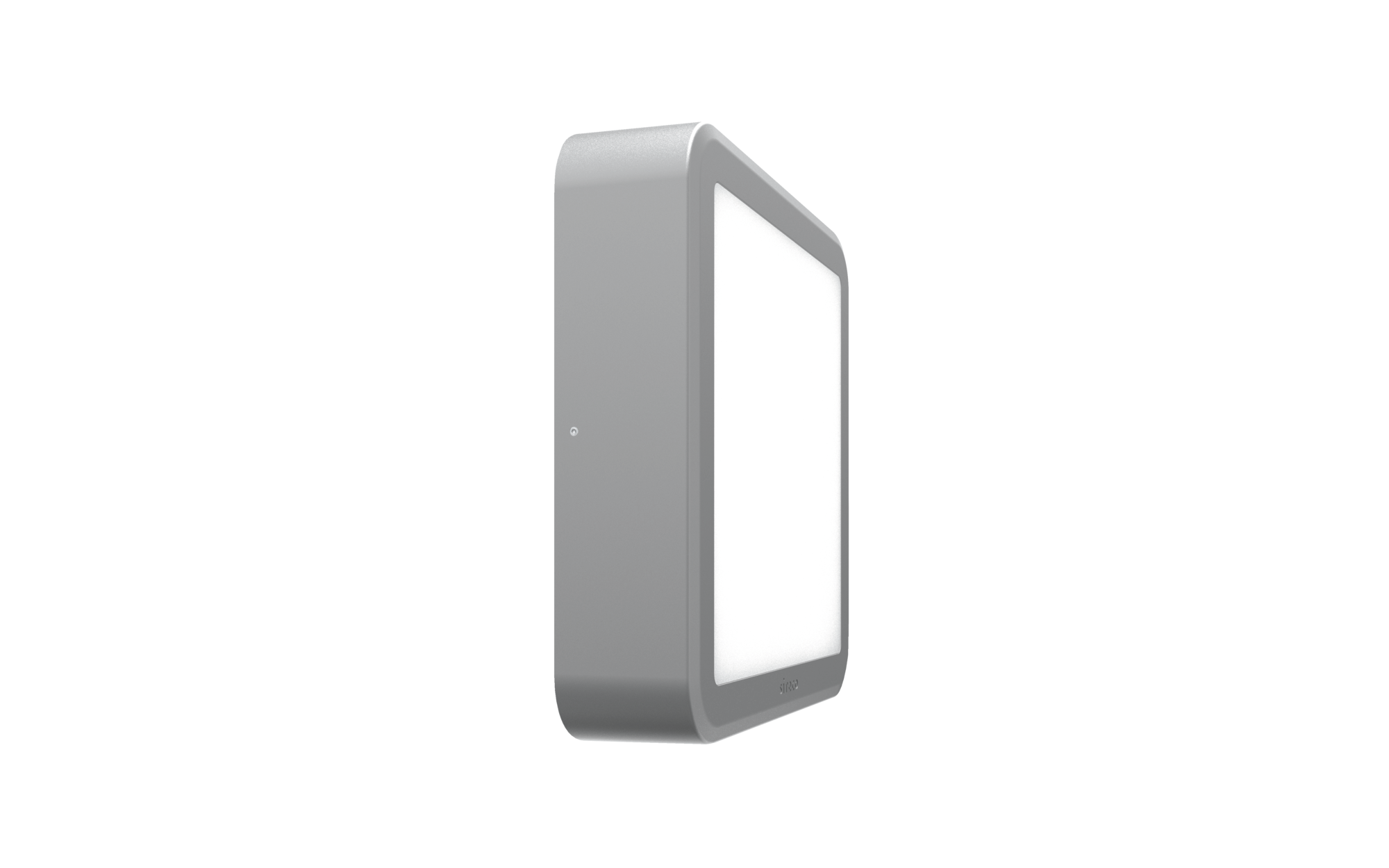

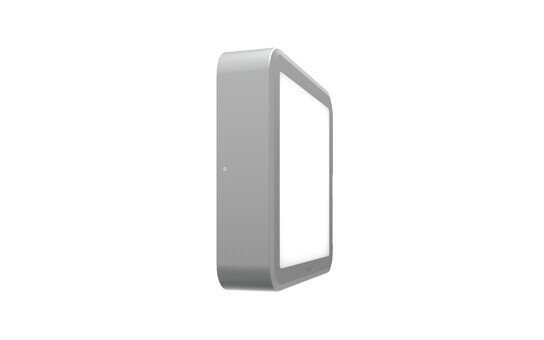

Product name CL 31 Bulkhead
Lamp LED
Rated luminous flux 1575lm
Luminous efficacy 105lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 15W
Service life 60000h (L80/B50) at AT = 25°C
Protection rating IP65
Impact resistance IK09
Weight 2.2kg

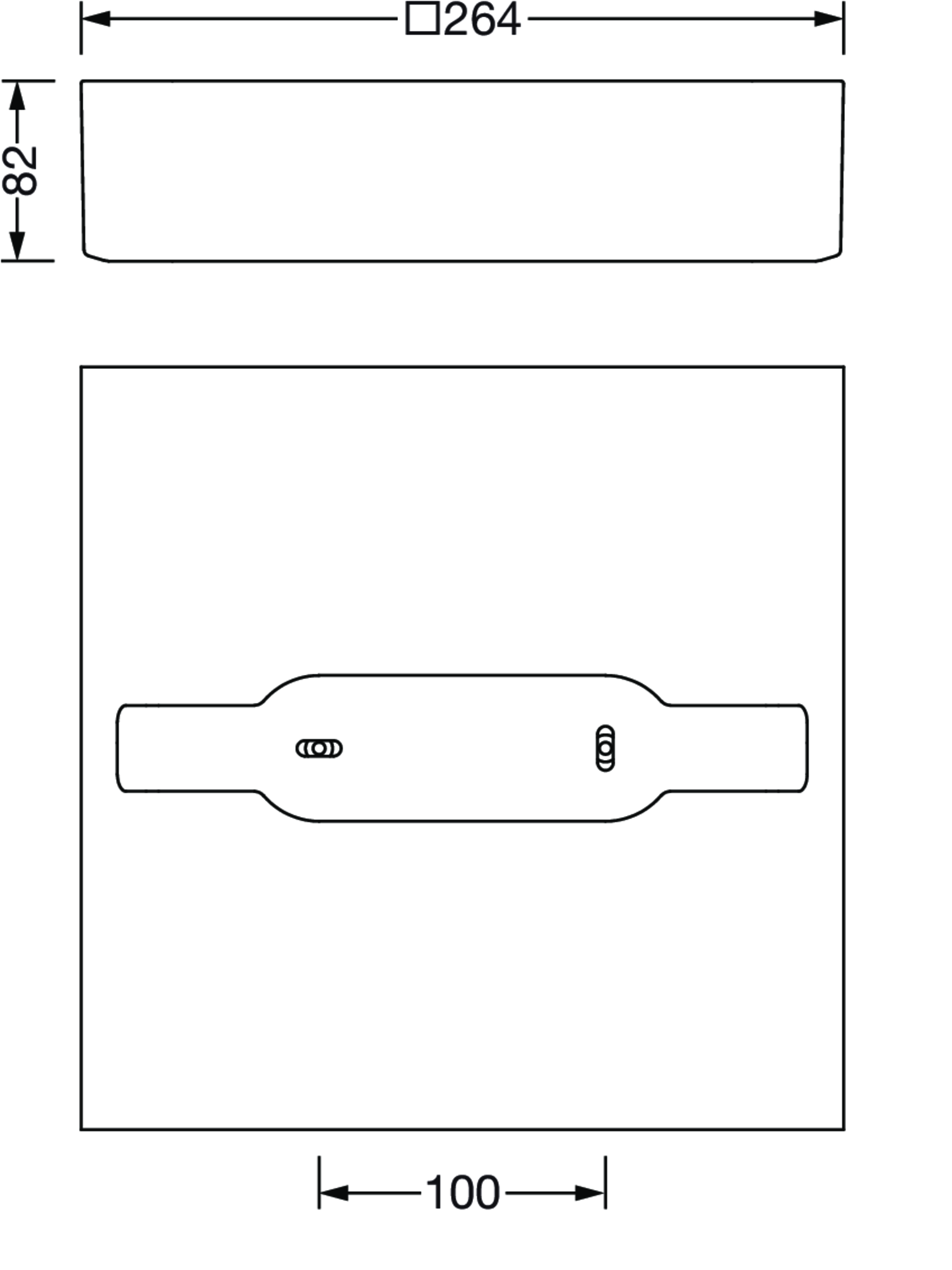

CL 31 Bulkhead, wall and ceiling luminaire, primary light control with reflector, primary optical cover: cover panel, of PC, opal, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 1.575lm, luminous efficacy: 105lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI, with terminal, 5-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 15W, luminaire housing, square, of aluminium, powder-coated, Siteco® metallic grey, length: 266mm, width: 266mm, height: 63mm, protection rating (complete): IP65, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, impact resistance: IK09, permissible operating ambient temperature for outdoor applications: -20..+50°C, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

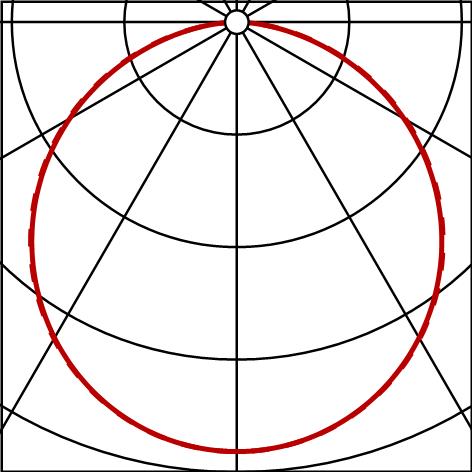

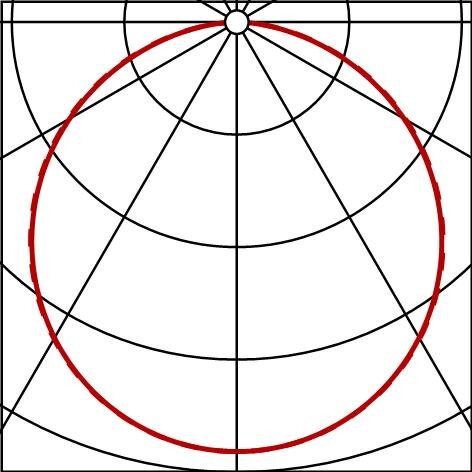

Photometric report / planning data
CL31Bkhd
square,1575lm830,DA
Lamps: 1x LED
Ordercode: 5CL761603
