Order No.: 5XA7670B1D00C
Remember articleRemember article

Article LED unit

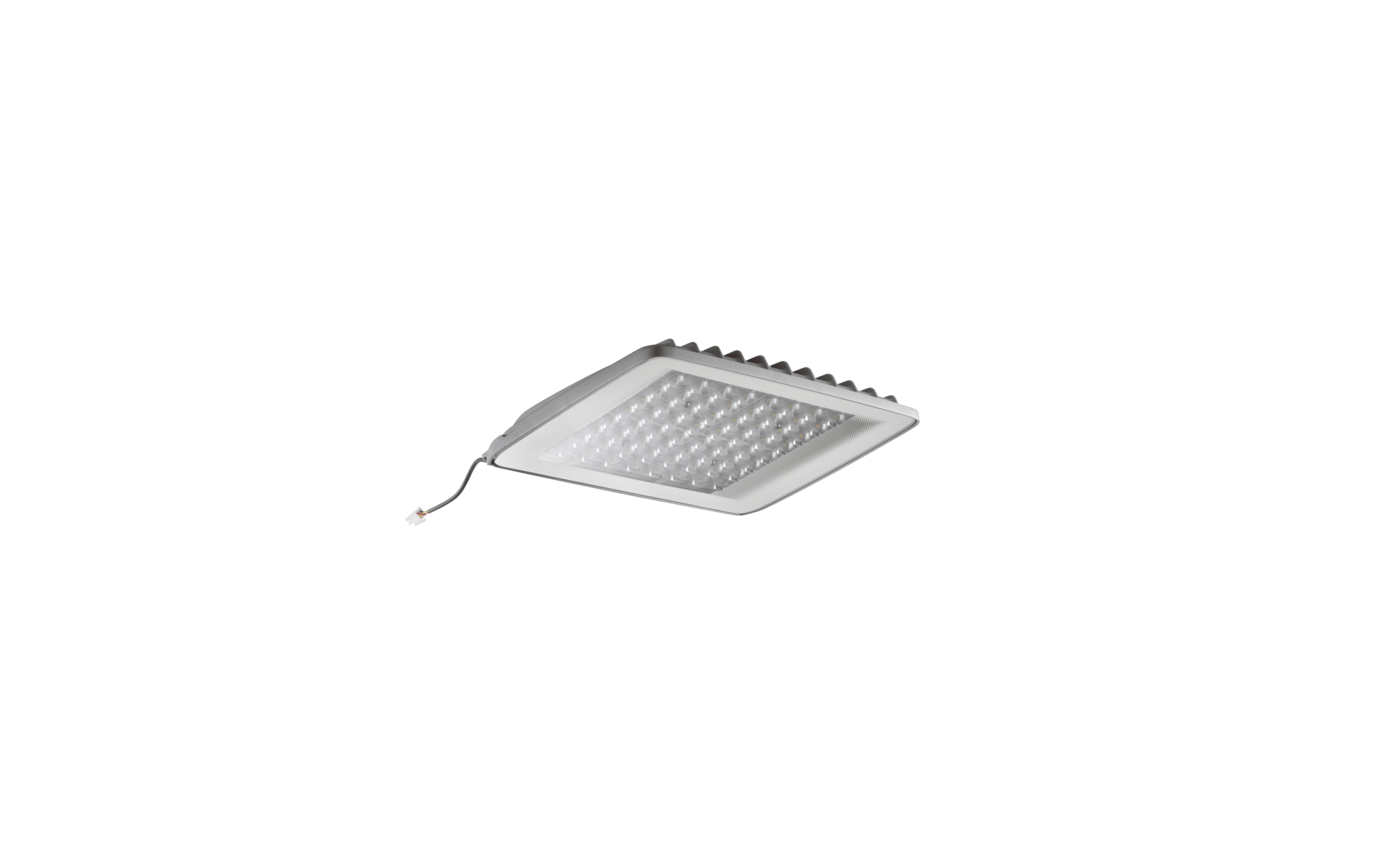

Product name Floodlight FL 20 mini
Lamp LED
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 51W
Protection rating IP66
Weight 2.5kg

Floodlight FL 20 mini, LED unit, primary light control with lens, of plastic, primary optical cover: cover panel, of toughened safety glass, transparent, light distribution: PL52, light emission: direct distribution, primary light characteristic: asymmetric, installation type: screw fastening, LED, High Power LED, light colour: 830, colour temperature: 3000K, with cable with plug, mains connection: 220..240V, AC, 50/60Hz, rated input power: 51W, LED unit, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), length: 291mm, width: 309mm, height: 51mm, protection rating (complete): IP66, certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type LED unit
Product name Floodlight FL 20 mini
Order No. 5XA7670B1D00C

Lighting technology

Light control lens of plastic
Cover cover panel, transparent
Light distribution PL52
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps High Power LED, LED
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
Rated input power 51W

Certificates, Standards

Protection rating IP66
Certification, designation CE

Material, Colour

LED unit diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)
Colour specification Siteco® metallic grey (DB 702S)
Cover cover panel of toughened safety glass

Mounting

Mounting method, mounting location screw fastening, in housing

Electrical connection

Connection cable with plug
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance 10kV 1.2/50µs

Dimensions, Weight

Length 291mm
Width 309mm
Height 51mm
Weight 2.5kg

Product type
LED unit

Product name
Floodlight FL 20 mini

Order No.
5XA7670B1D00C

Light control
lens of plastic

Cover
cover panel, transparent

Light distribution
PL52

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
High Power LED, LED

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

Rated input power
51W

Protection rating
IP66

Certification, designation
CE

LED unit
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)

Colour specification
Siteco® metallic grey (DB 702S)

Cover
cover panel of toughened safety glass

Mounting method, mounting location
screw fastening, in housing

Connection
cable with plug

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
10kV 1.2/50µs

Length
291mm

Width
309mm

Height
51mm

Weight
2.5kg
