Order No.: 5XA7694F000AD
Remember articleRemember article

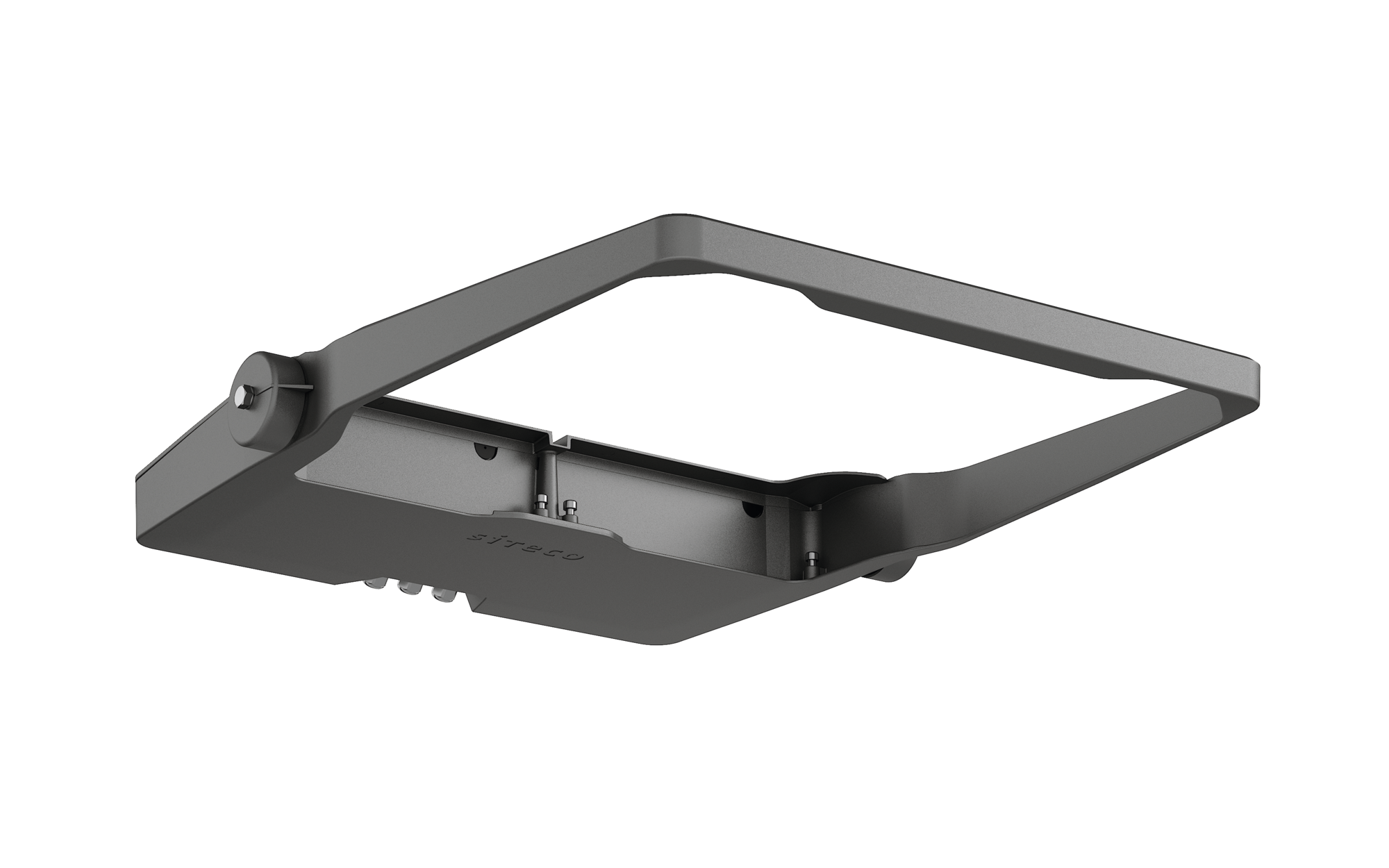

Article housing
Product name Floodlight FL 20 maxi Gen.4
Rated input power 948W
Protection rating IP66
Weight 13.9kg

Floodlight FL 20 maxi Gen.4, housing, primary light characteristic: asymmetric, control gear: DALI, control: overheat protection, electronic power reduction, with terminal, 5-pole, max. 2.5mm², mains connection: 220..240V, AC, rated input power: 948W, housing frame, housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), length: 975mm, width: 730mm, height: 115mm, DALI, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, ball protection: ball impact resistant, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type housing
Product name Floodlight FL 20 maxi Gen.4
Order No. 5XA7694F000AD

Lighting technology

Symmetry asymmetric distribution

Lamps

Rated input power 948W

Operating device

Control gear ECG Plus
Control DALI
Equipment overheat protection
Switching method electronic power reduction

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Certification, designation CE, ENEC, VDE

Material, Colour

housing frame diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)
housing diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)
Colour specification Siteco® metallic grey (DB 702S)

Electrical connection

Connection terminal, 5-pole, max. 2.5mm²
Nominal voltage 220..240V, AC
Surge voltage resistance 10kV 1.2/50µs

Dimensions, Weight

Length 975mm
Width 730mm
Height 115mm
Weight 13.9kg

Product type
housing

Product name
Floodlight FL 20 maxi Gen.4

Order No.
5XA7694F000AD

Symmetry
asymmetric distribution

Rated input power
948W

Control gear
ECG Plus

Control
DALI

Equipment
overheat protection

Switching method
electronic power reduction

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Certification, designation
CE, ENEC, VDE

housing frame
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)

housing
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)

Colour specification
Siteco® metallic grey (DB 702S)

Connection
terminal, 5-pole, max. 2.5mm²

Nominal voltage
220..240V, AC

Surge voltage resistance
10kV 1.2/50µs

Length
975mm

Width
730mm

Height
115mm

Weight
13.9kg
