Order No.: 5XA5405LF04FP
Remember articleRemember article

Article electrics components group

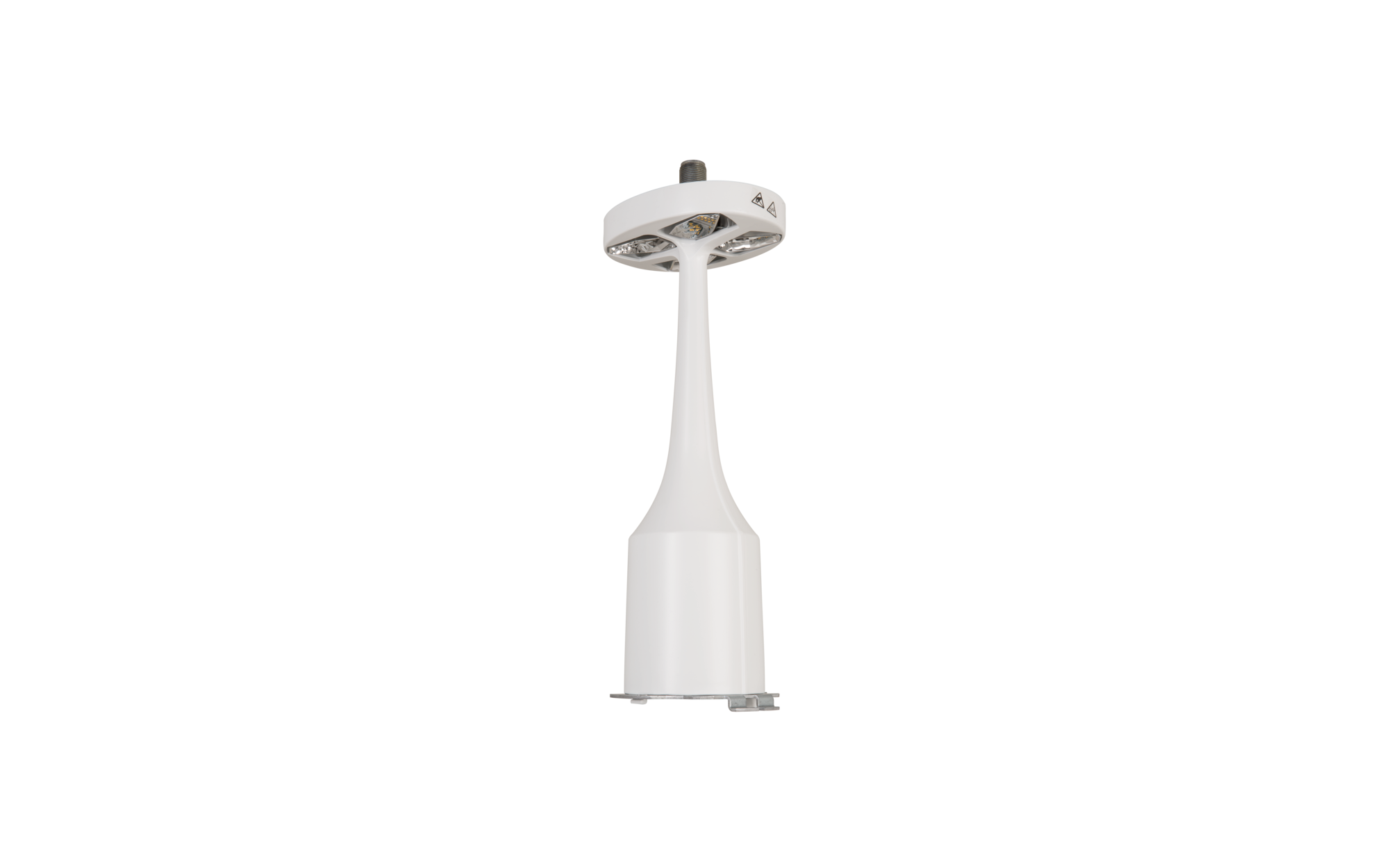

Product name Module 540 iQ
Lamp LED
Rated luminous flux 5150lm
Luminous efficacy 153lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Pnom begin service life 34
Pnom end service life 36
Pred at 50% lumin. flux 15
Weight 2.7kg

electrics components group, for Module 540 iQ, gear tray, control gear: ECG iQ, LED luminous flux: 5.150 lm, colour temperature: 4000K, with terminal, 6-pole, max. 2.5mm², mains connection: 230..240V, AC, 50/60Hz, start of lifetime: 34 W, end of service life: 36 W, reduction: 15 W, primary light characteristic: strongly asymmetric, width: 190 mm, height: 514mm, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE

Downloads

Technical product information
Data for applications

Product details

Key data

Product type electrics components group
Product name Module 540 iQ
Order No. 5XA5405LF04FP

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated, highly specular
Light distribution P1.0a
Beam angle extremely wide distribution
Symmetry strongly asymmetric

Lamps

Lamps with High Power LED, LED
Rated luminous flux 5150lm
Luminous efficacy 153lm/W
Colour temperature 4000K
Colour rendering index CRI > 70
Light colour 740
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)
Rated input power begin service life 34
Rated input power end service life 36
Rated input power at 50% lumin. flux 15

Operating device

Control gear ECG iQ
Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Insulation class insulation class II (safety insulation)
Certification, designation CE, ENEC, VDE

Material, Colour

Colour specification traffic white (RAL 9016)

Electrical connection

Connection terminal, 6-pole, max. 2.5mm²
Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

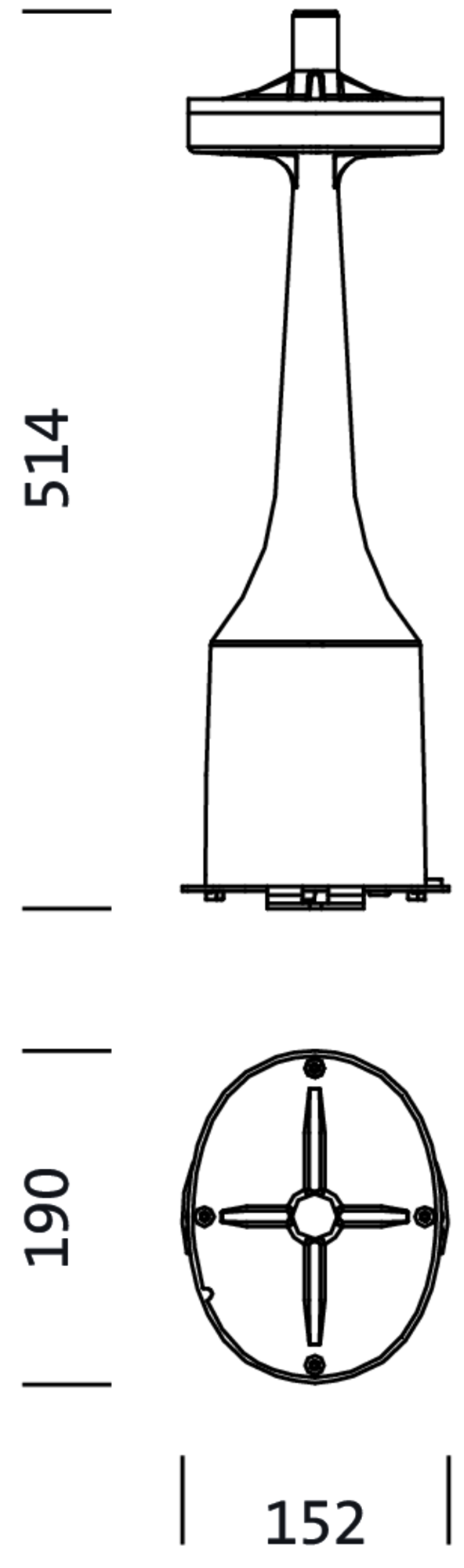

Dimensions, Weight

Width 190mm
Height 514mm
Weight 2.7kg
