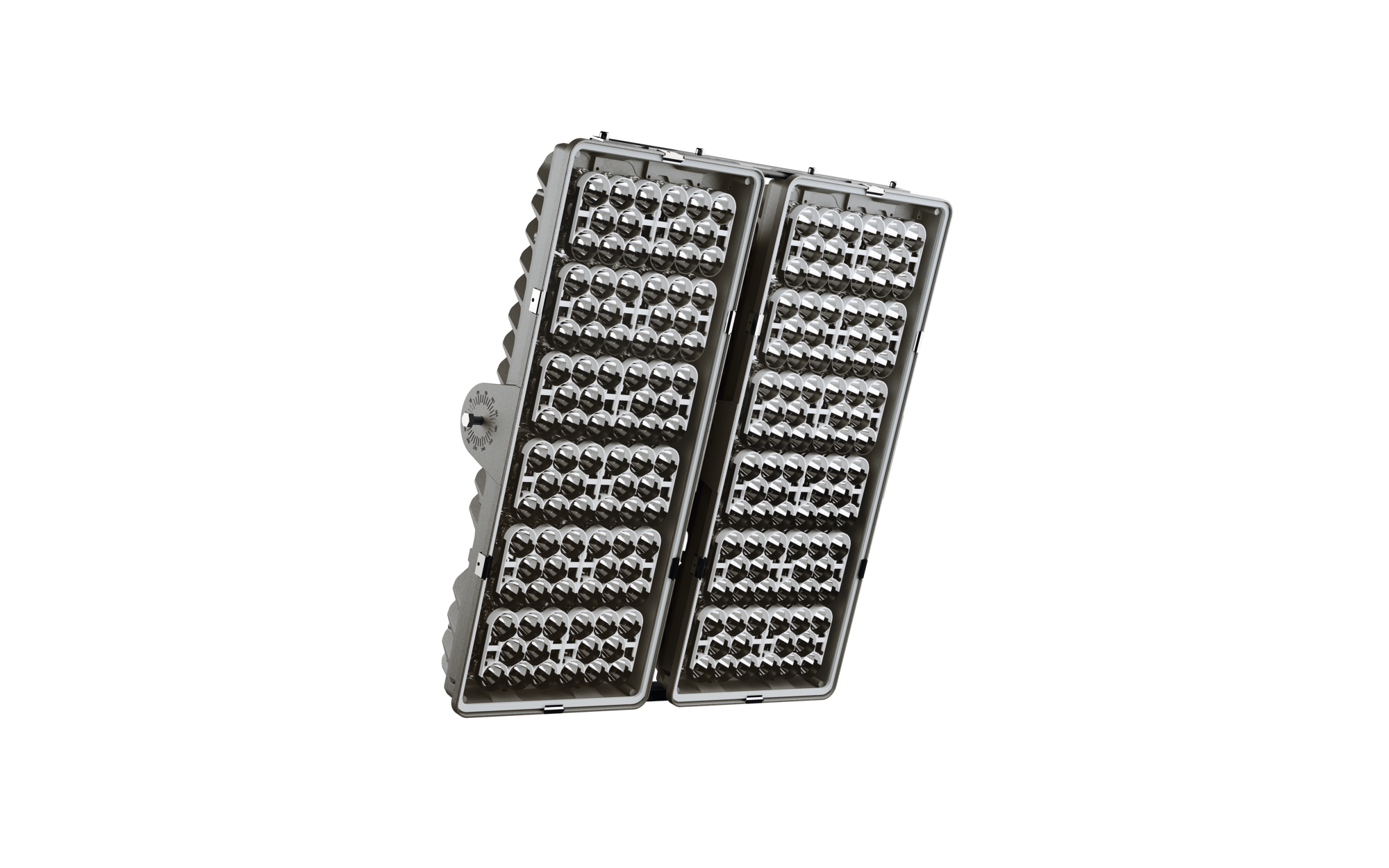

Sirius®, luminaire head, ECO-RS14, rotationally symmetric distribution
Close
Article luminaire head
Product name Sirius®
Lamp LED
Rated luminous flux 247135lm
Luminous efficacy 125lm/W
Colour temperature 5700K
Colour rendering CRI > 95
Rated input power 1974W
Service life 10000h (L97/B50) at AT = 25°C, 50000h (L90/B50) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 30.0kg

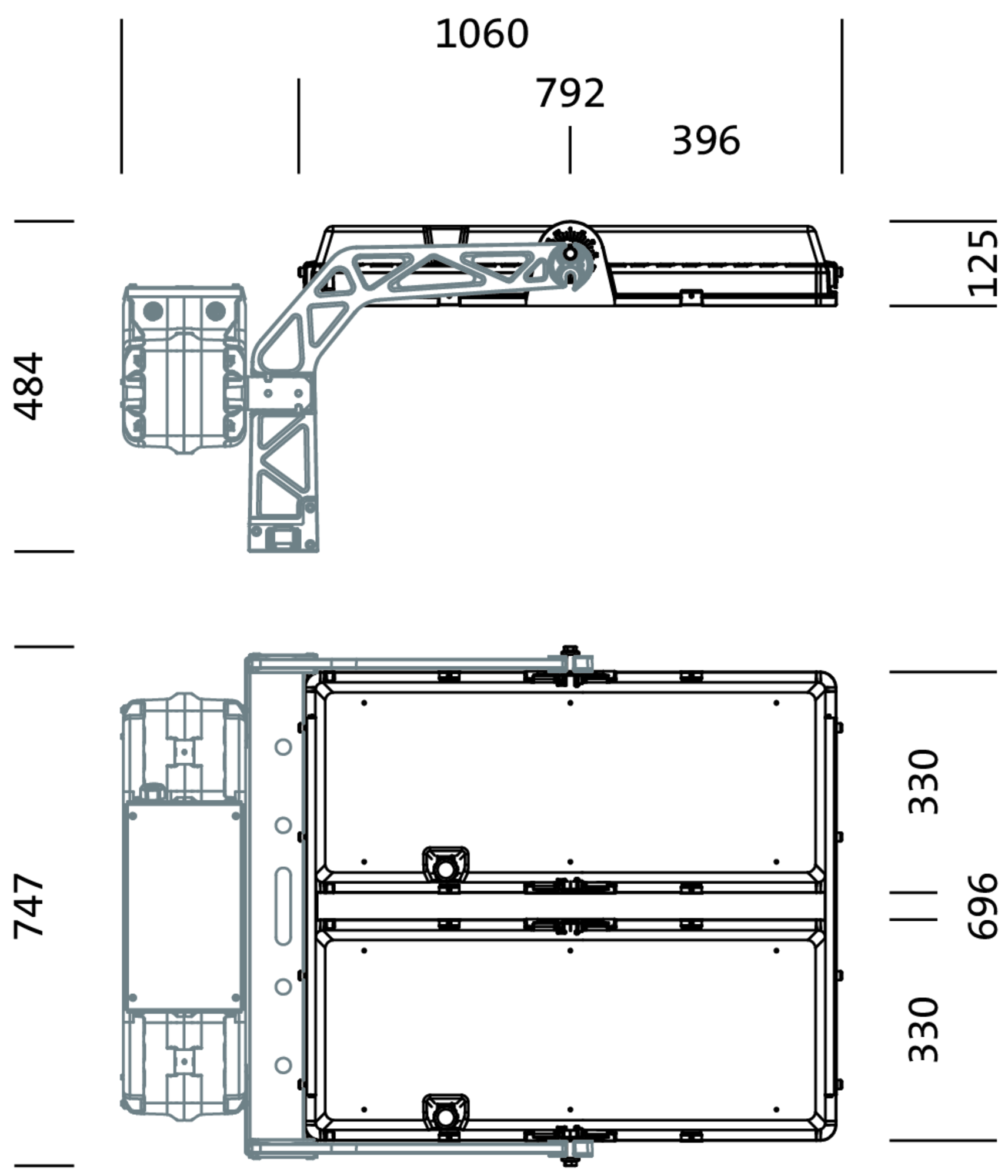

Sirius® luminaire head; light control with light control via reflectors with silver coating of plastic, silver coated; cover of toughened safety glass, transparent; light distribution: ECO-RS14, rotationally symmetric direct distribution, LED; (High Power LED), colour temperature: 5700K, rated luminous flux: 247.135lm, colour rendering: CRI > 95, Television Lighting Consistency Index: TLCI >= 96, light colour: 957; luminous efficacy: 125lm/W; with 2x connection cable with system connection, cable length: 1,2m; dimming range 5..100% per LED segment, LED unit replaceable without ESD environment, dustproof LED module; 1974W luminaire head with 2x LED unit of diecast aluminium, powder-coated Siteco® metallic grey (DB 702S); length: 792mm / width: 696mm / height: 126mm; 4 separate LED segments per floodlight, each switchable and dimmable separately, protection rating (complete): IP66; insulation class (complete): insulation class I (protective earthing); certification: CE, ENEC; impact resistance: IK10; permissible operating ambient temperature: in outdoor areas: -30..+55°C, inner permissible operating ambient temperature: in indoor areas: -30..+45°C, permissible storage temperature: -20..+50°Cpackaging unit: 1 piece
