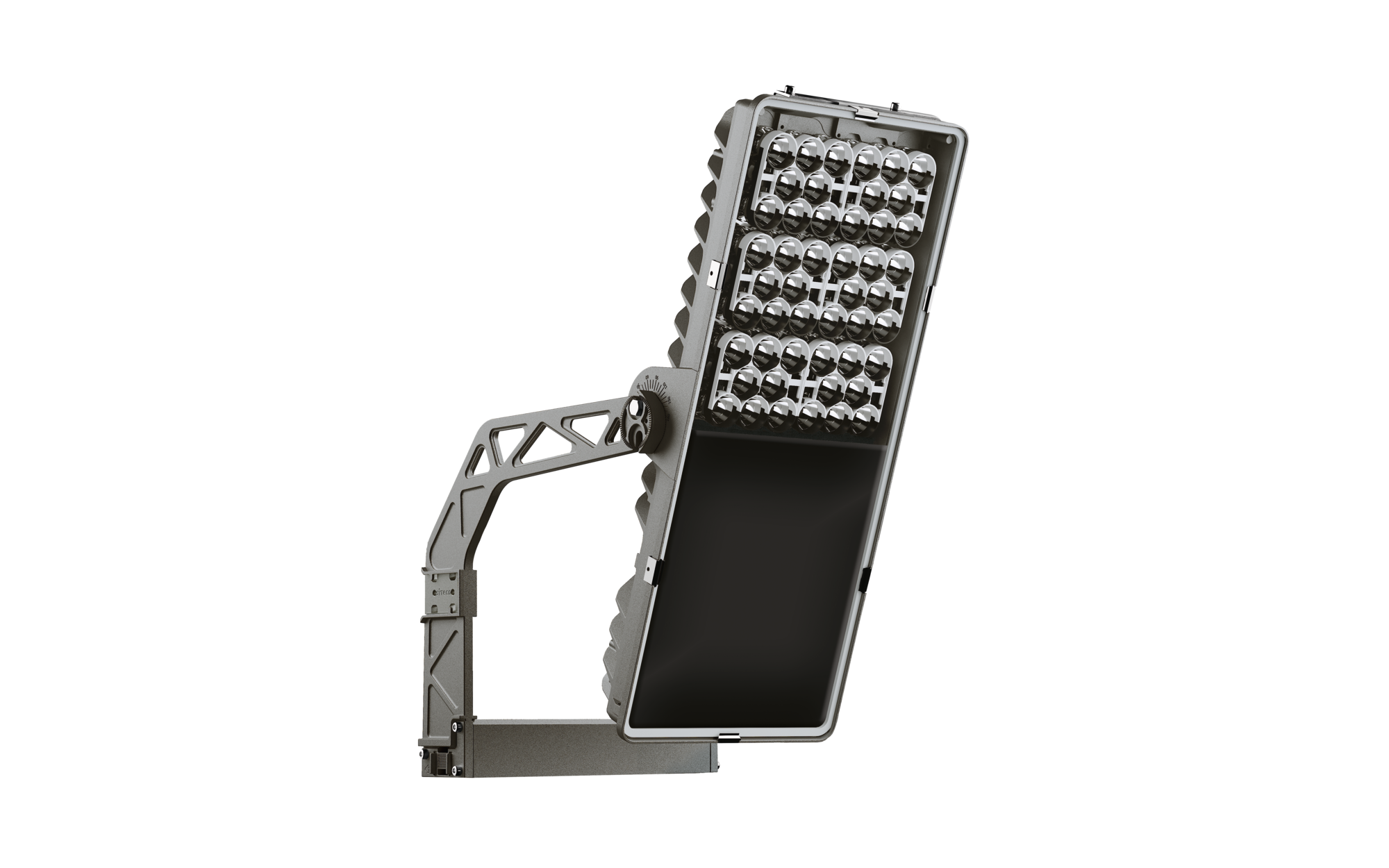

Sirius® 500, luminaire head, AREA-PL52, asymmetric distribution
Close
Article luminaire head
Product name Sirius® 500
Lamp LED
Rated luminous flux 59785lm
Luminous efficacy 121lm/W
Colour temperature 5000K
Colour rendering CRI > 90
Rated input power 493W
Service life 10000h (L97/B50) at AT = 25°C, 50000h (L90/B50) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 16.0kg

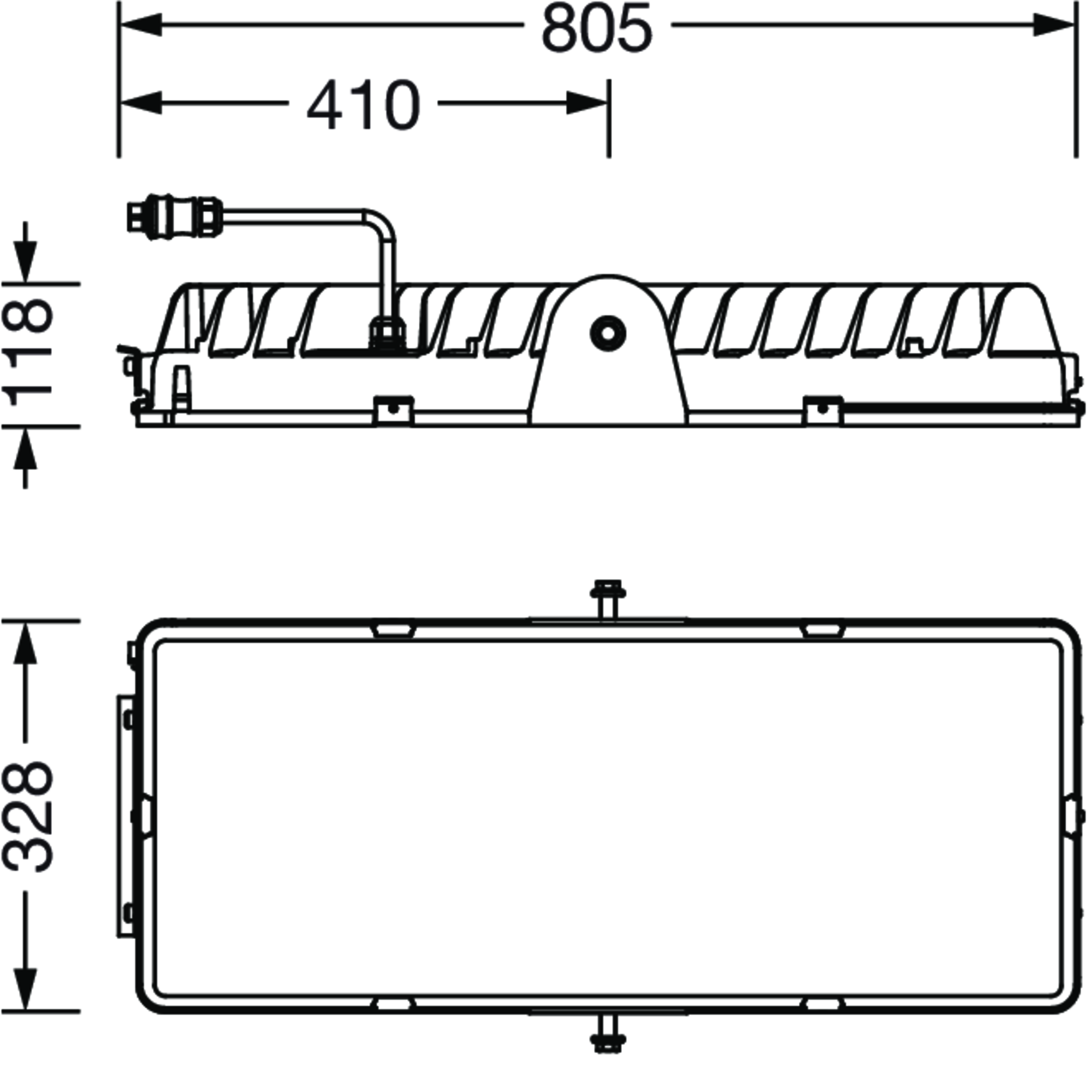

Sirius® 500, luminaire head, primary light control with lens, of glass, primary optical cover: cover, of toughened safety glass, transparent, light distribution: AREA-PL52, light emission: direct distribution, primary light characteristic: asymmetric, installation type: screw fastening, LED, High Power LED, rated luminous flux: 59.785lm, luminous efficacy: 121lm/W, light colour: 950, colour temperature: 5000K, with cable with plug, mains connection: 220..240V, AC, 50/60Hz, cable length: 1,5m, rated input power: 493W, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), length: 792mm, width: 330mm, height: 126mm, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, impact resistance: IK10, permissible operating ambient temperature for outdoor applications: in indoor areas: -30..+45°C, permissible storage temperature: -40..+80°C, packaging unit: 1 piece
