Ordercode: 59MX1BW000WA

Article lighting management components
Product name Silica® 21
Protection rating IP20
Weight 999.0kg

Silica® 21, sensor module PR3-S, slave,local controlinstallation type: slip-in mounting, installation location: to the luminaire, of extruded aluminium section, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, 1 x PIR movement sensor, 1 x light sensor, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details


Key data

System family SITECO Connect Wireless
Product type lighting management components
Product name Silica® 21
Order No. 59MX1BW000WA


Control


Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+40°C
Certification, designation CE


Material, Colour

housing extruded aluminium section, anodised, traffic white (RAL 9016)
Colour specification traffic white (RAL 9016)


Mounting

Mounting method, mounting location slip-in mounting, to the luminaire

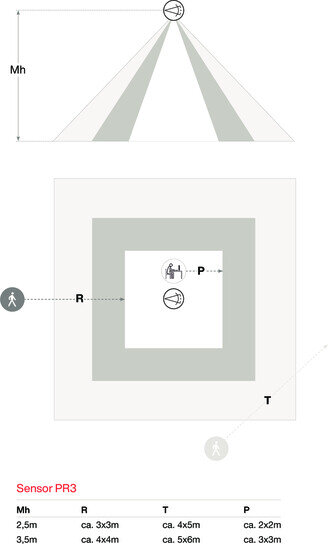

Mounting height 2.5..5m
Supplement for recessed luminaires

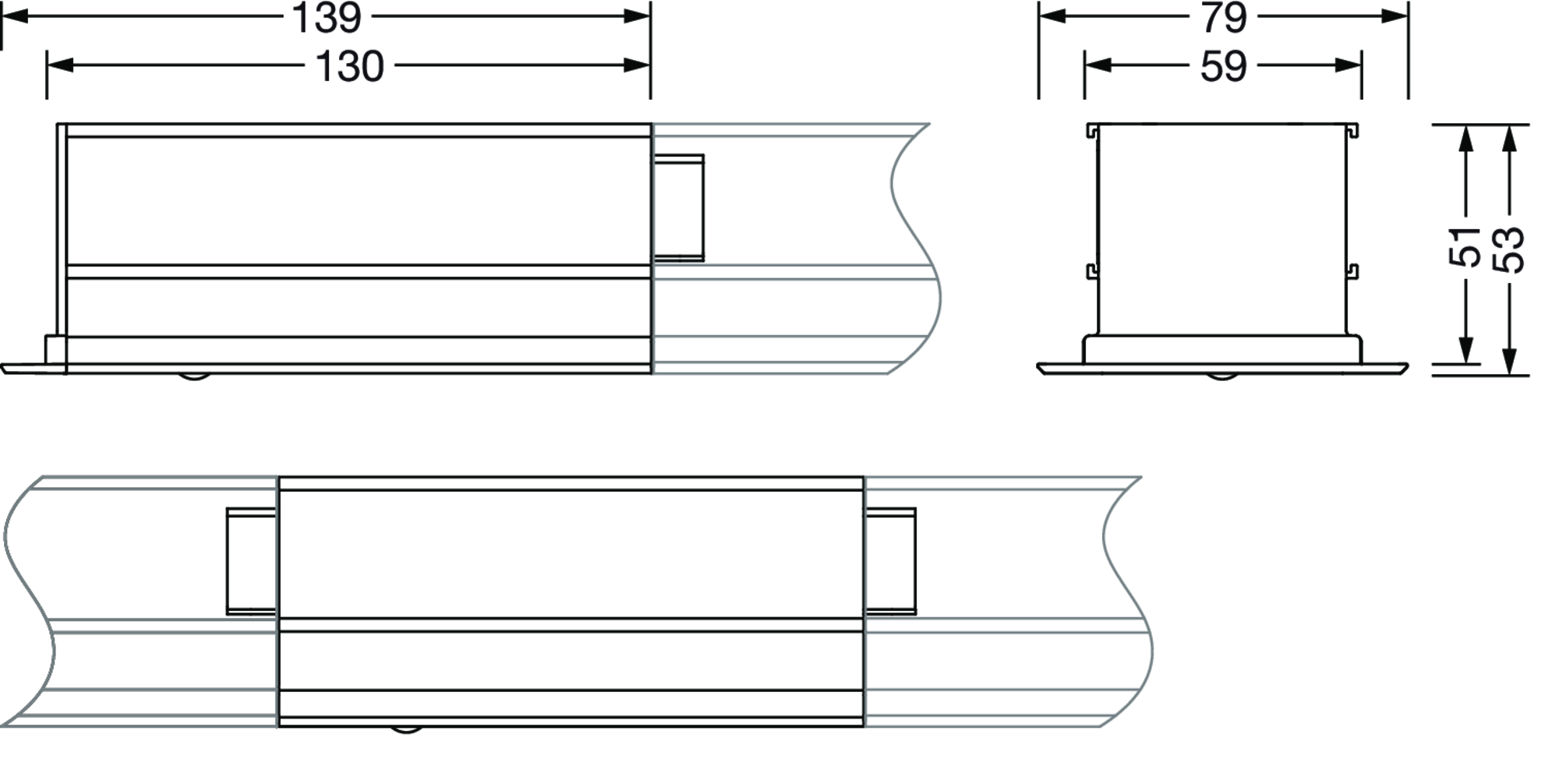

Dimensions, Weight

Width 77mm
Height 55mm
Weight 999.0kg


Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)

System family
SITECO Connect Wireless

Product type
lighting management components

Product name
Silica® 21

Order No.
59MX1BW000WA

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+40°C

Certification, designation
CE

housing
extruded aluminium section, anodised, traffic white (RAL 9016)

Colour specification
traffic white (RAL 9016)

Mounting method, mounting location
slip-in mounting, to the luminaire

Mounting height
2.5..5m

Supplement
for recessed luminaires

Width
77mm

Height
55mm

Weight
999.0kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)
